Self-Diagnostic System: Notes

Self-diagnostic system detects and indicates a fault in various inputs and outputs of electronic control. Warning light ("Check Engine" light) on the instrument panel indicates occurrence of a fault or trouble. Light Emitting Diode (LED) in control unit also indicates a trouble code. See Fig 1 and Fig 2 .

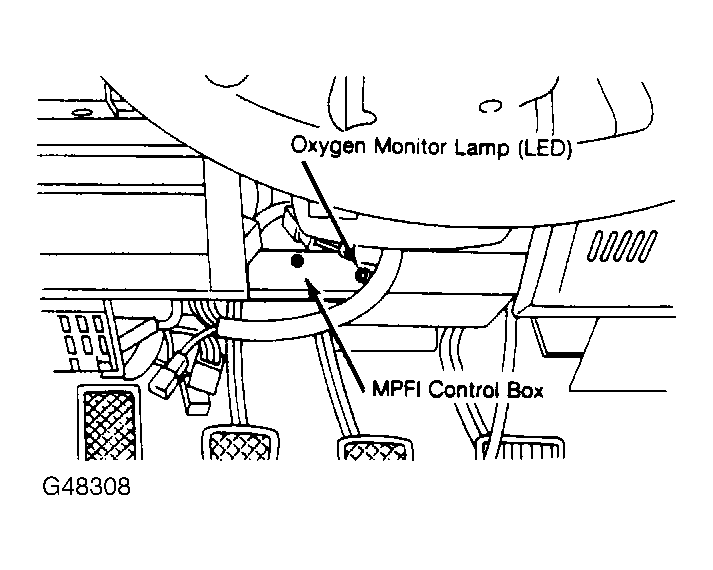

Fig 1: Oxygen Sensor Monitor Lamp Location (Exc. XT Model)

Courtesy of SUBARU OF AMERICA, INC.

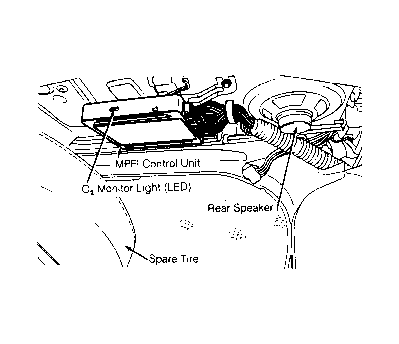

Fig 2: Oxygen Sensor Monitor Lamp Location (XT Model)

Courtesy of SUBARU OF AMERICA, INC.
