Code 15 - CFC System

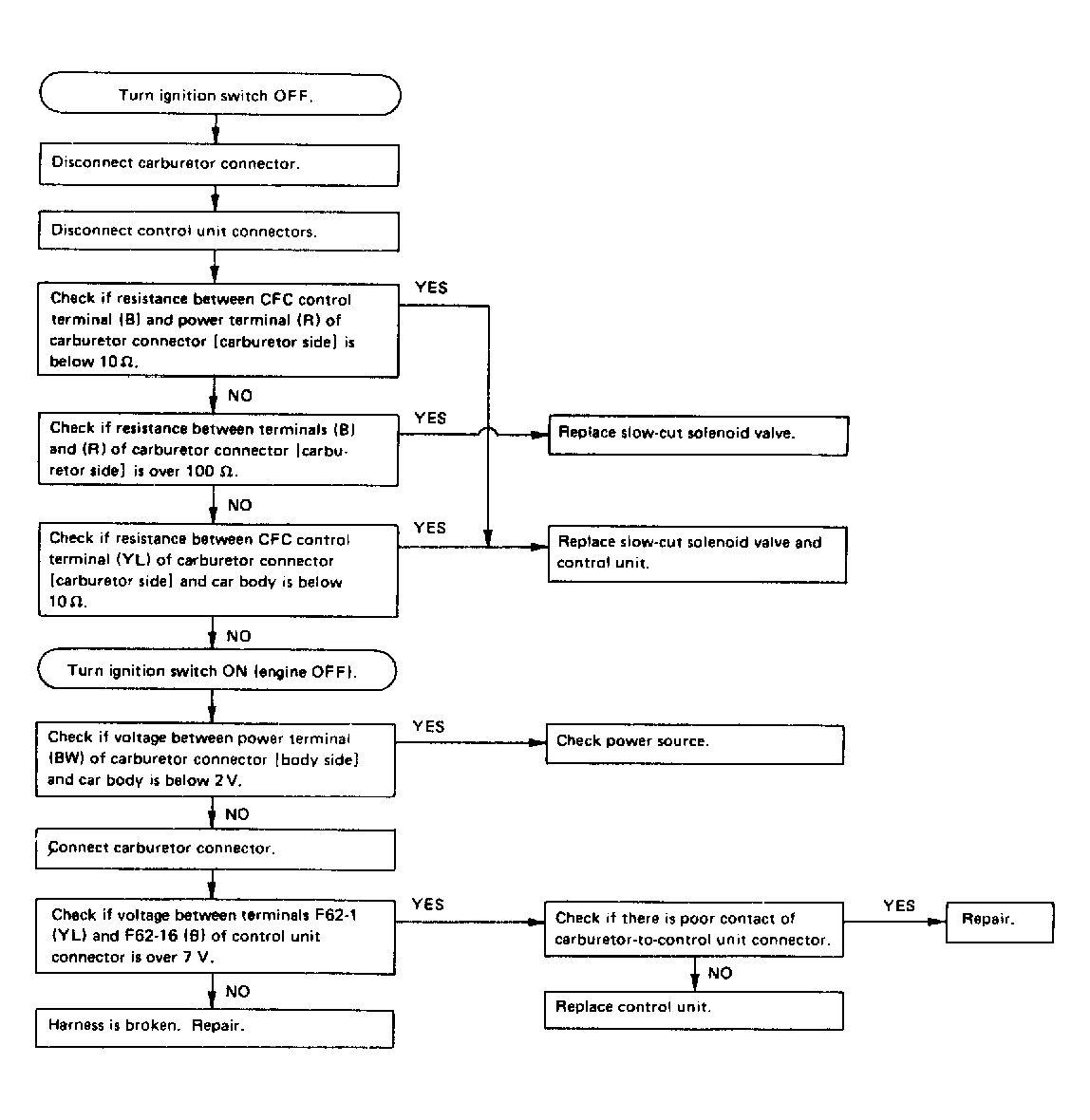

Fig 1: Flow Chart - Trouble Code 15: CFC System
G121922Courtesy of SUBARU OF AMERICA

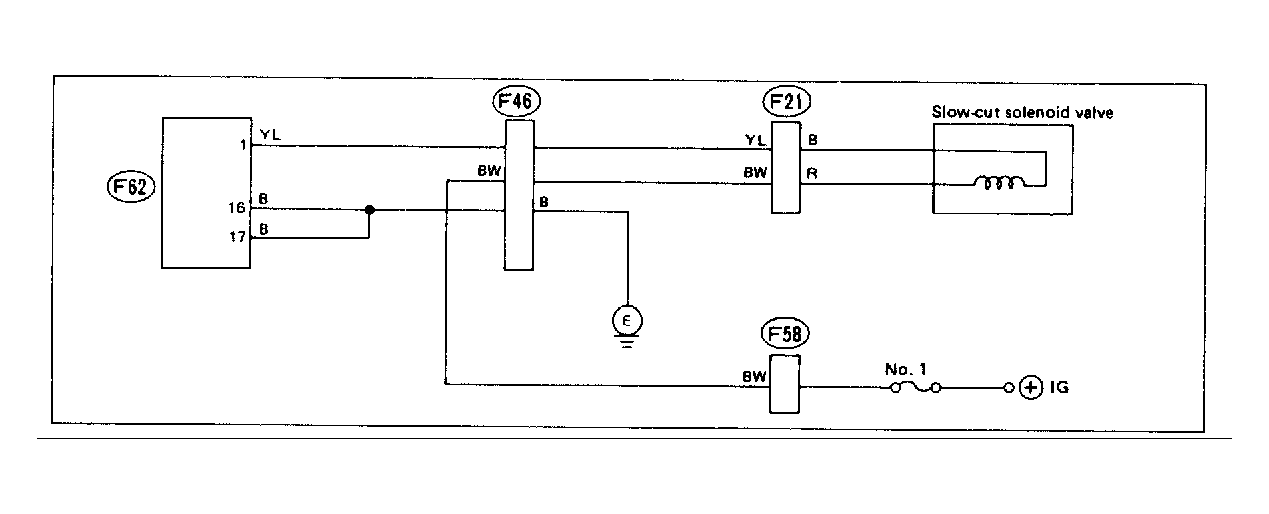

Fig 2: Wiring Schematic - Trouble Code 15: CFC System
G118316Courtesy of SUBARU OF AMERICA
