Supply Circuit Tests Ground & Control Unit Power

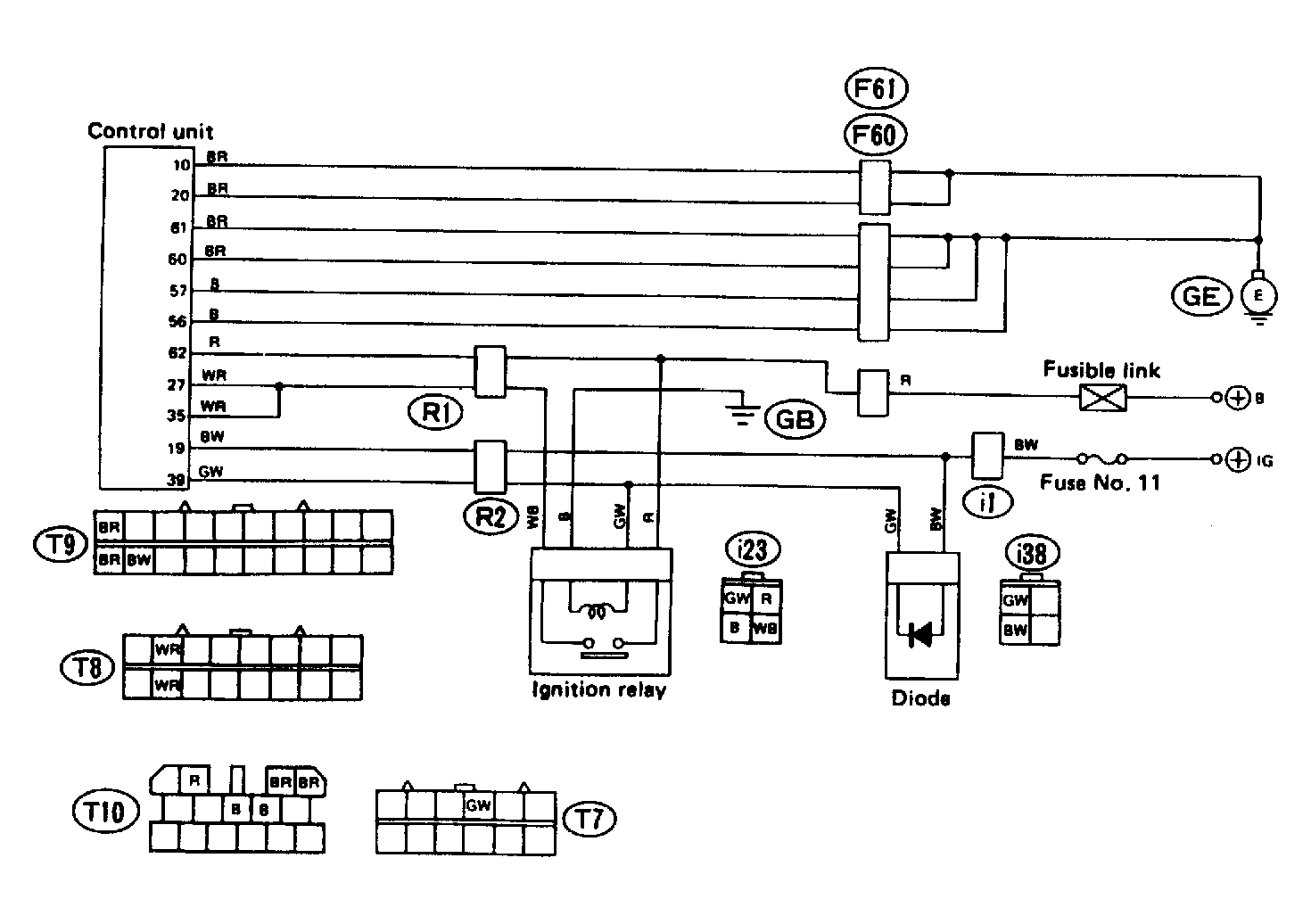

Fig 1: MPFI Ground & Control Unit Power Supply Test (Exc. XT)

Courtesy of SUBARU OF AMERICA, INC.

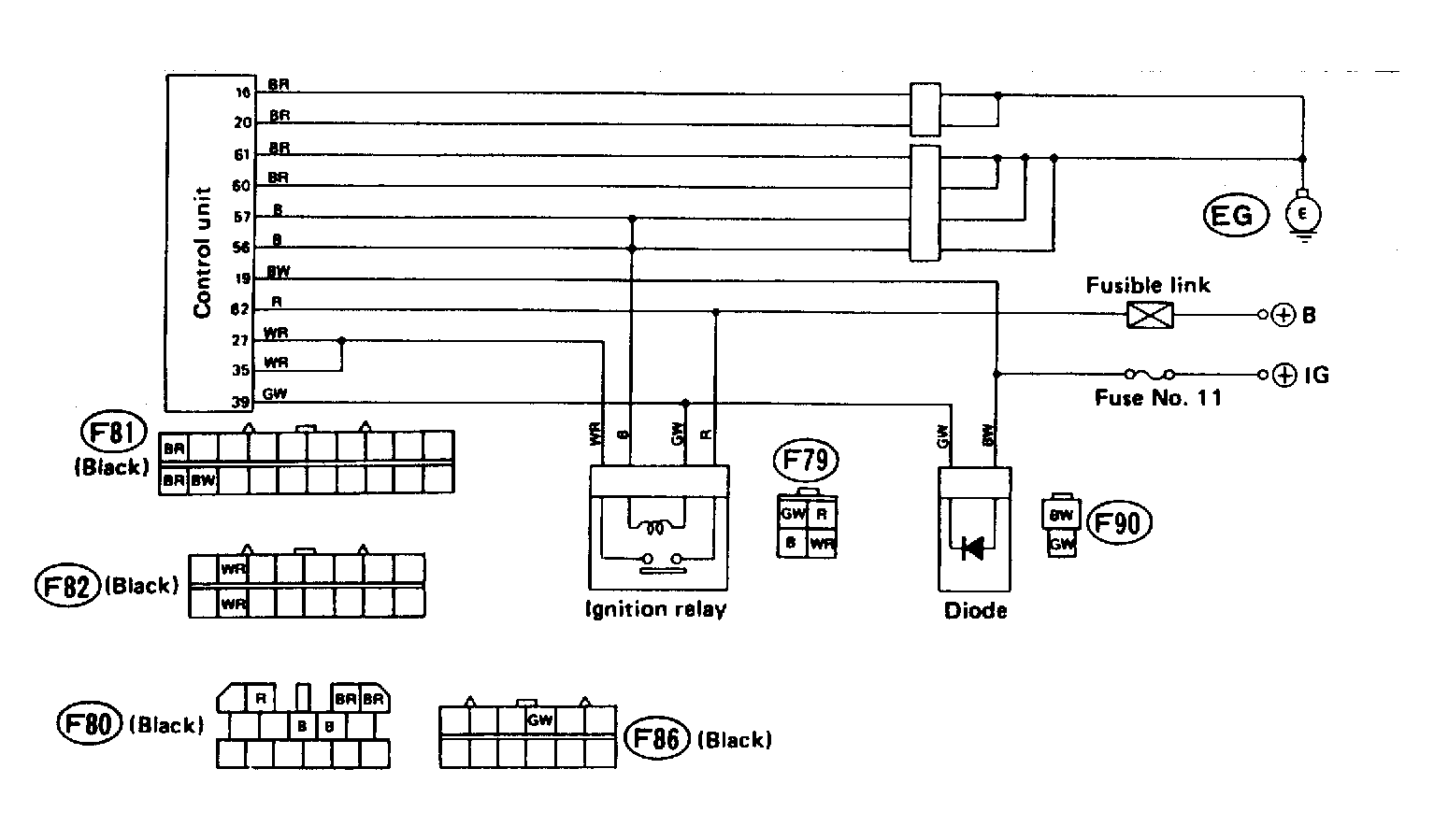

Fig 2: MPFI Ground & Control Unit Power Supply Test (XT)

Courtesy of SUBARU OF AMERICA, INC.

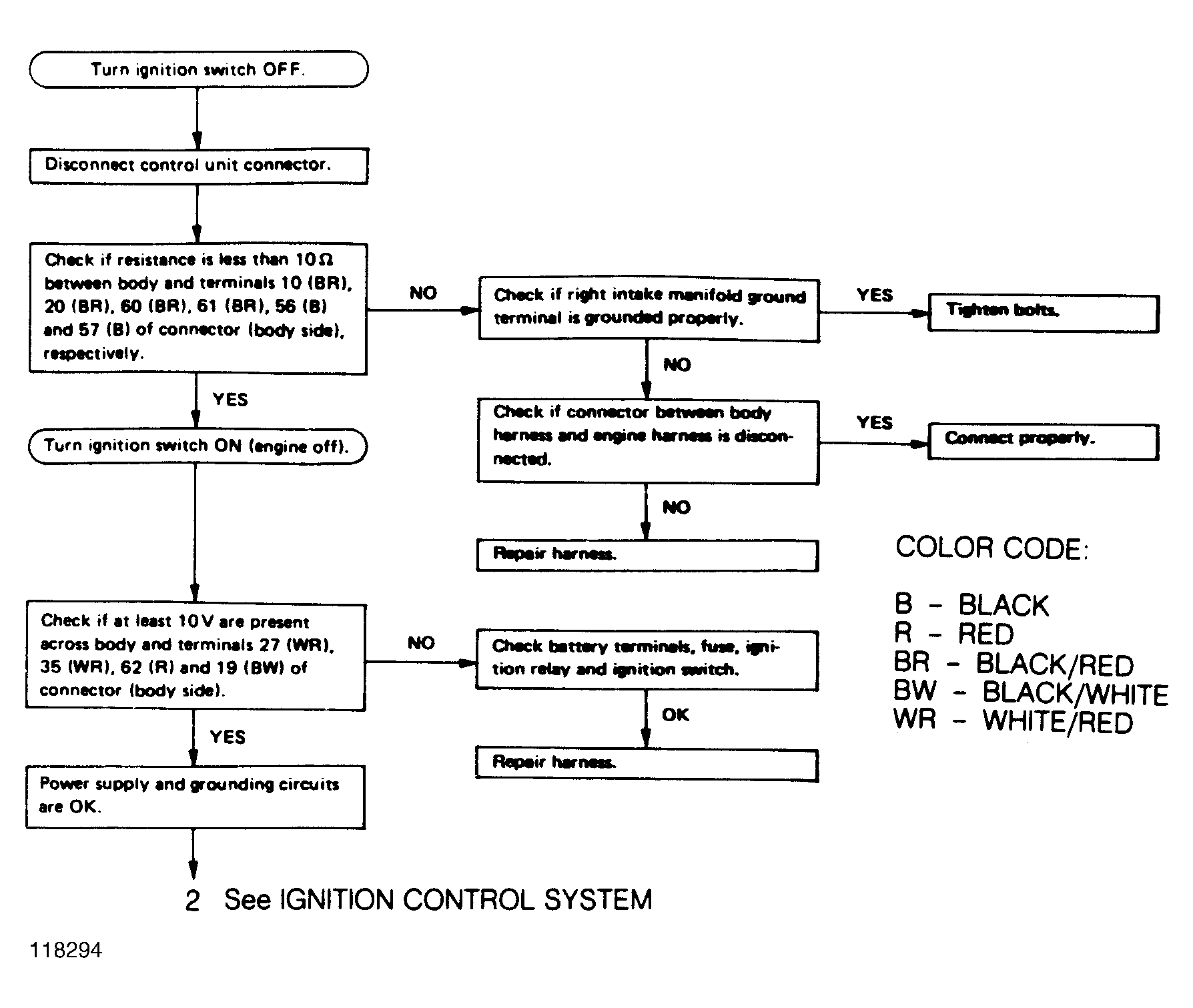

Fig 3: MPFI Ground & Control Unit Power Supply Test - Flow Chart

Courtesy of SUBARU OF AMERICA, INC.

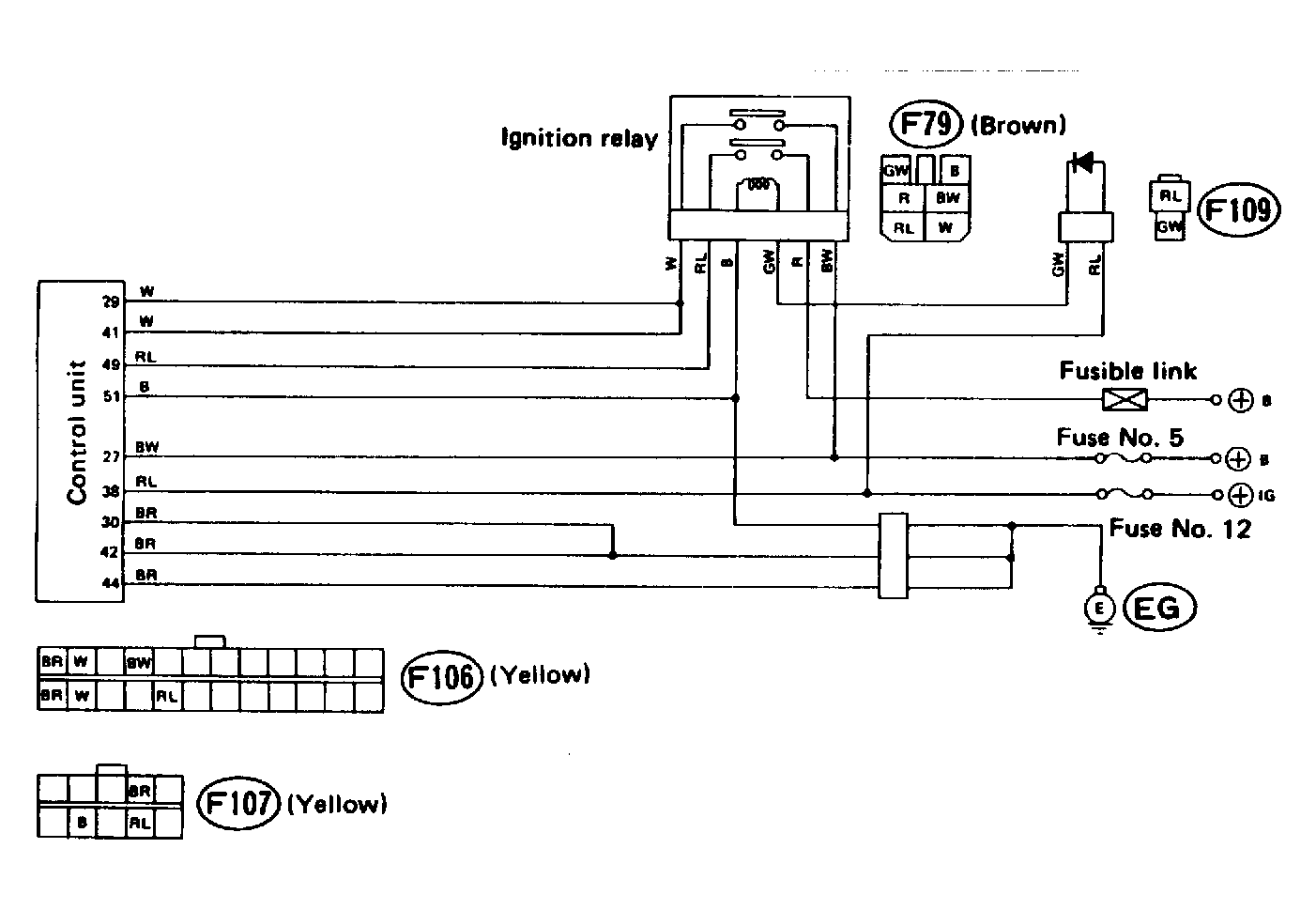

Fig 4: SPFI Ground & Control Unit Power Supply Test - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

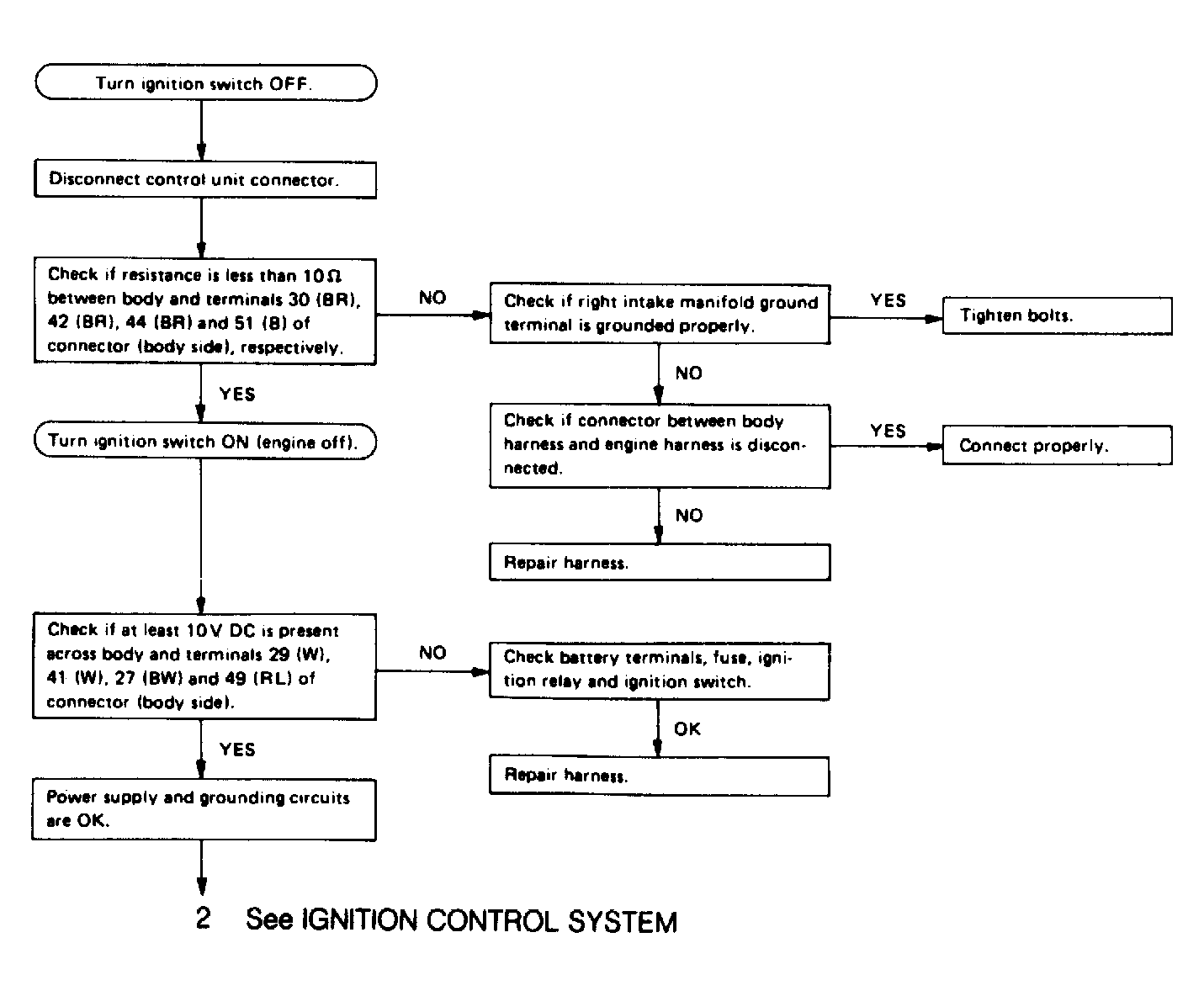

Fig 5: SPFI Ground & Control Unit Power Supply Test - Flow Chart

Courtesy of SUBARU OF AMERICA, INC.
