Code 11

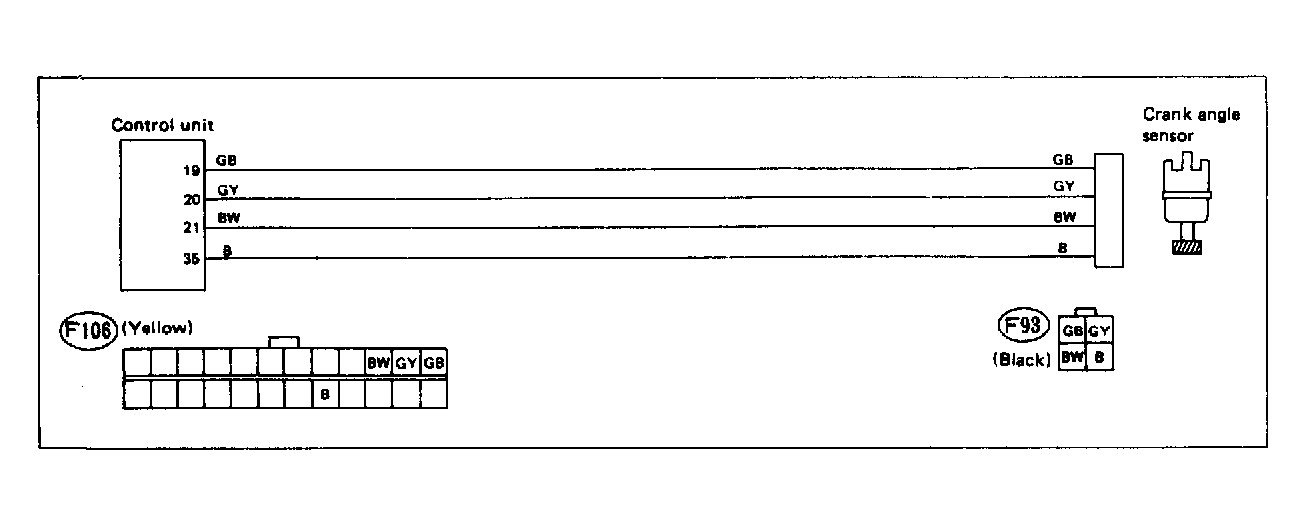

Fig 1: Trouble Code 11: Crank Angle Sensor - Wiring Diagram
G118349Courtesy of SUBARU OF AMERICA, INC

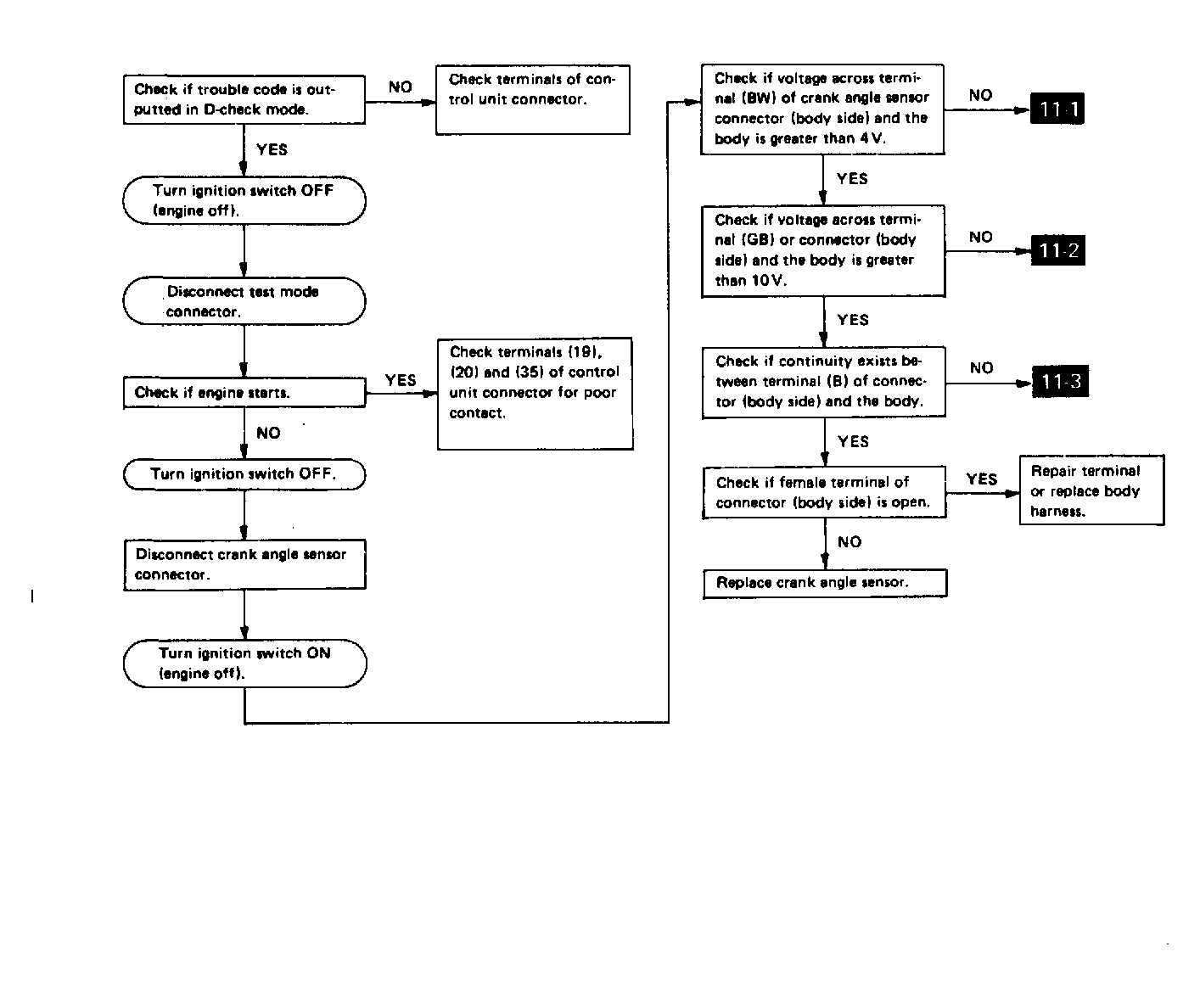

Fig 2: Trouble Code 11: Crank Angle Sensor - Flow Chart (1 of 2)
G121883Courtesy of SUBARU OF AMERICA, INC

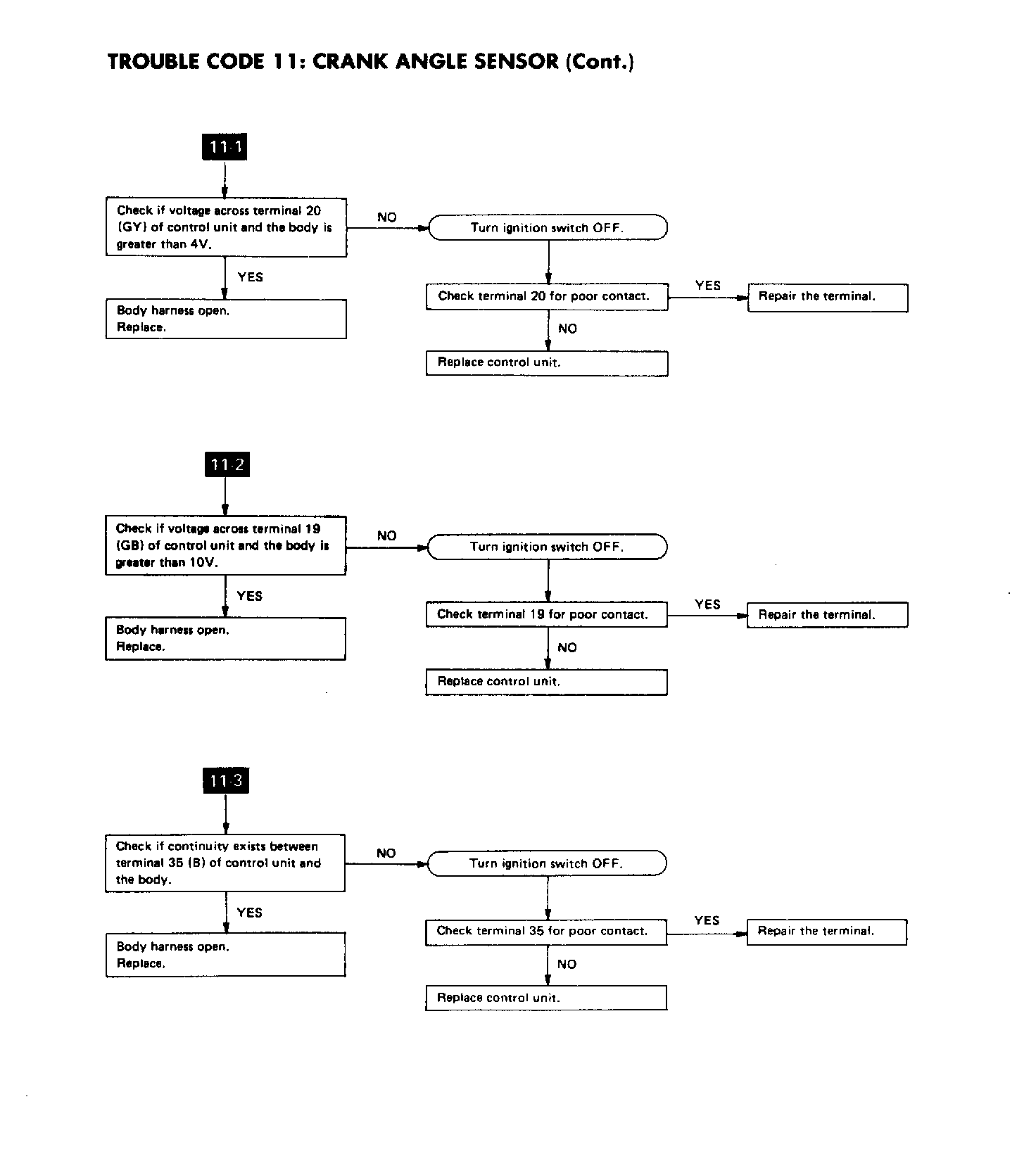

Fig 3: Trouble Code 11: Crank Angle Sensor - Flow Chart (2 of 2)
G118350Courtesy of SUBARU OF AMERICA, INC
