Code 12

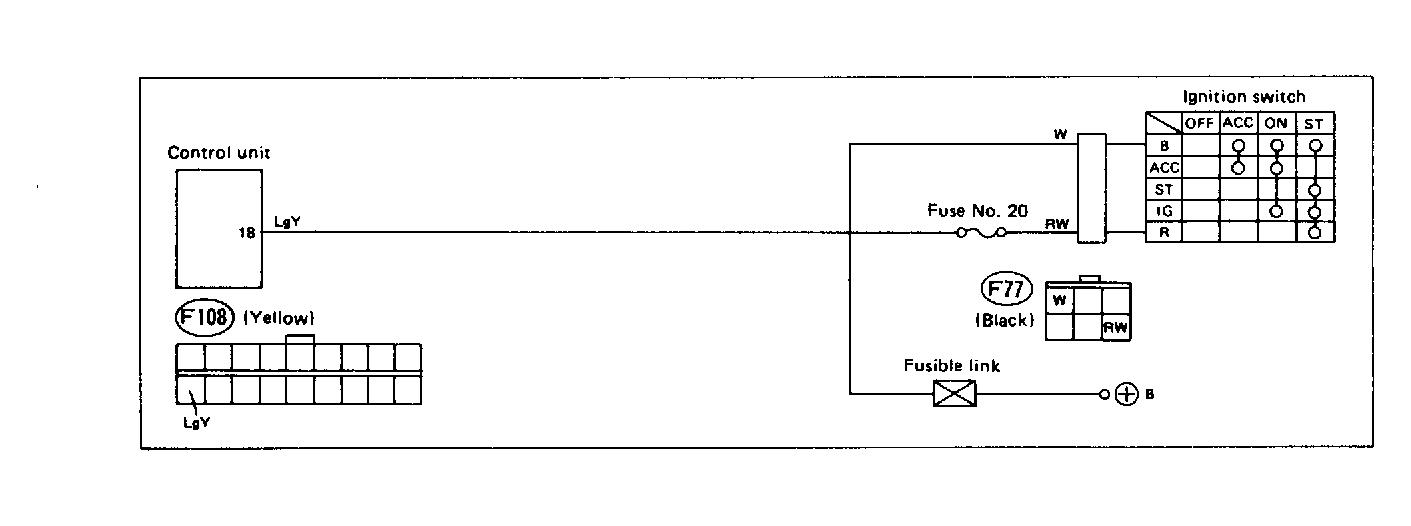

Fig 1: Trouble Code 12: Starter Switch - Wiring Diagram
G118351Courtesy of SUBARU OF AMERICA, INC

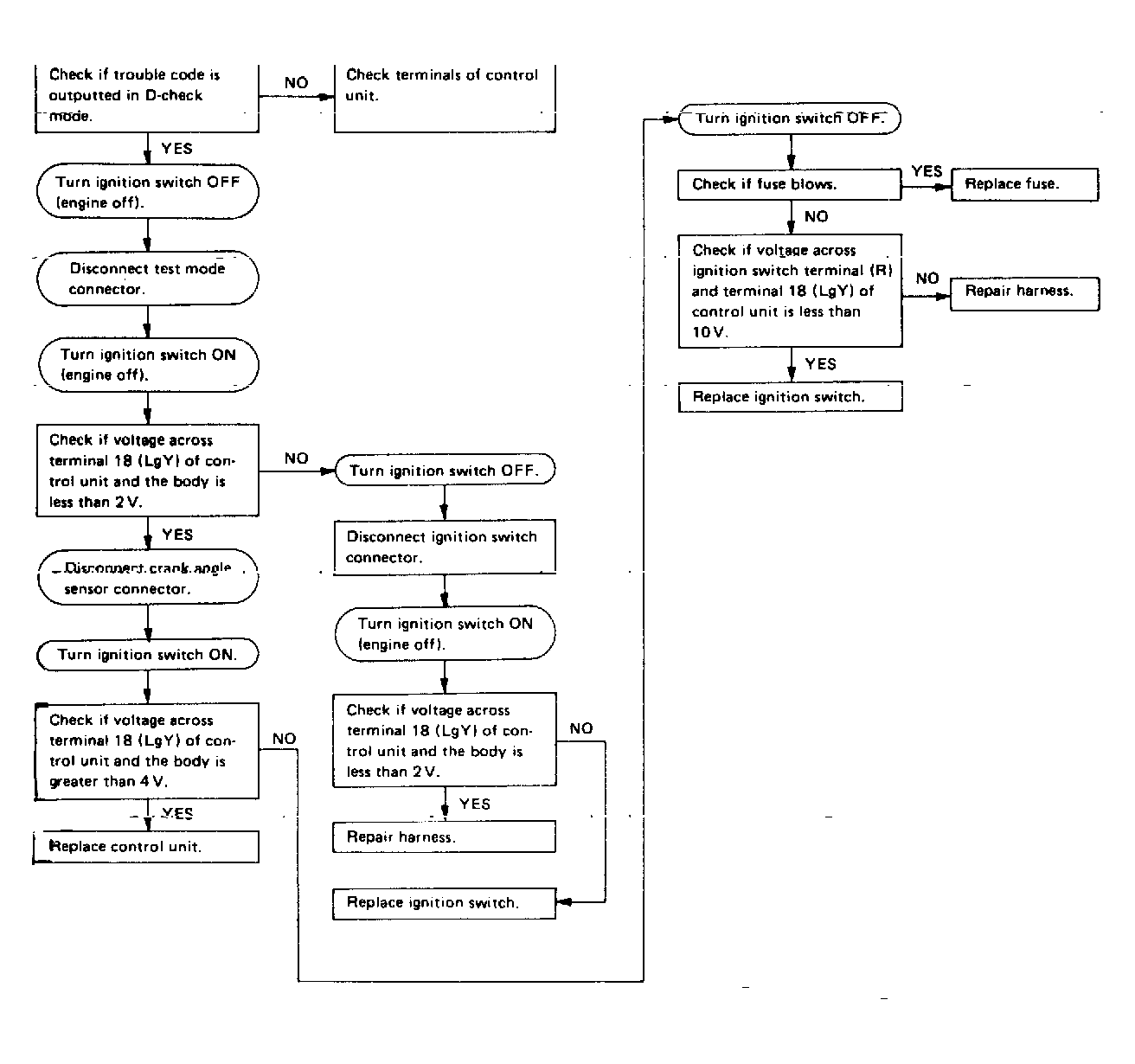

Fig 2: Trouble Code 12: Starter Switch - Flow Chart
G121884Courtesy of SUBARU OF AMERICA, INC
