Code 13

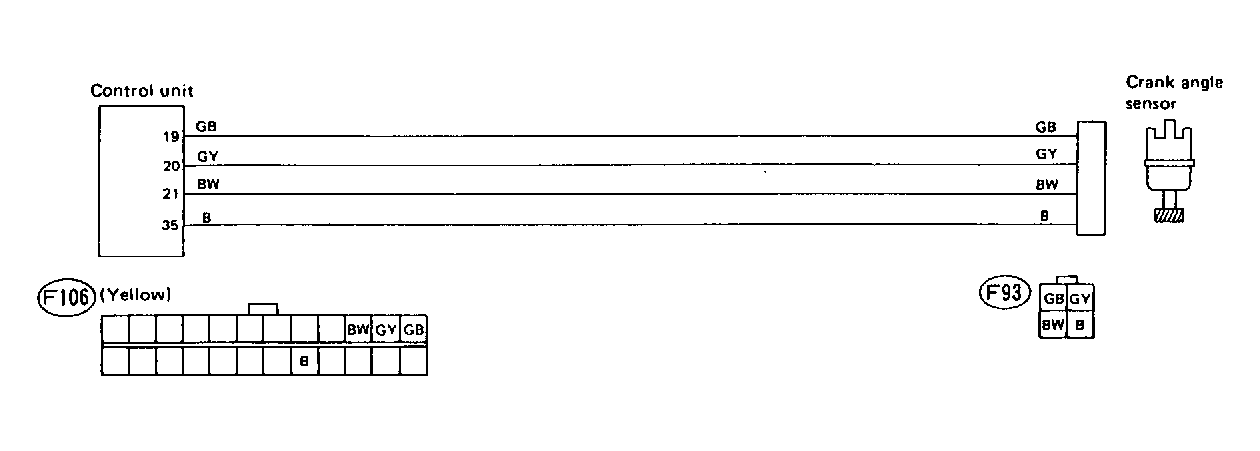

Fig 1: Trouble Code 13: Crank Angle Sensor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC

Fig 2: Trouble Code 13: Crank Angle Sensor - Flow Chart (1 of 2)

Courtesy of SUBARU OF AMERICA, INC

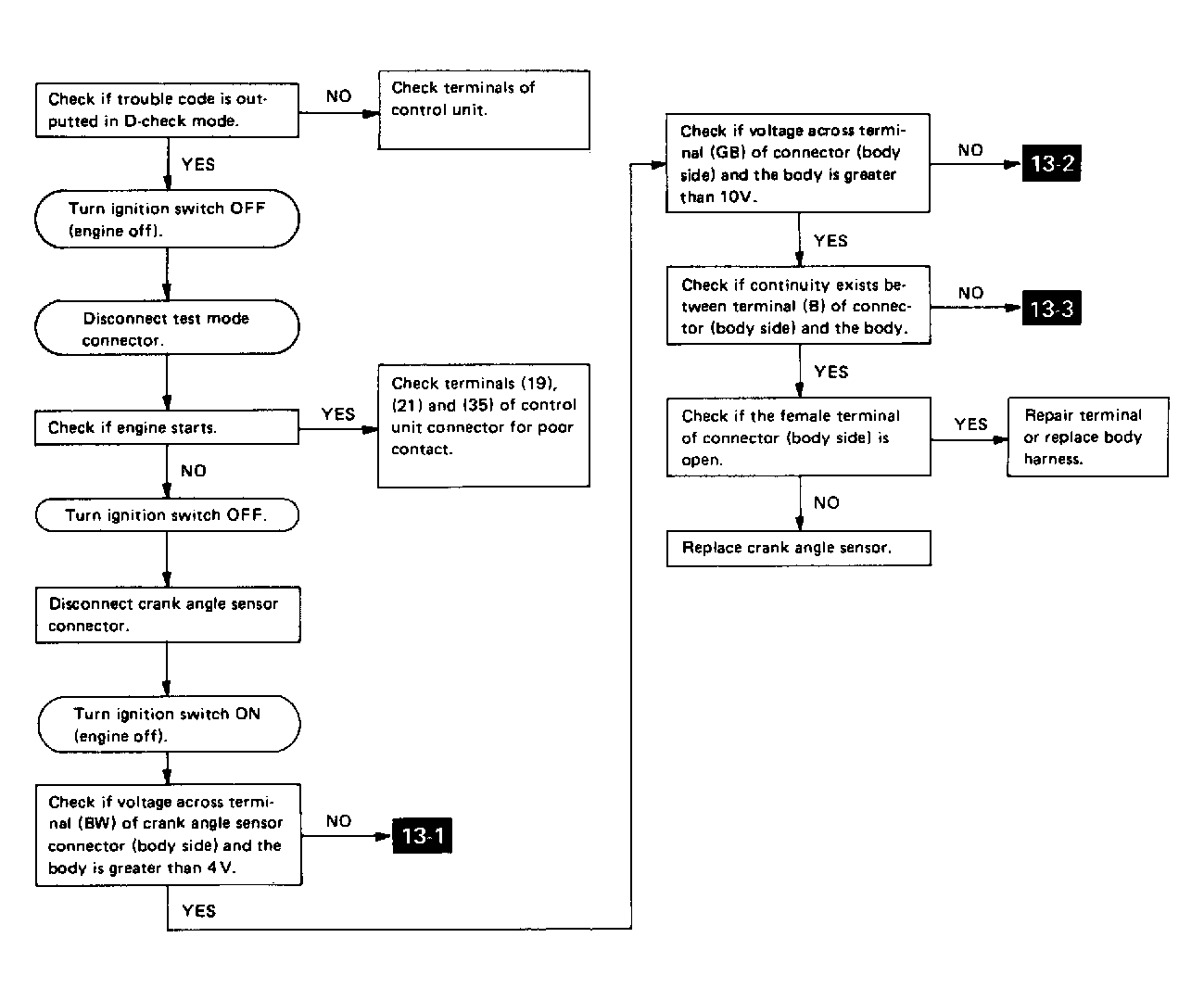

Fig 3: Trouble Code 13: Crank Angle Sensor - Flow Chart (2 of 2)

Courtesy of SUBARU OF AMERICA, INC
