Code 23

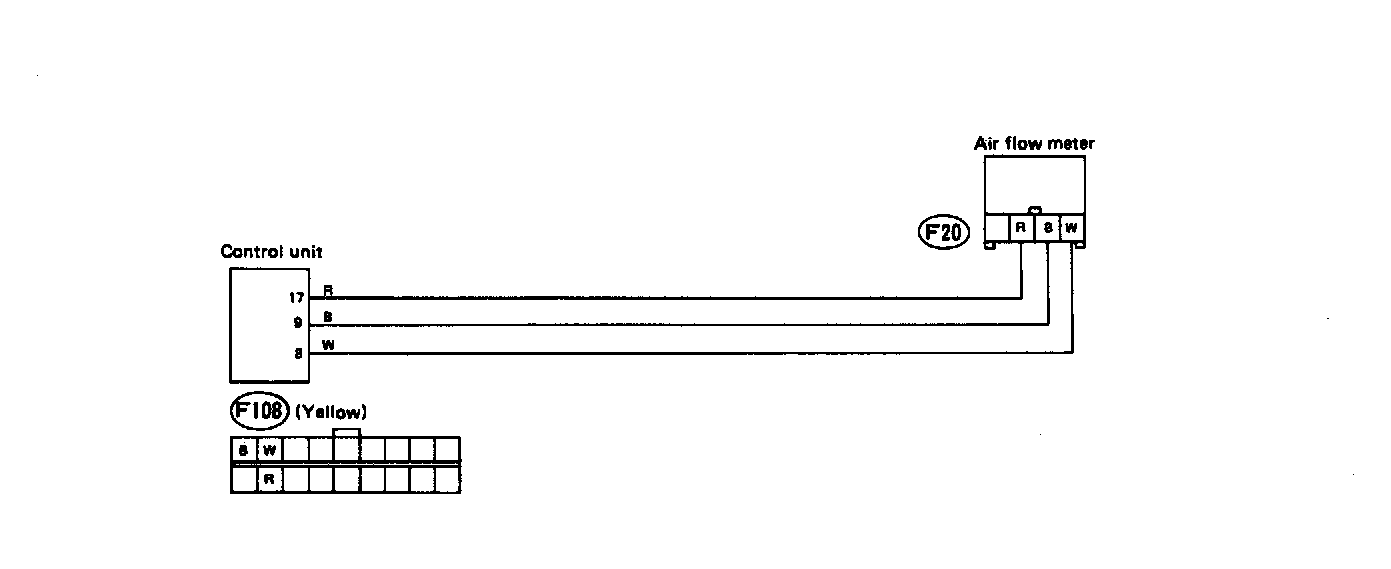

Fig 1: Trouble Code 23: Airflow Meter - Wiring Diagram
G118356Courtesy of SUBARU OF AMERICA, INC

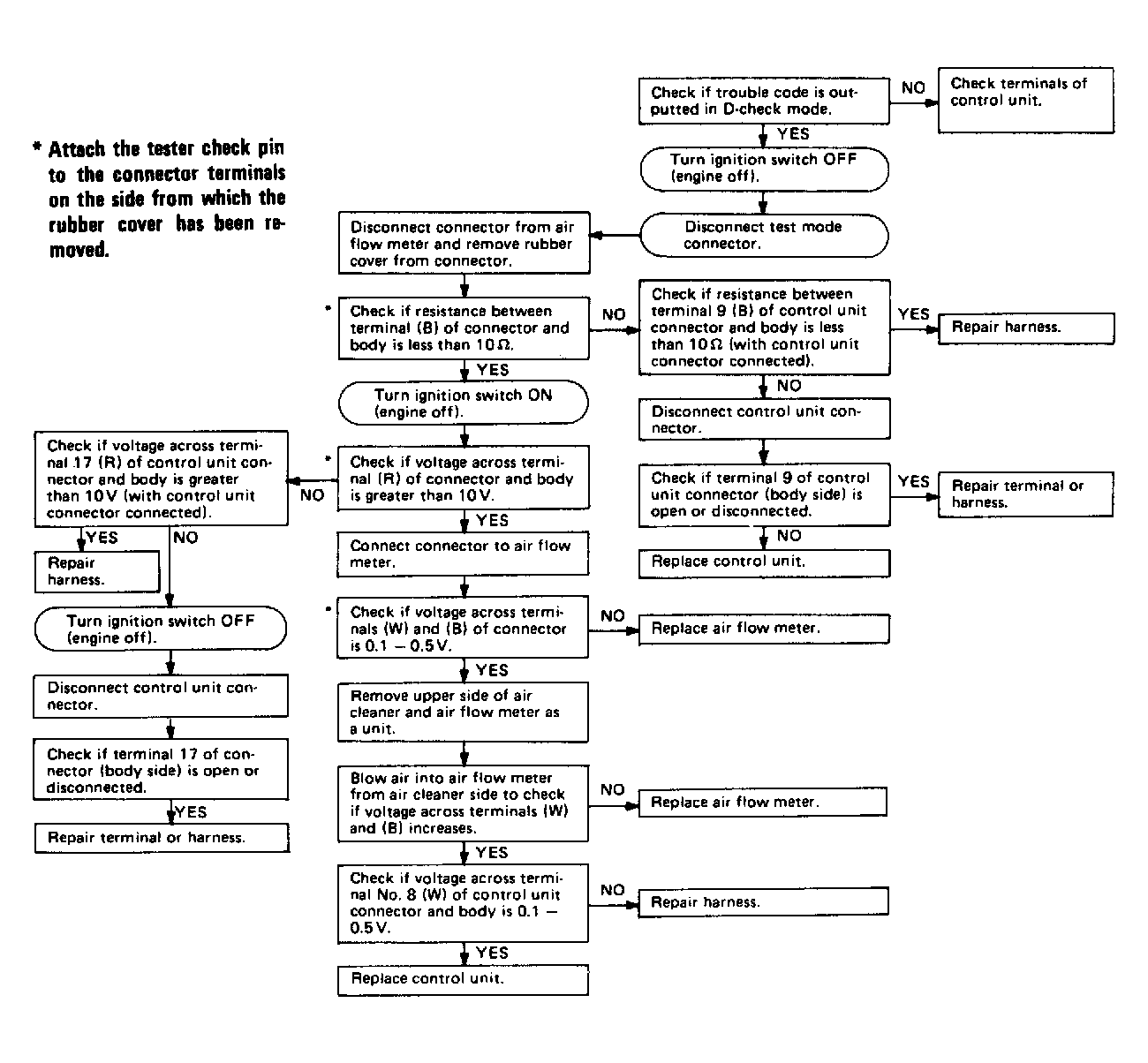

Fig 2: Trouble Code 23: Airflow Meter - Flow Chart
G121888Courtesy of SUBARU OF AMERICA, INC
