Code 24

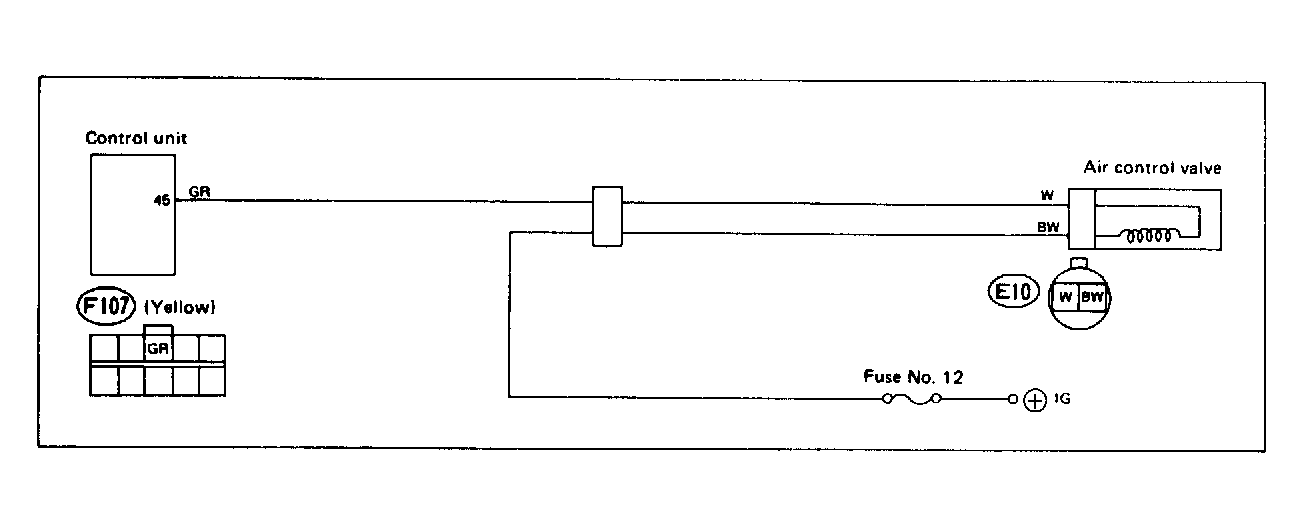

Fig 1: Trouble Code 24: Air Control Valve - Wiring Diagram
G118357Courtesy of SUBARU OF AMERICA, INC

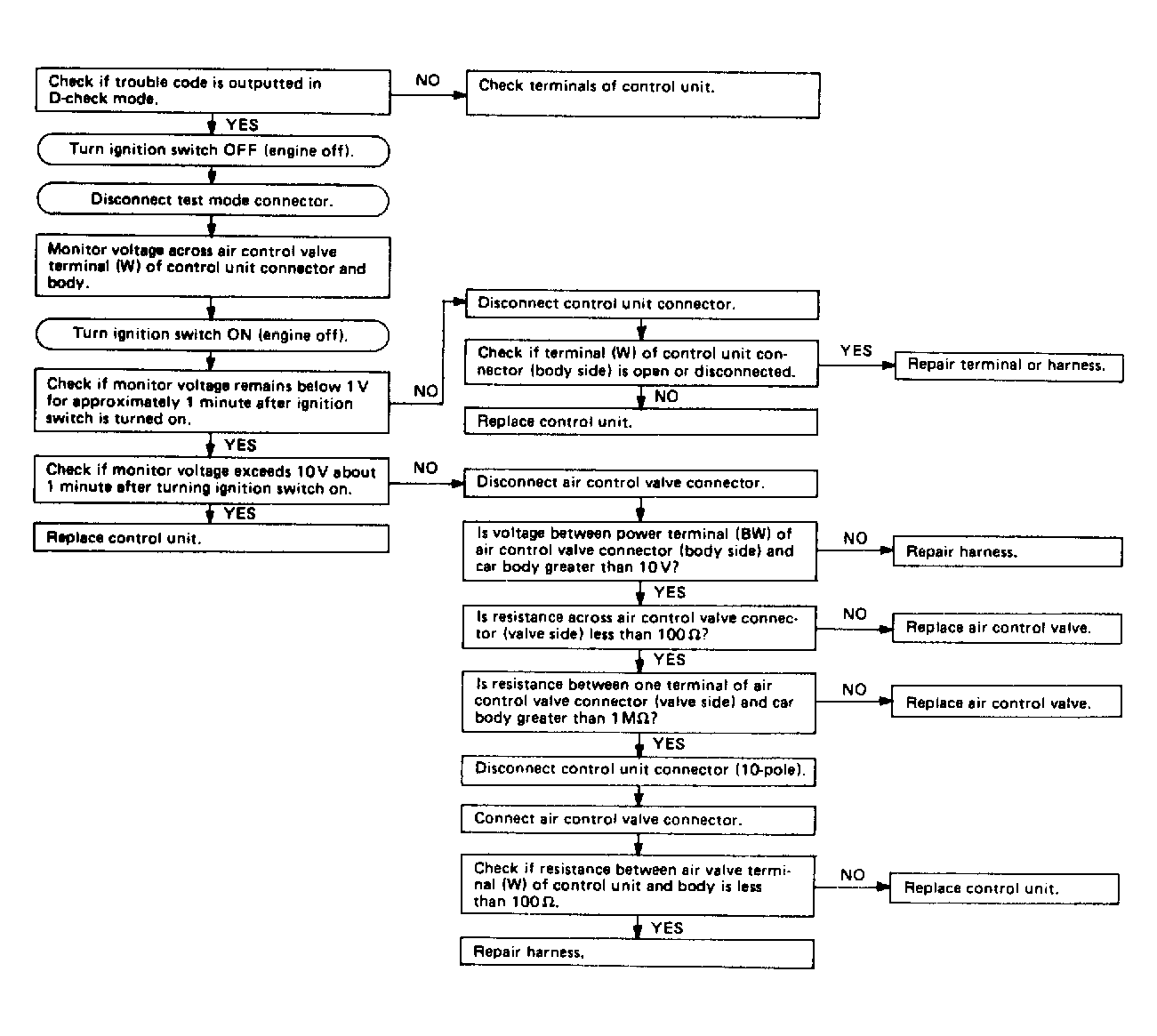

Fig 2: Trouble Code 24: Air Control Valve - Flow Chart
G121889Courtesy of SUBARU OF AMERICA, INC
