Code 33

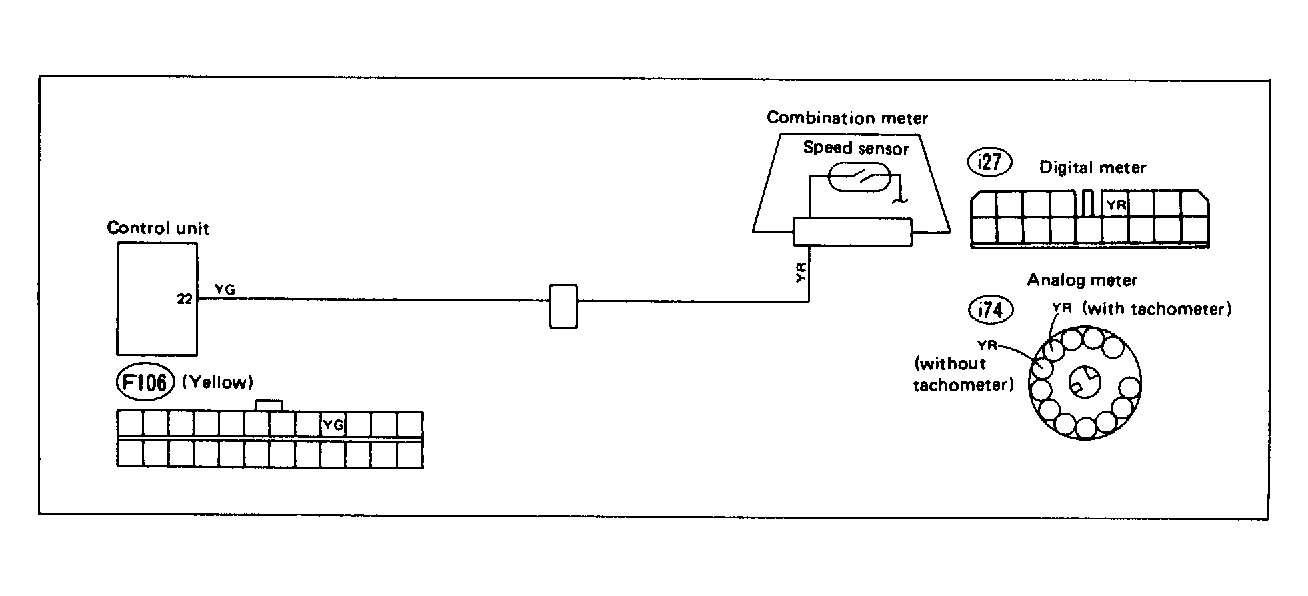

Fig 1: Trouble Code 33: Speed Sensor - Wiring Diagram
G118360Courtesy of SUBARU OF AMERICA, INC

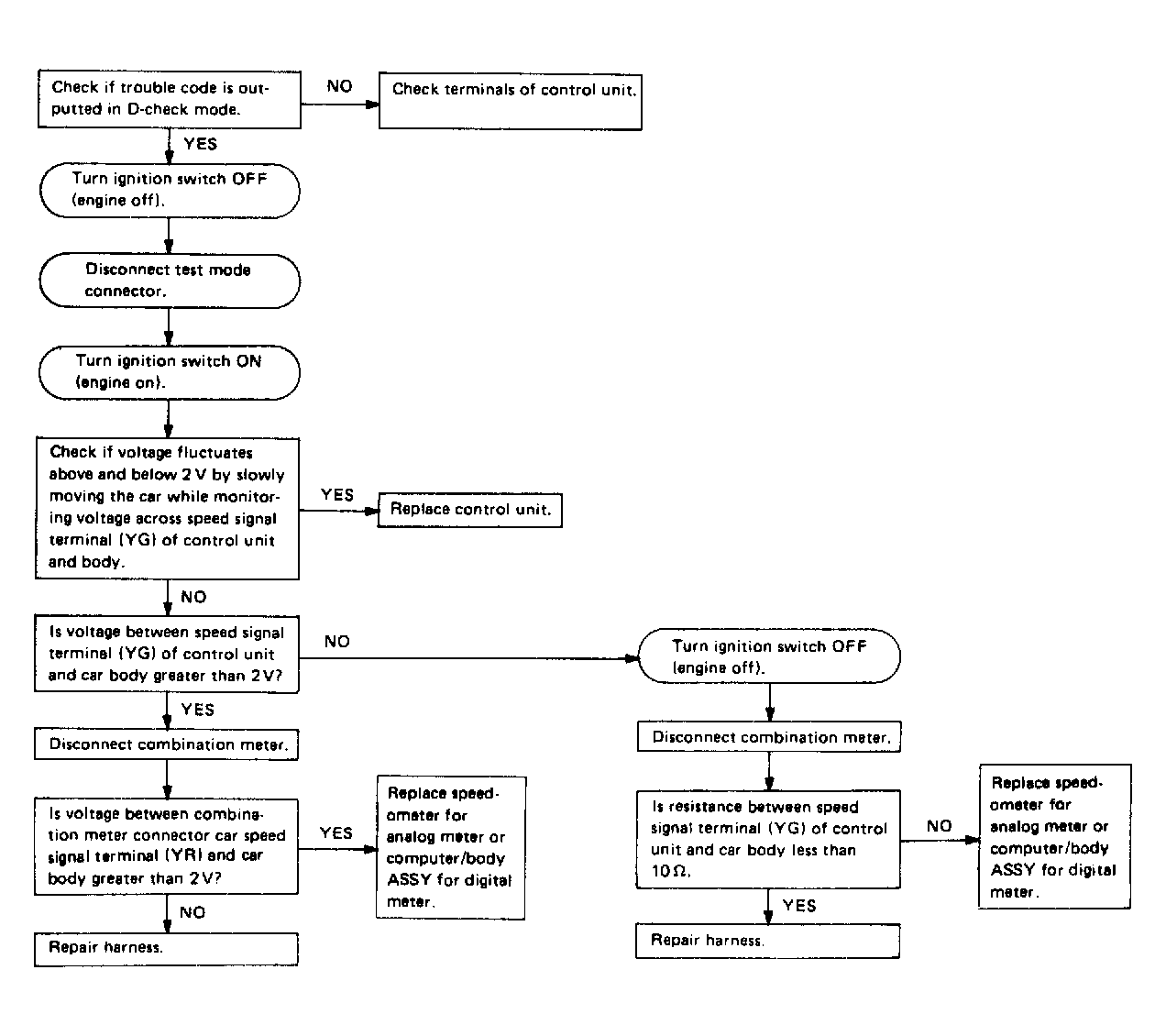

Fig 2: Trouble Code 33: Speed Sensor - Flow Chart
G121892Courtesy of SUBARU OF AMERICA, INC
