Code 34

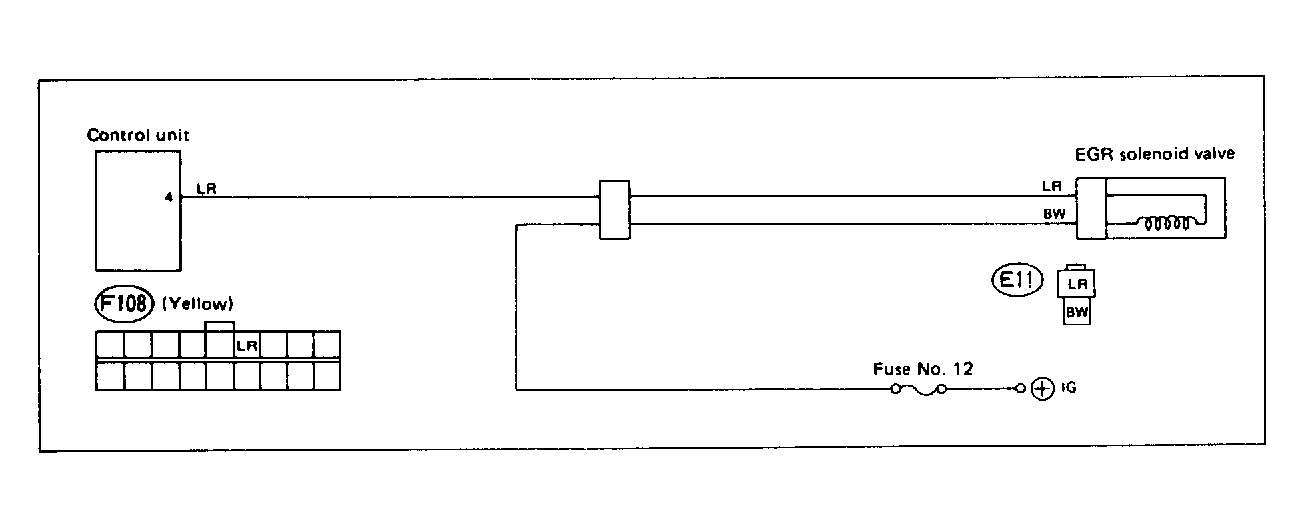

Fig 1: Trouble Code 34: EGR Solenoid Valve - Wiring Diagram
G118361Courtesy of SUBARU OF AMERICA, INC

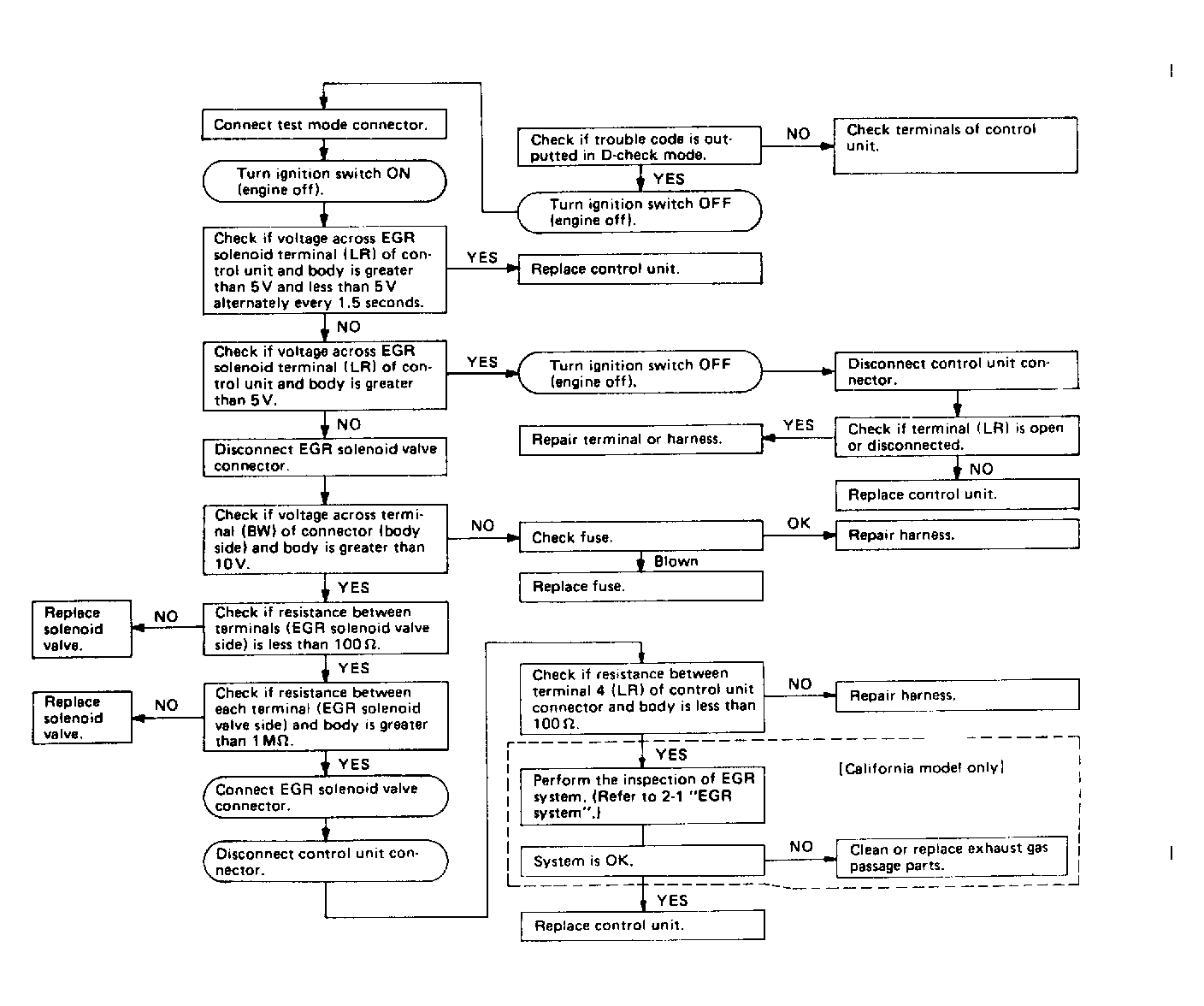

Fig 2: Trouble Code 34: EGR Solenoid Valve - Flow Chart
G121893Courtesy of SUBARU OF AMERICA, INC
