Code 42

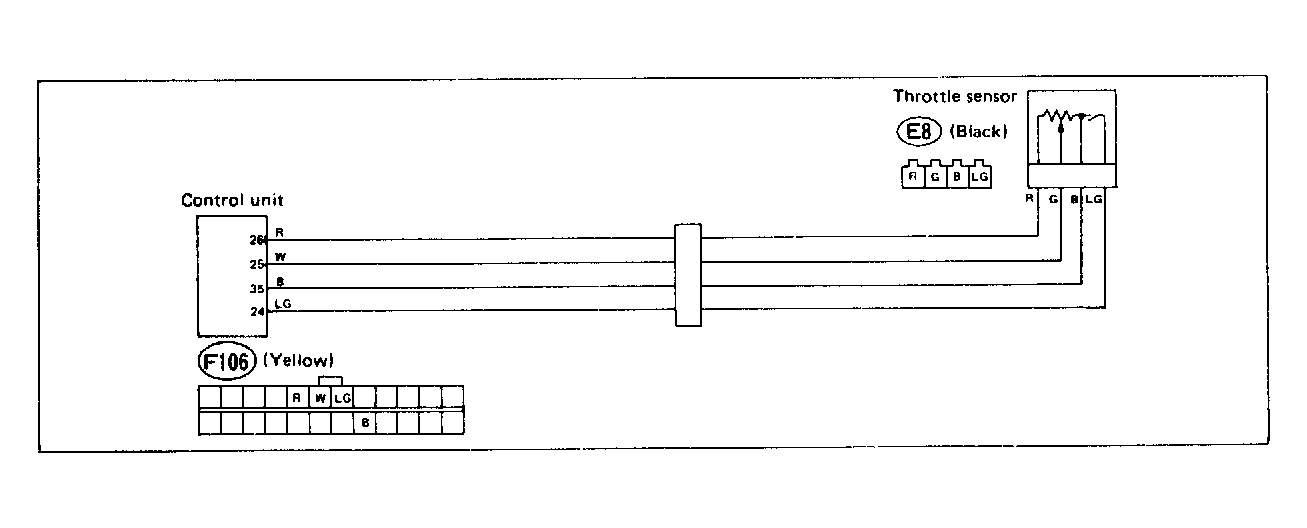

Fig 1: Trouble Code 42: Idle Switch - Wiring Diagram
G118363Courtesy of SUBARU OF AMERICA, INC

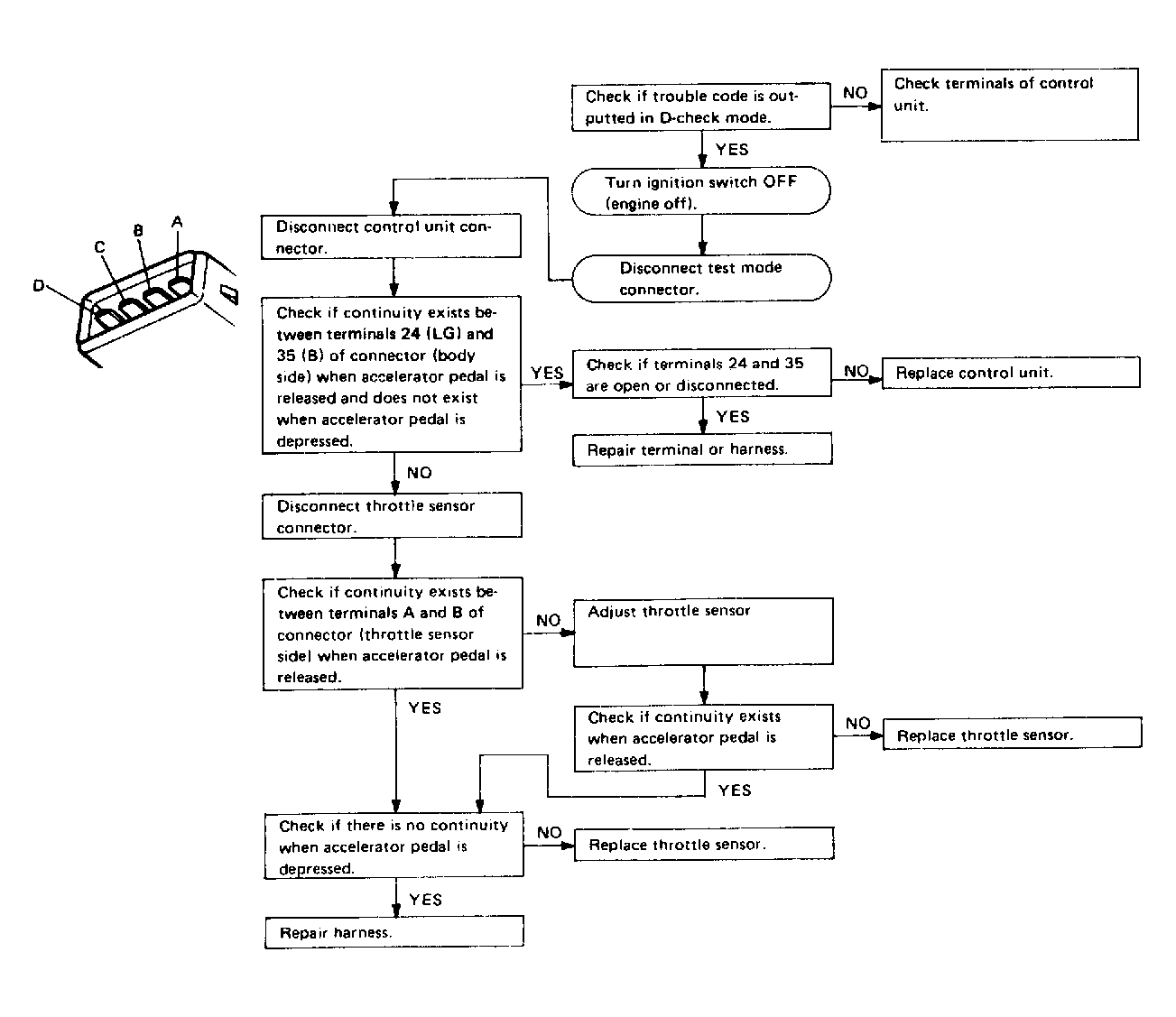

Fig 2: Trouble Code 42: Idle Switch - Flow Chart
G121895Courtesy of SUBARU OF AMERICA, INC
