Code 51

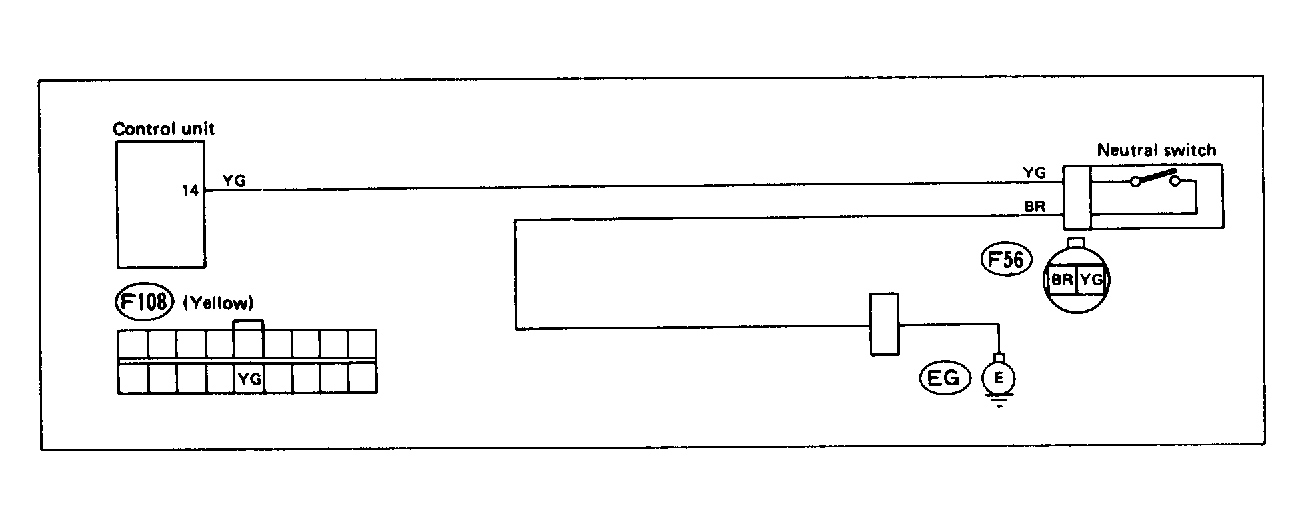

Fig 1: Trouble Code 51: Neutral Switch (M/T) - Wiring Diagram
G118365Courtesy of SUBARU OF AMERICA, INC

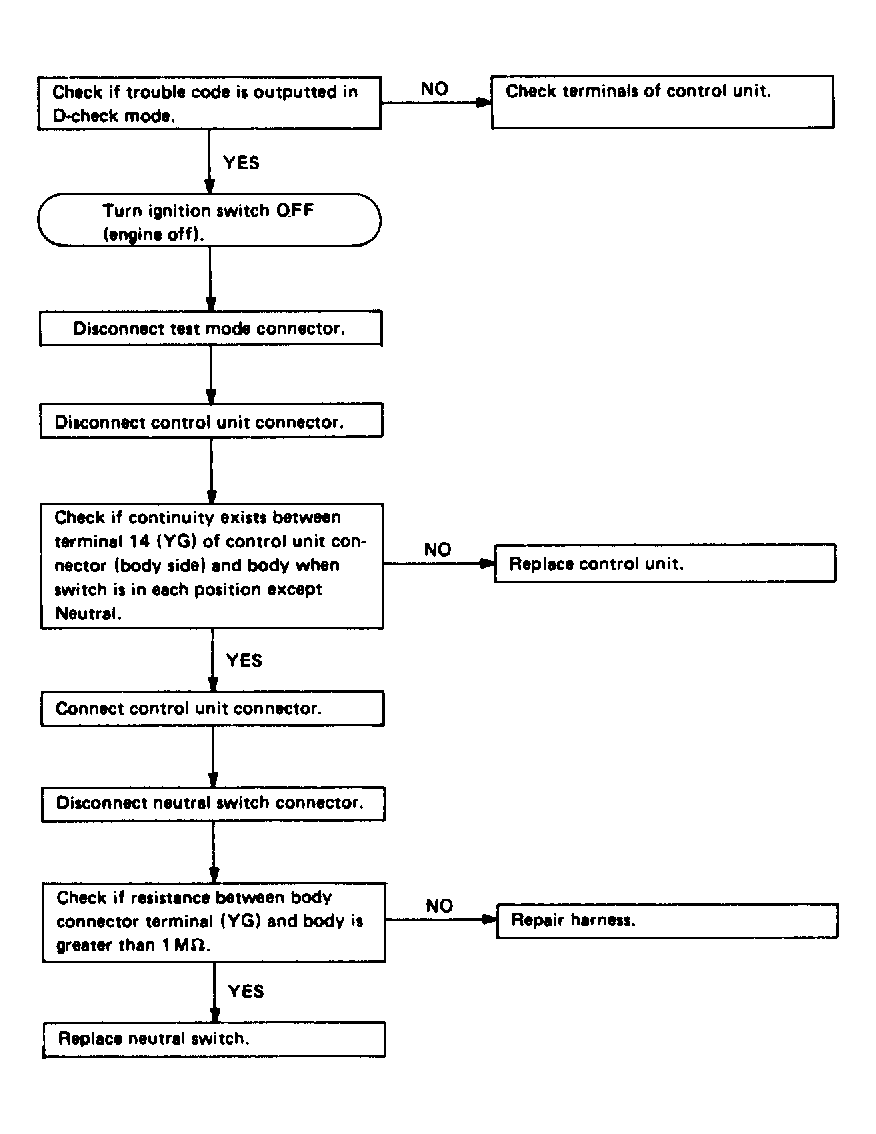

Fig 2: Trouble Code 51: Neutral Switch (M/T) - Flow Chart
G121897Courtesy of SUBARU OF AMERICA, INC

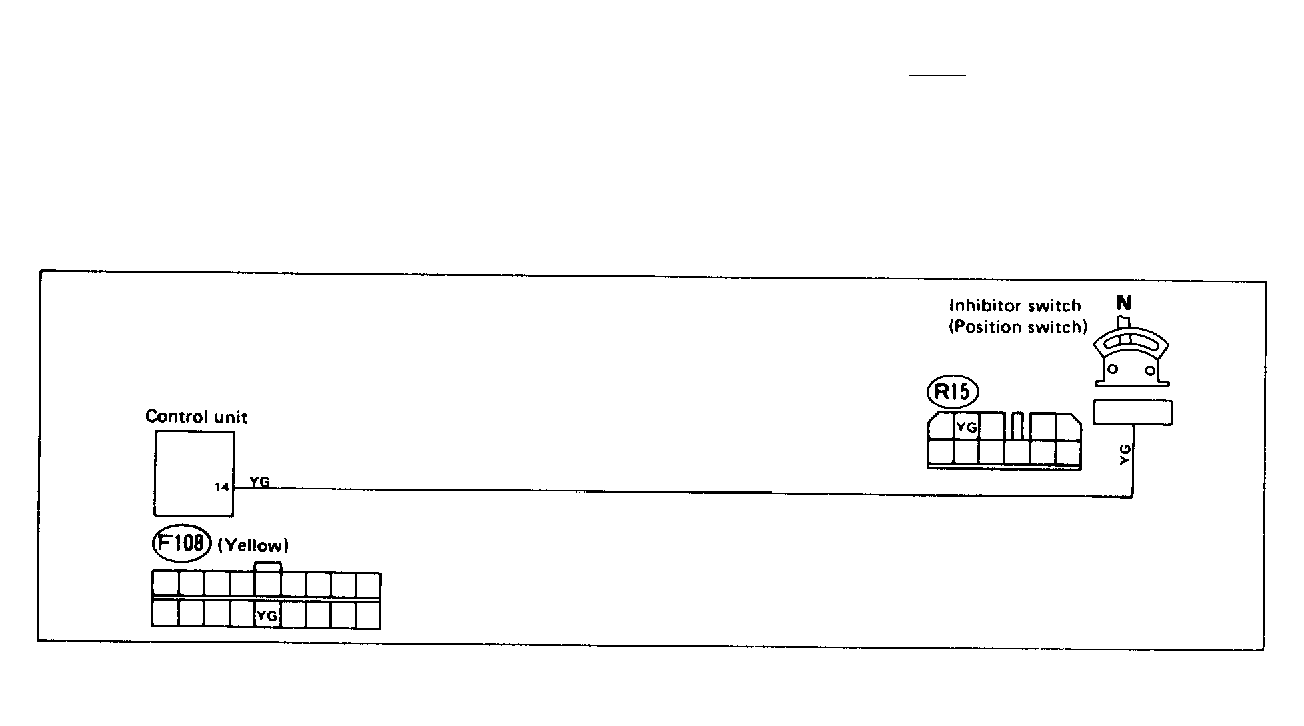

Fig 3: Trouble Code 51: Neutral Switch (A/T) - Wiring Diagram
G118366Courtesy of SUBARU OF AMERICA, INC

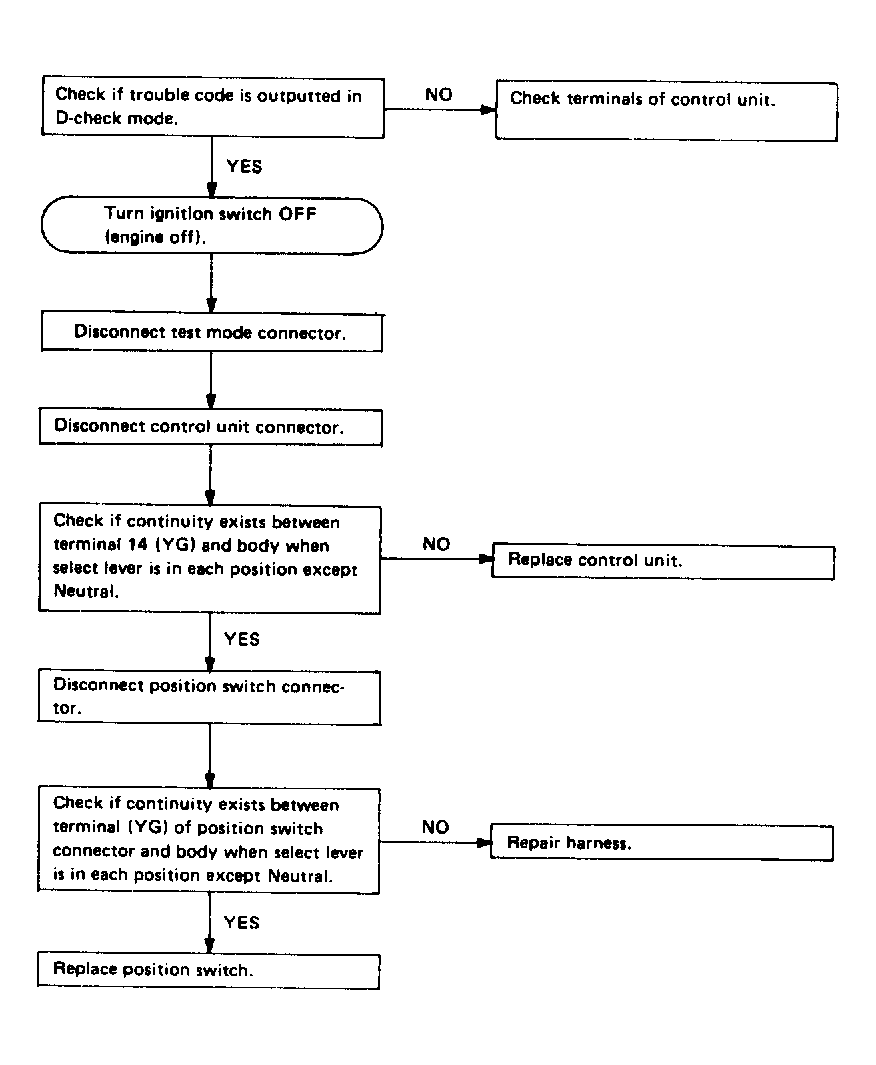

Fig 4: Trouble Code 51: Neutral Switch (A/T) - Flow Chart
G121898Courtesy of SUBARU OF AMERICA, INC
