Code 55

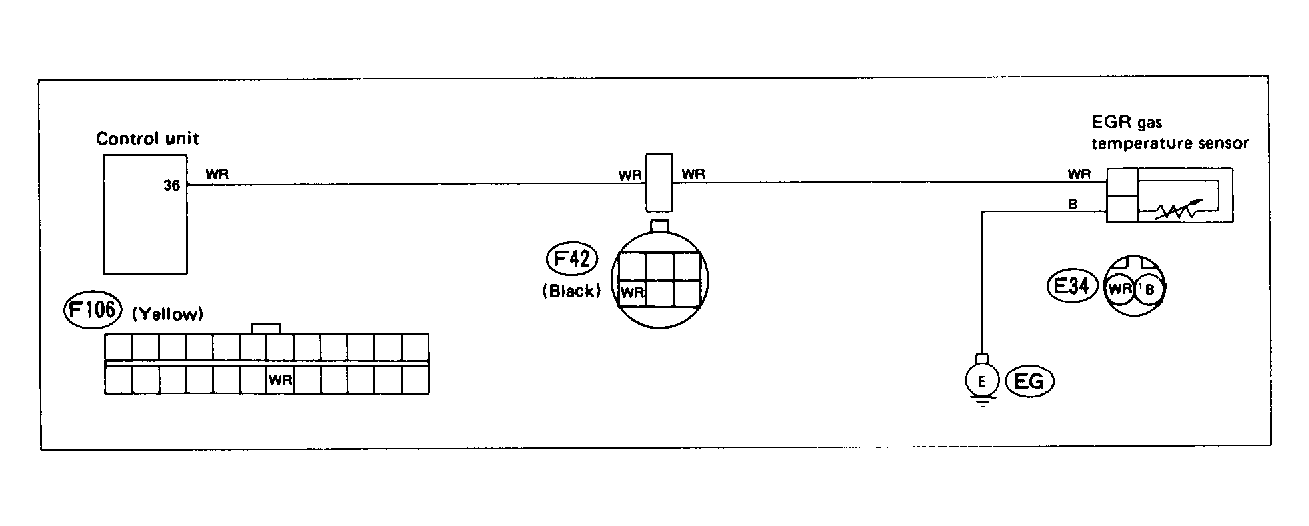

Fig 1: Trouble Code 55: EGR Gas Temperature Sensor (Ca.) - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC

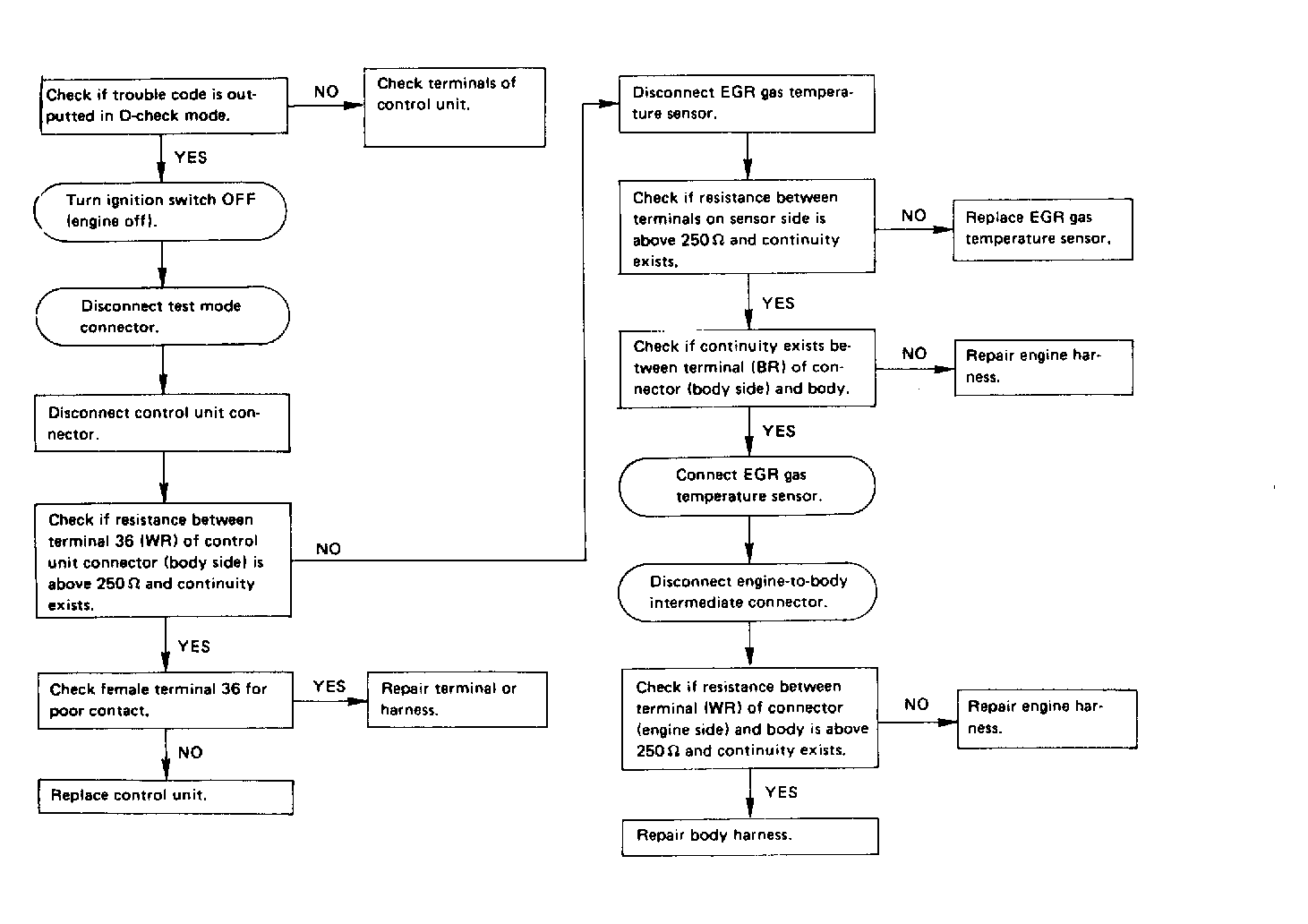

Fig 2: Trouble Code 55: EGR Gas Temperature Sensor (Ca.) - Flow Chart
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
Courtesy of SUBARU OF AMERICA, INC
