Entering Self-Diagnostics: Notes

"U-Check", "Read Memory" and "D-Check" are entered by connecting and/or disconnecting the read memory and test mode connectors as required. See Fig 3 or Fig 4 . See RELATIONSHIP BETWEEN MODES AND CONNECTORS table.

Fig 1: Location Of O2 Monitor (Except XT)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Location Of O2 Monitor (XT)

Courtesy of SUBARU OF AMERICA, INC.

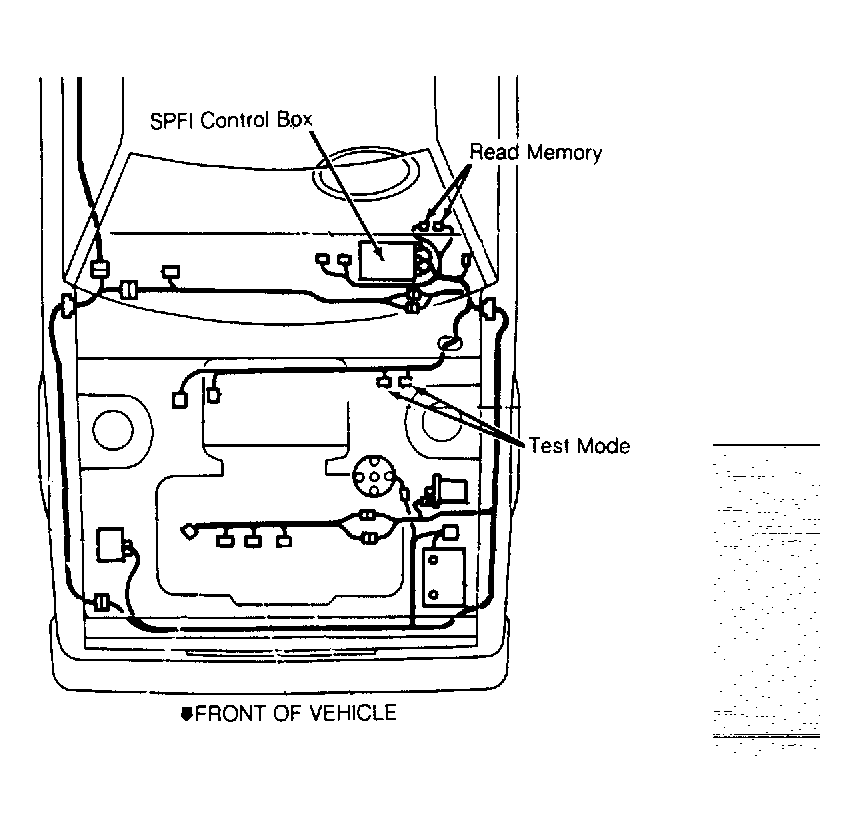

Fig 3: Location Of Read Memory & Test Mode Connectors (Except XT)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Location Of Read Memory & Test Mode Connectors (XT)

Courtesy of SUBARU OF AMERICA, INC.
