Ignition Checks

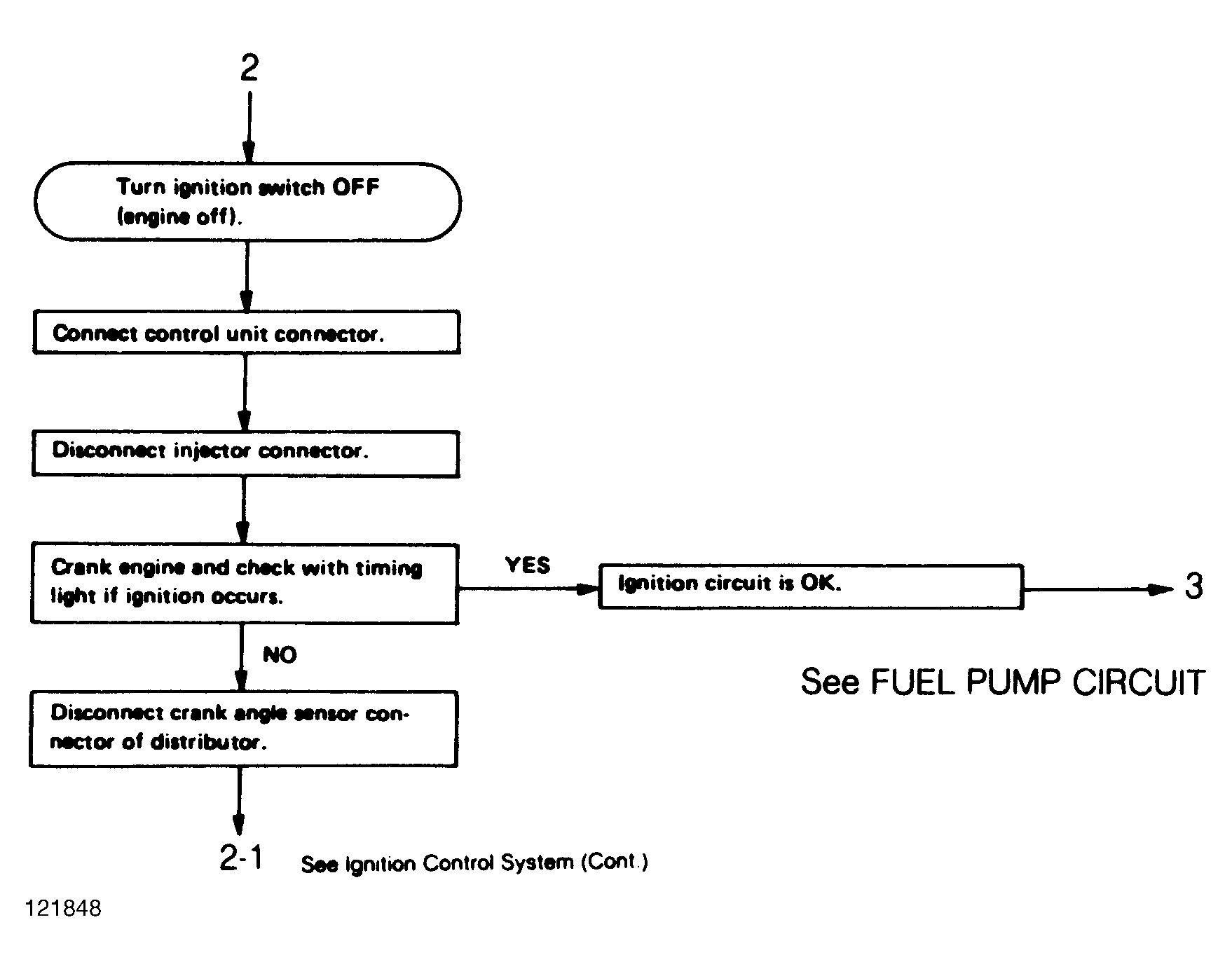

Fig 1: MPFI & SPFI Ignition Control System Test - Flow Chart (1 of 2)

Courtesy of SUBARU OF AMERICA, INC.

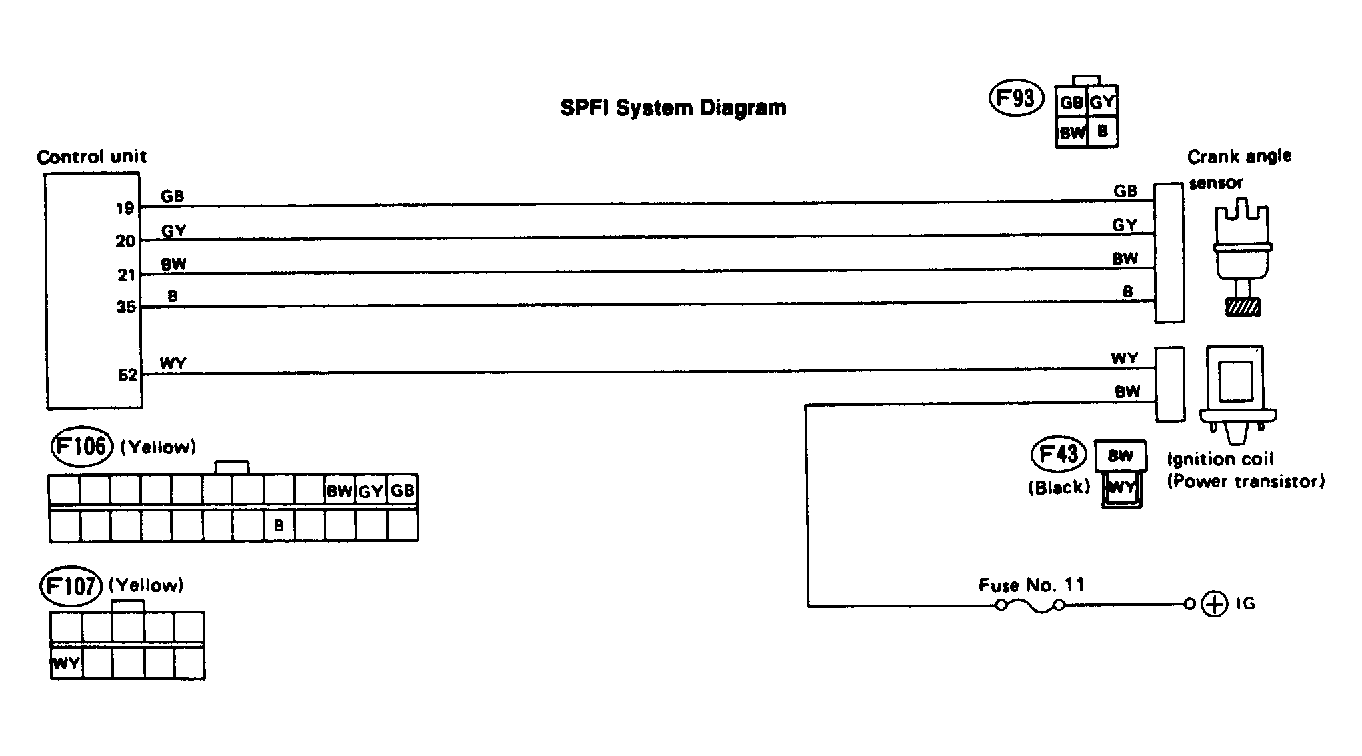

Fig 2: MPFI & SPFI Ignition Control System Test - Wiring Diagram (1 of 2)

Courtesy of SUBARU OF AMERICA, INC.

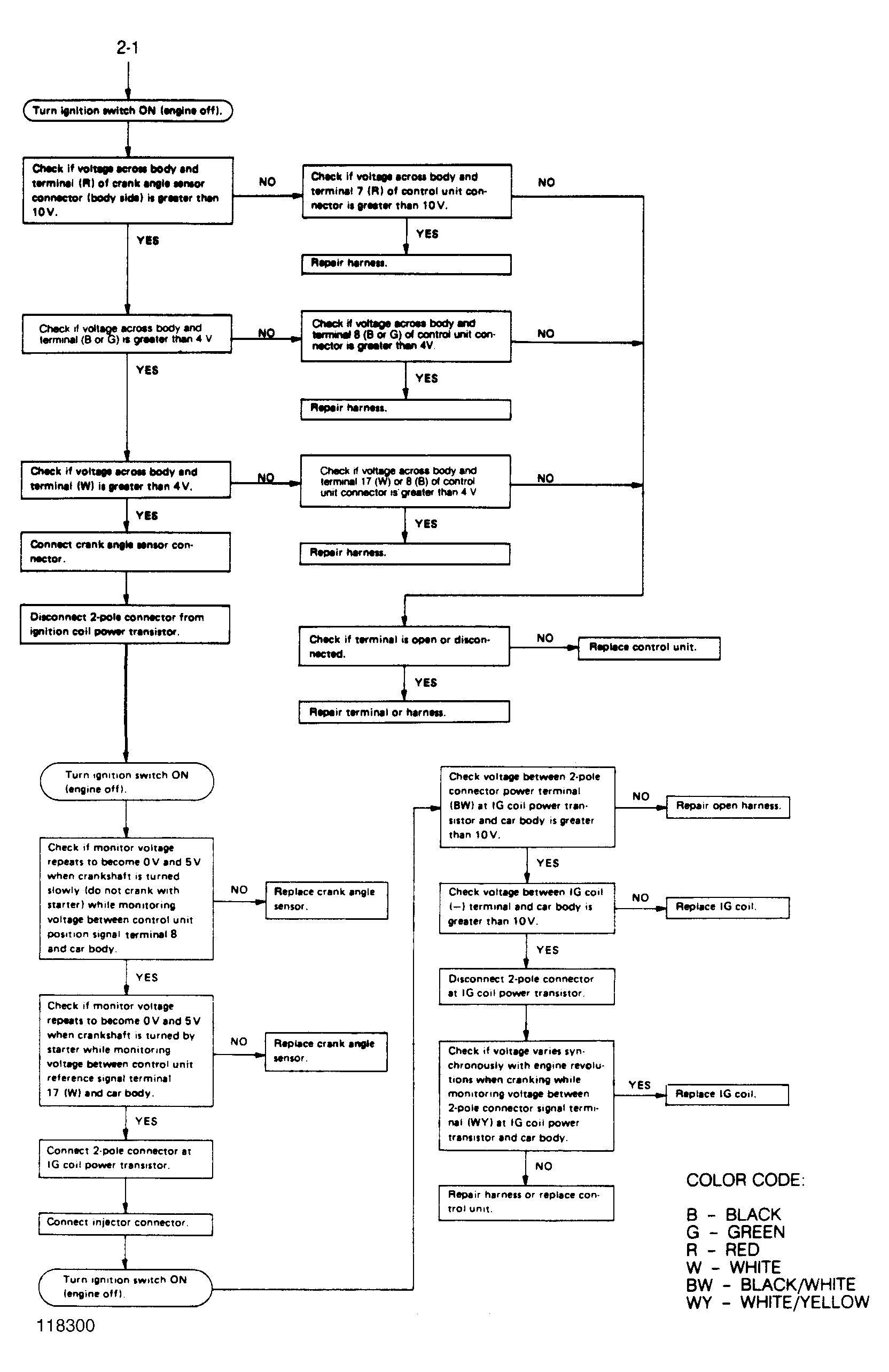

Fig 3: MPFI & SPFI Ignition Control System Test - Flow Chart (2 of 2)

Courtesy of SUBARU OF AMERICA, INC.

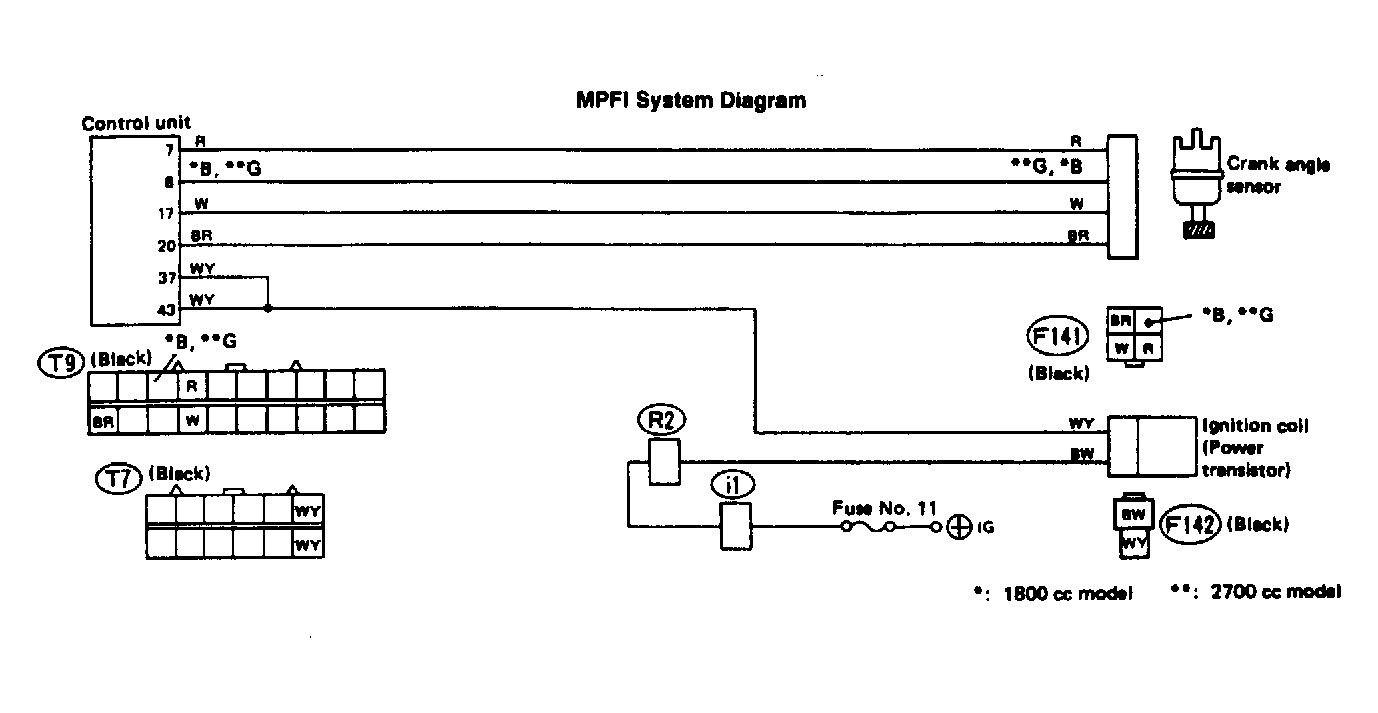

Fig 4: MPFI & SPFI Ignition Control System Test - Wiring Diagram (2 of 2)

Courtesy of SUBARU OF AMERICA, INC.
