Code 12: Starter Switch

Fig 1: Schematic - Code 12, Starter Switch
G91I18356
Fig 2: Flow Chart - Code 12, Starter Switch
G90J18795

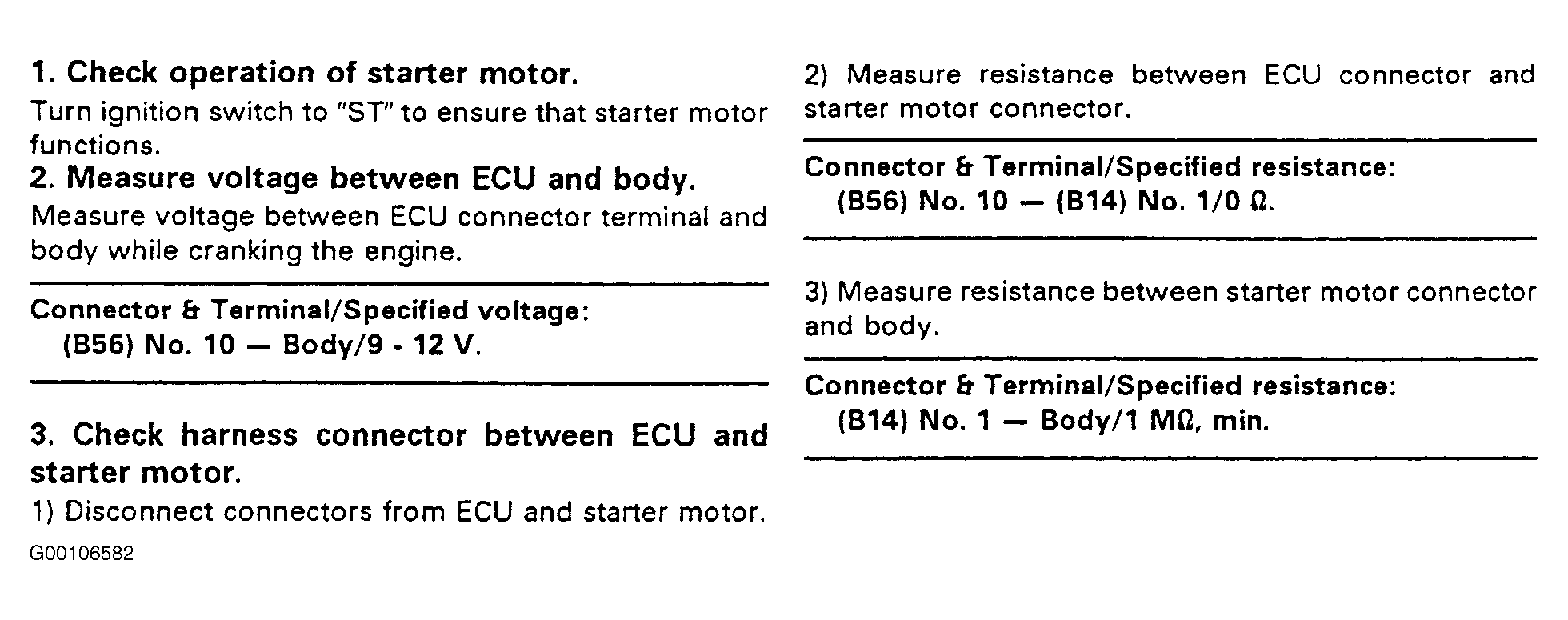

Fig 3: Code 12, Flow Chart Diagnostic Aids
G00106582Courtesy of SUBARU OF AMERICA, INC.
