Code 21: Coolant (Water) Temperature Sensor

Fig 1: Schematic - Code 21, Coolant (Water) Temperature Sensor
G91E18360
Fig 2: Flow Chart - Code 21, Coolant (Water) Temperature Sensor
G90A21840

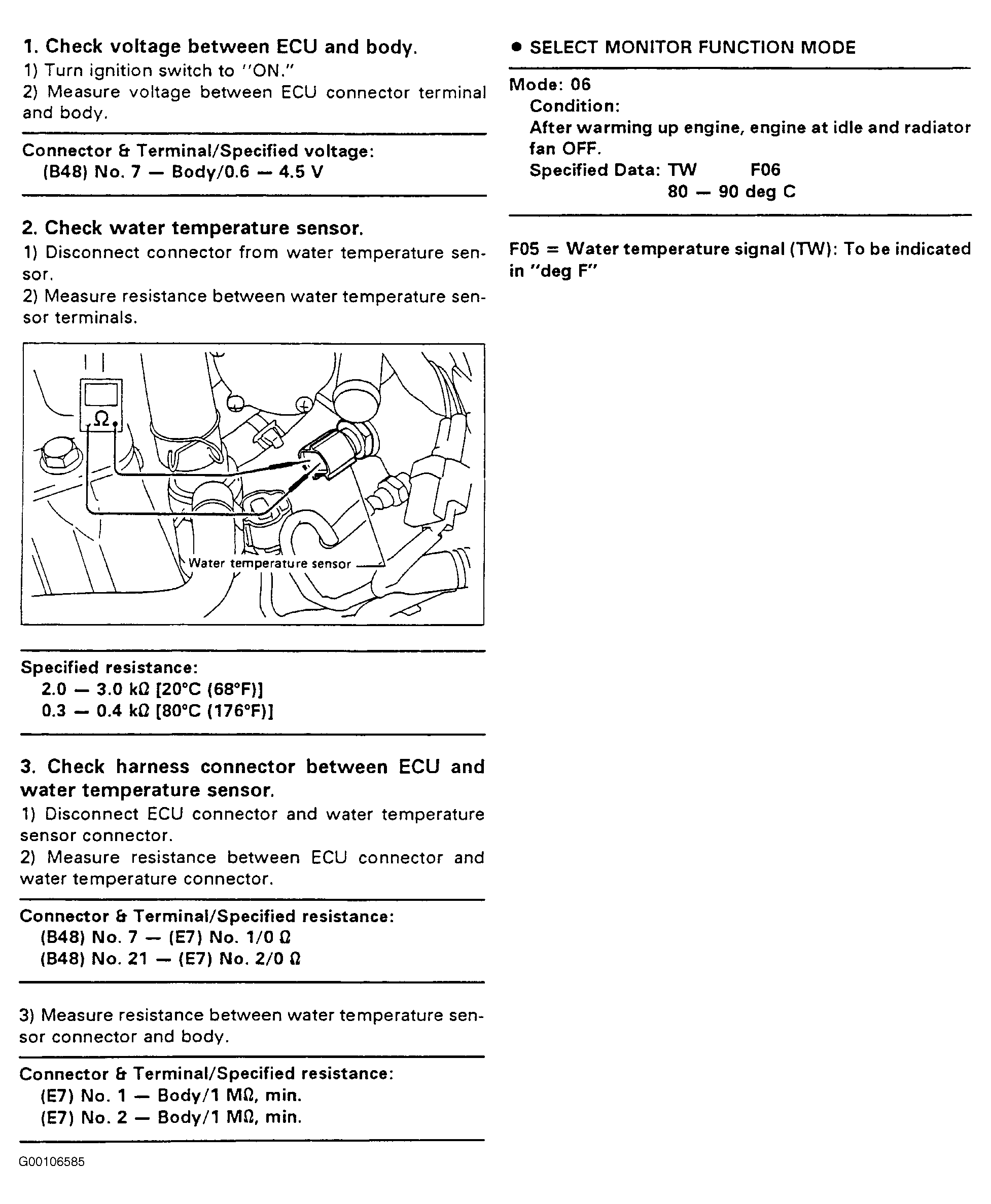

Fig 3: Code 21, Flow Chart Diagnostic Aids
G00106585Courtesy of SUBARU OF AMERICA, INC.
