Code 45: Pressure Sensor Duty Solenoid (WASTEGATE Control)

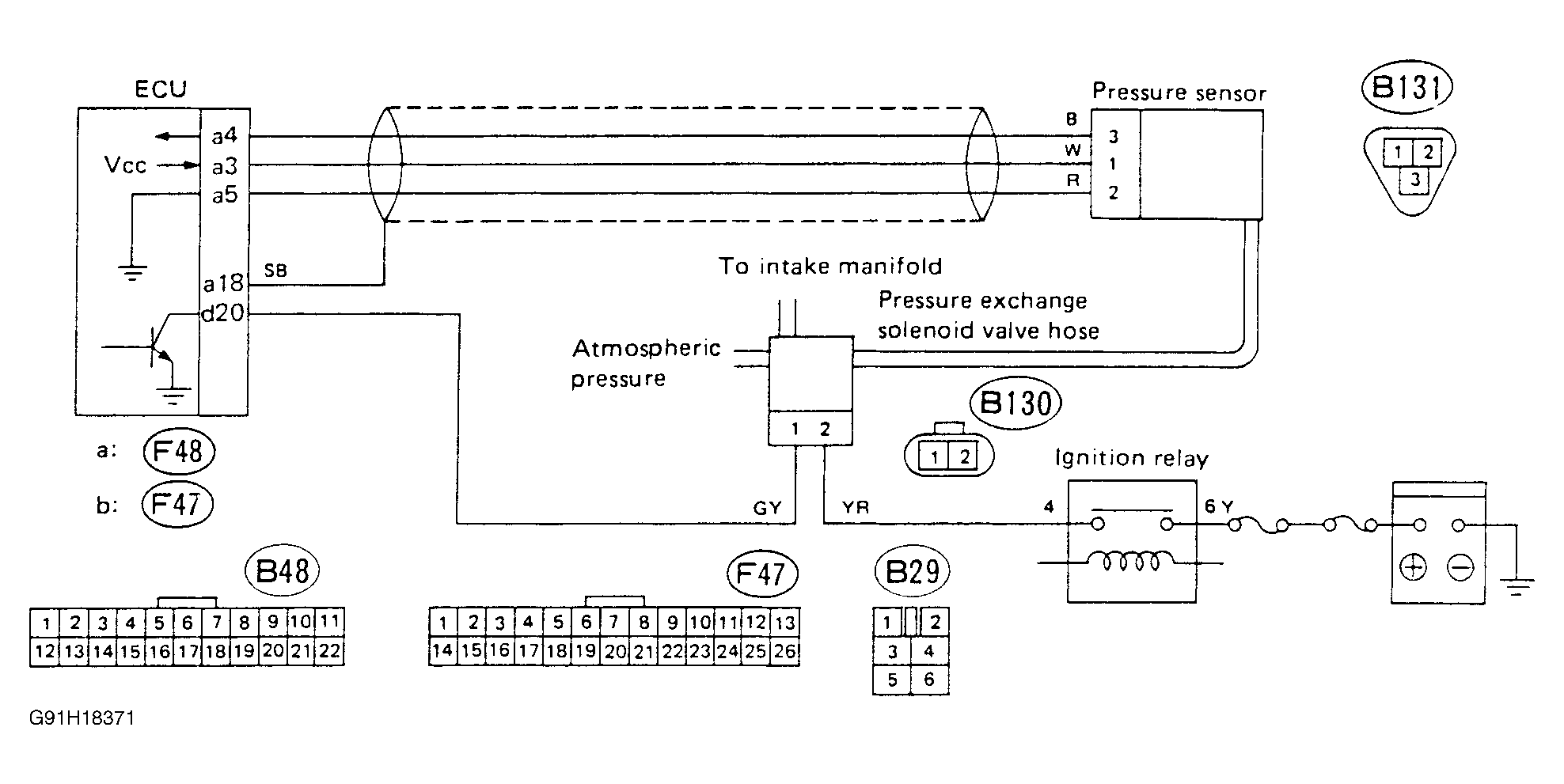

Fig 1: Schematic - Code 45, Pressure Sensor Duty Solenoid

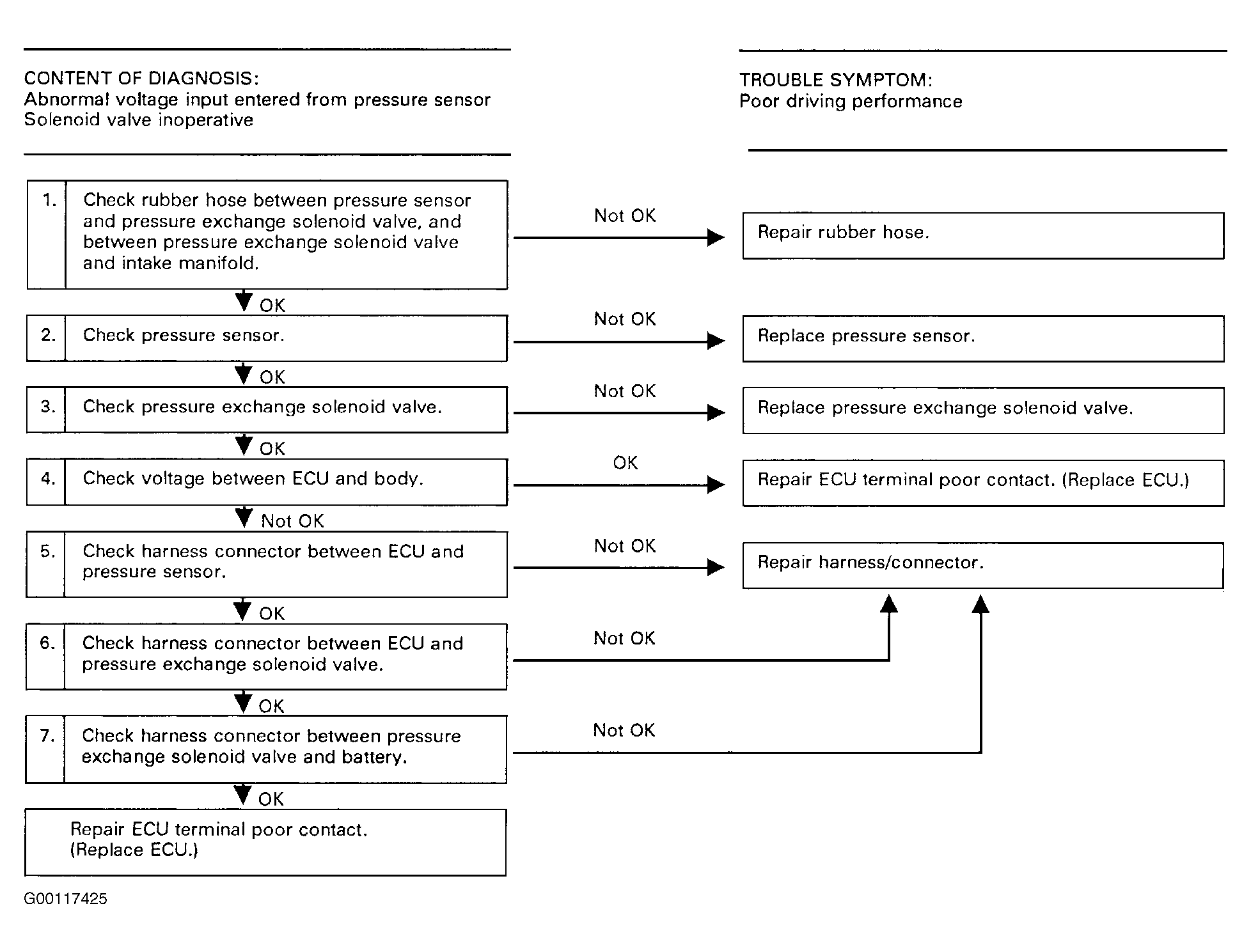

Fig 2: Flow Chart - Code 45, Pressure Sensor Duty Solenoid

Courtesy of GENERAL MOTORS CORP.
