Component Location

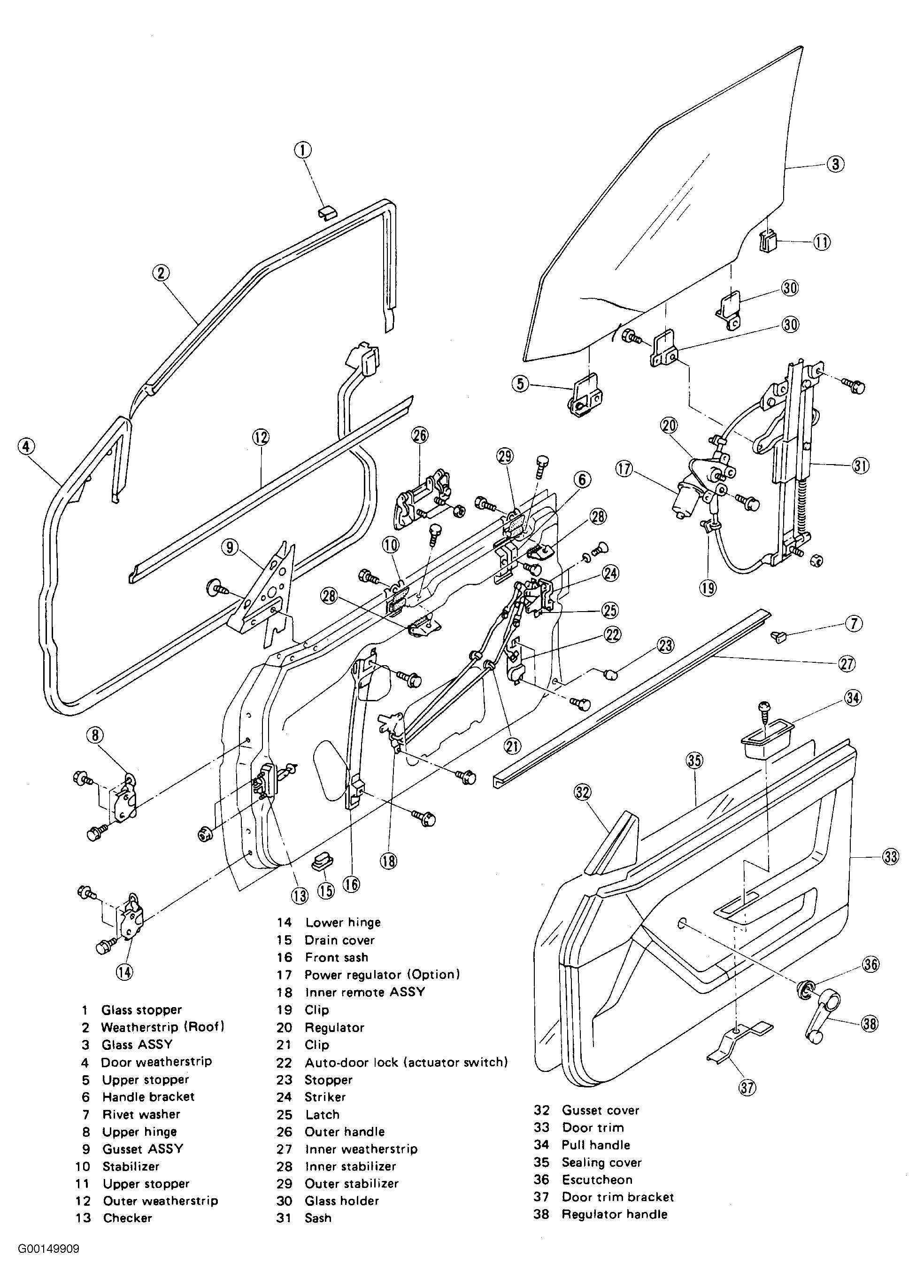

Fig 1: Exploded View Of Door
Courtesy of SUBARU OF AMERICA, INC.

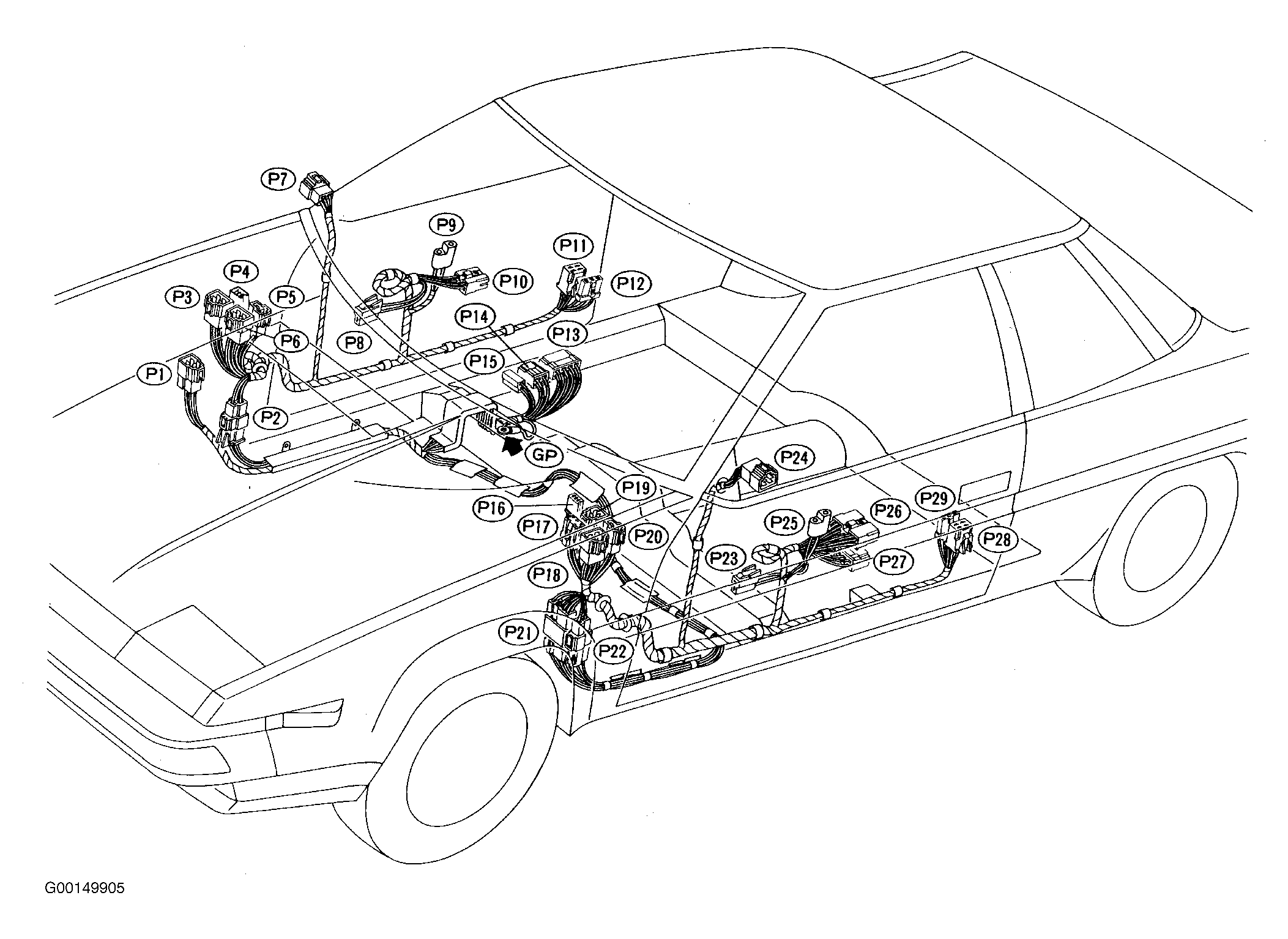

Fig 2: Power Window Main Wiring Harness & Connectors (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

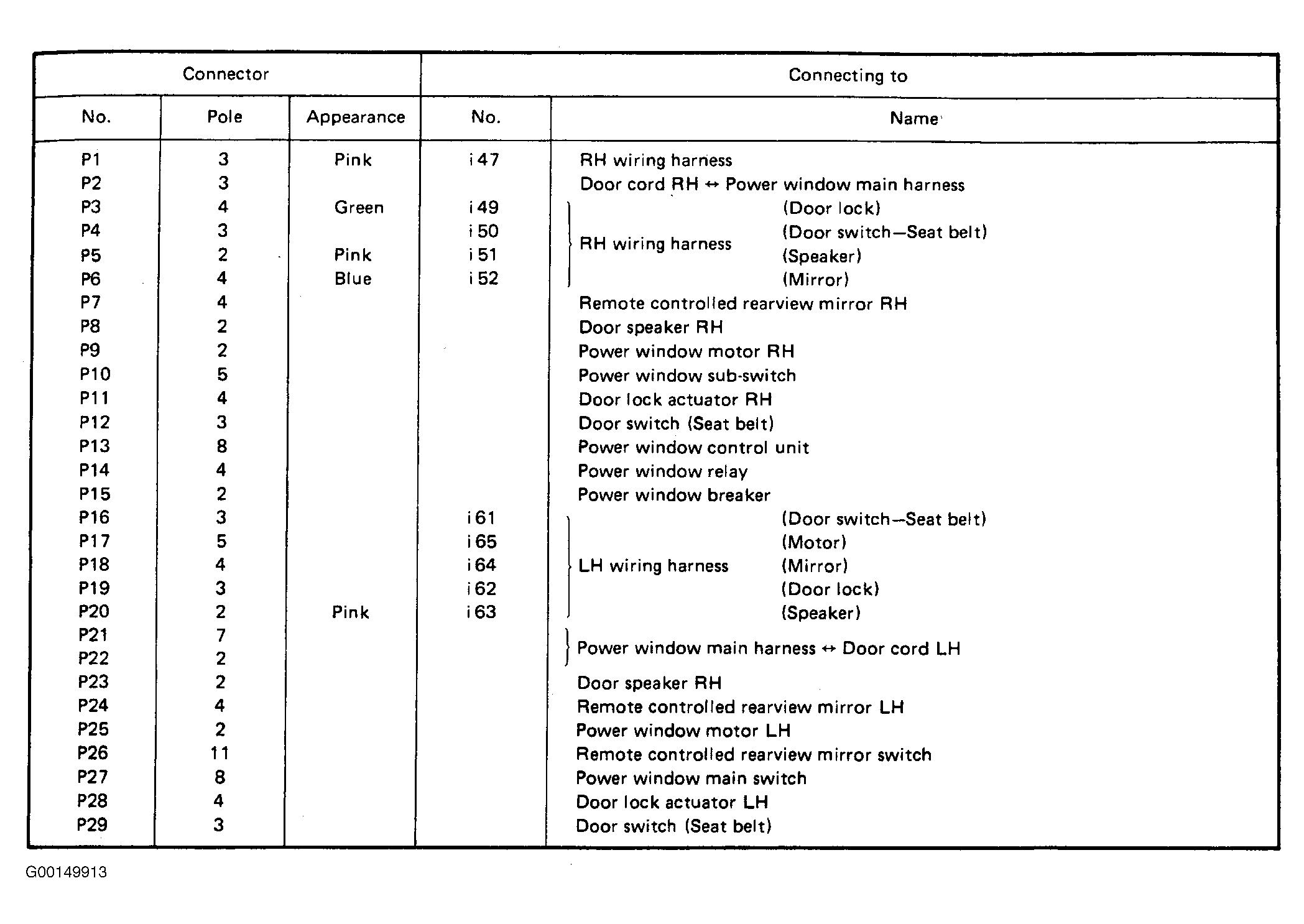

Fig 3: Power Window Main Wiring Harness & Connectors - Legend (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
