Main Switch

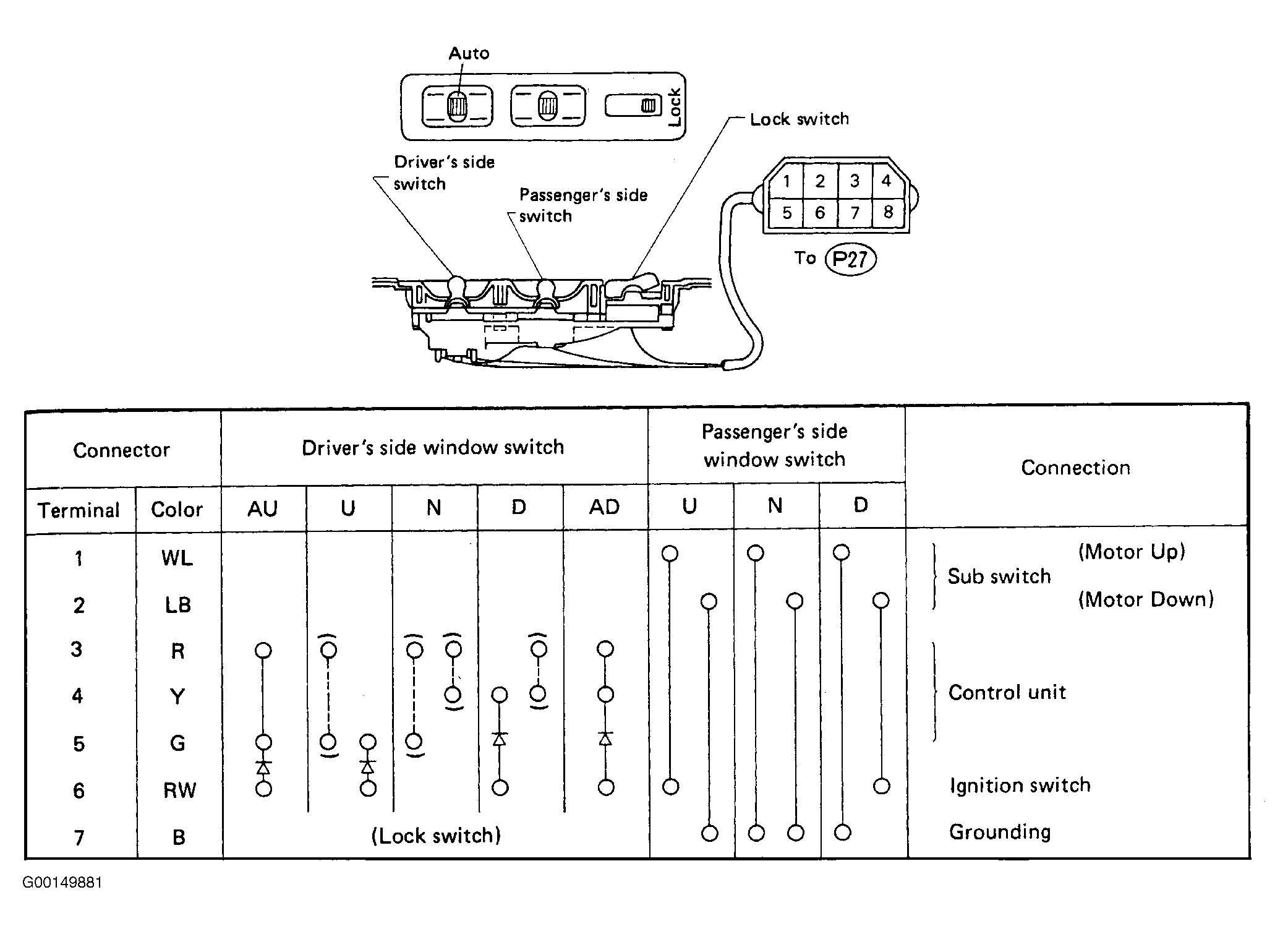

Fig 1: Main Switch Connector Identification & Continuity Testing
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
