Home
>>
Subaru
>>
1991
>>
XT Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Component Testing
>>
Sub Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Sub Switch

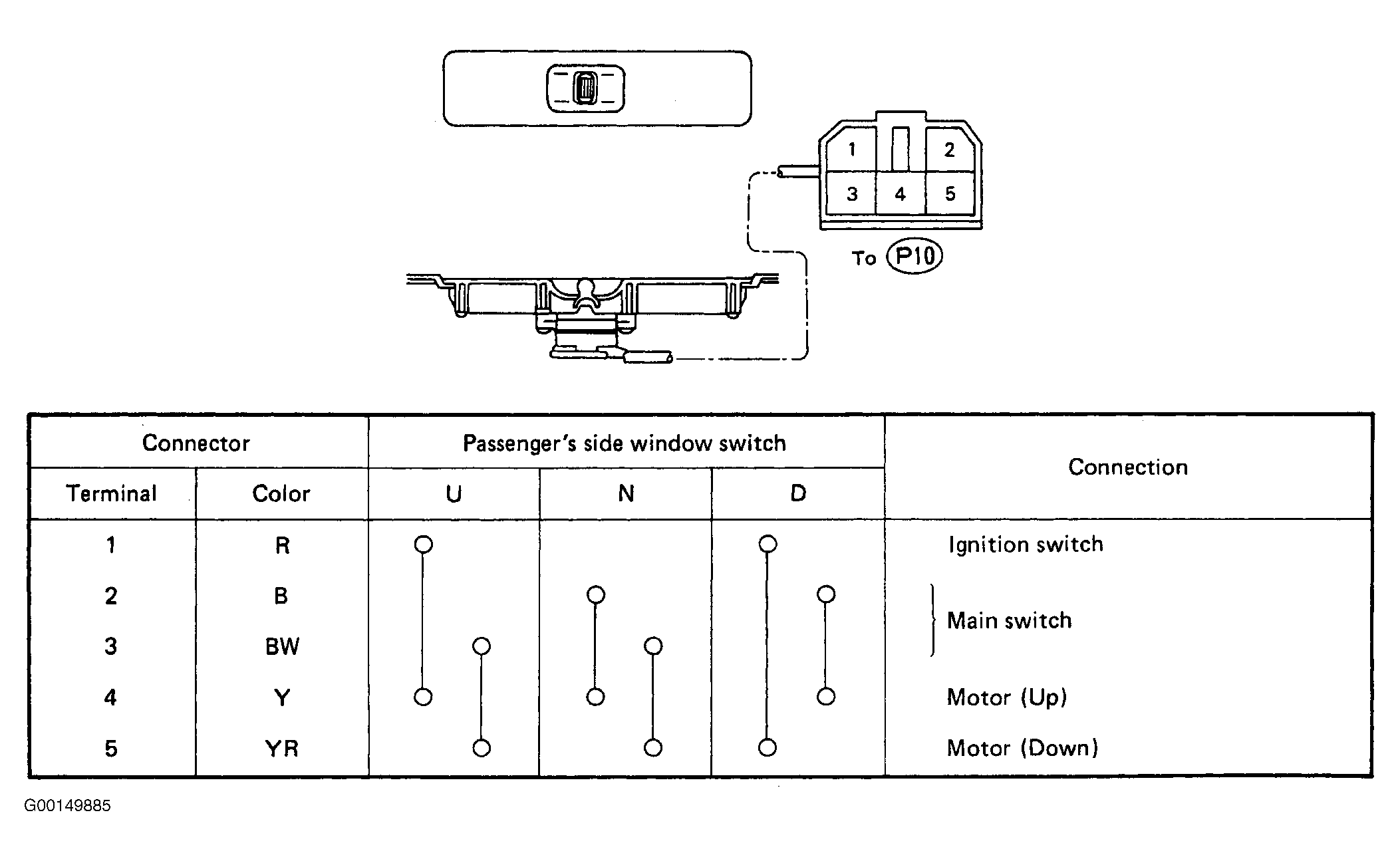

Fig 1: Connector Identification & Continuity Testing
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
