Wiring Diagrams

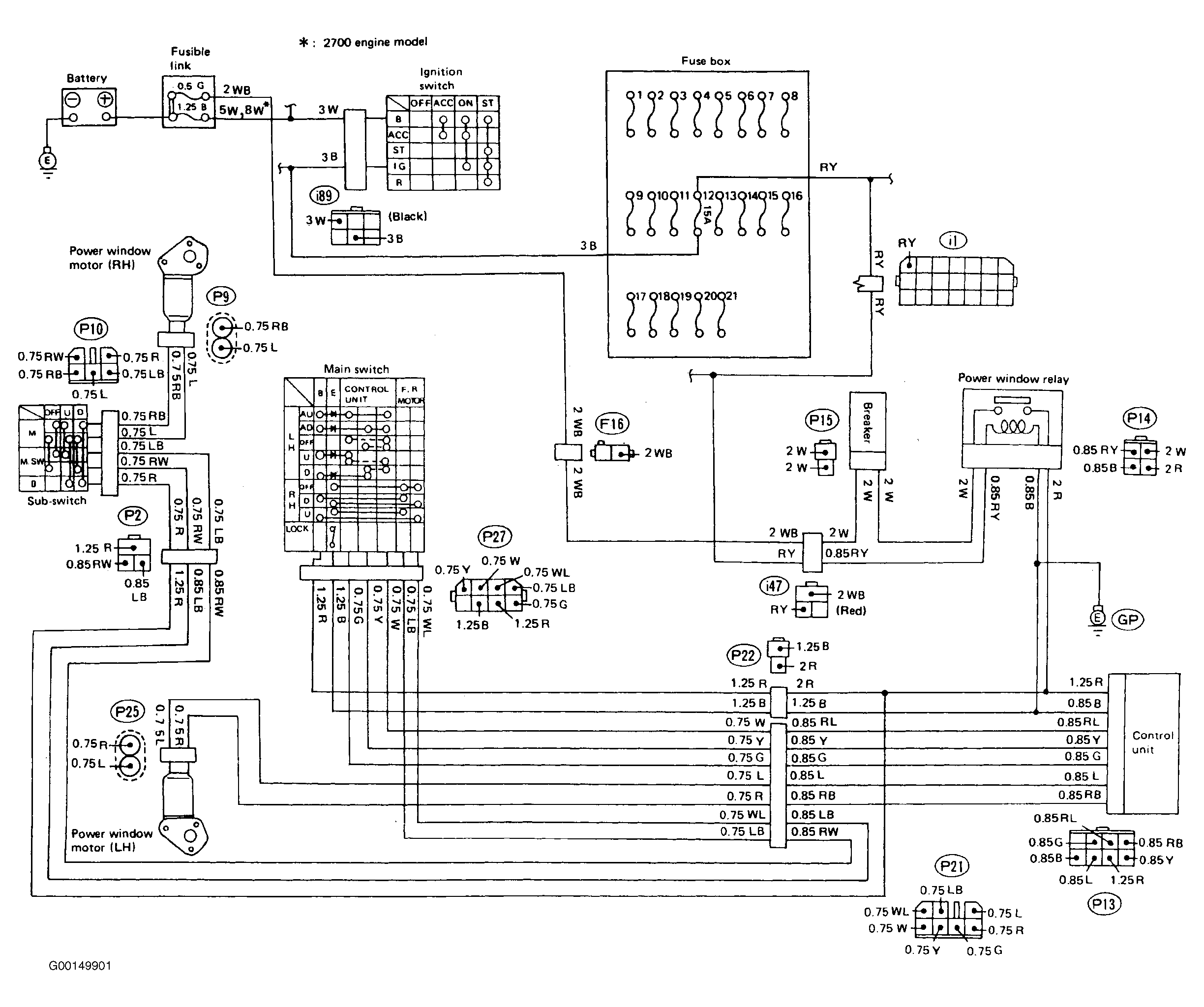

Fig 1: Power Window Wiring Diagram & Switch Testing
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
