3-Cylinder Ignition Timing: Justy

Warm engine to normal operating temperature. Place transmission in Neutral and turn off all accessories. Disconnect test mode and read memory connectors. See Fig 1 .
Start engine and check ignition timing. If necessary, loosen distributor hold-down bolt and adjust ignition timing by rotating distributor. Reconnect test mode and read memory connectors.

3-CYLINDER IGNITION TIMING

Application

⁽¹⁾ Degrees BTDC @ RPM

M/T

5 @ 800

A/T

5 @ 850

⁽¹⁾	With test mode connector connected.

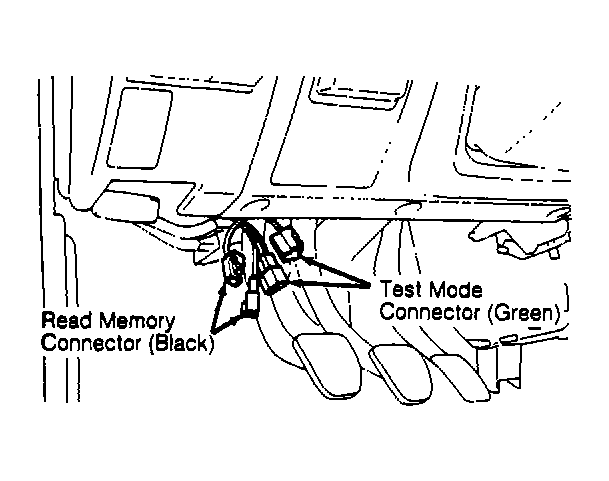

Fig 1: Locating Test Mode & Read Memory Connectors (Justy)

Courtesy of SUBARU OF AMERICA, INC.
