Float Level Adjustment

Invert air horn. Let float hang by its own weight and measure distance between float and air horn gasket surface (gasket removed). If necessary, bend tab "A" to adjust. See Fig 1 . See CARBURETOR ADJUSTMENT SPECIFICATIONS table.

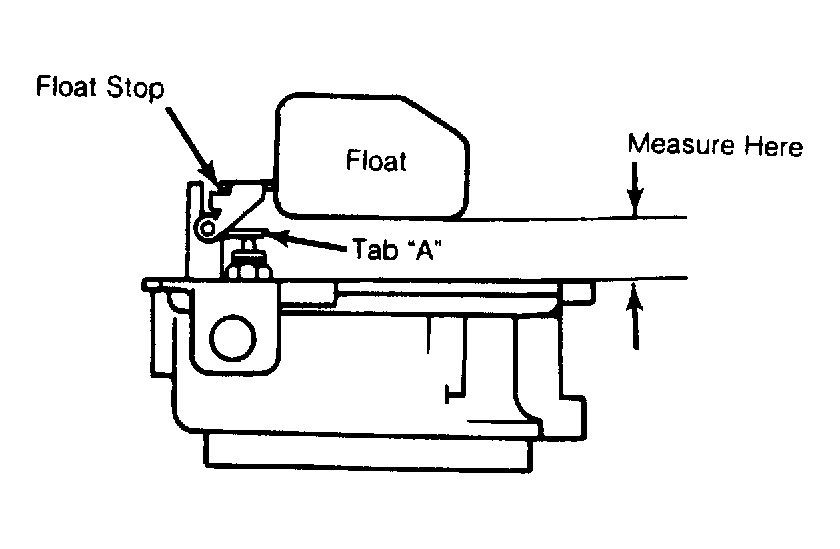

Fig 1: Adjusting Float Level

Courtesy of SUBARU OF AMERICA, INC.
