LOYALE TBI Fuel Pump Circuit Tests

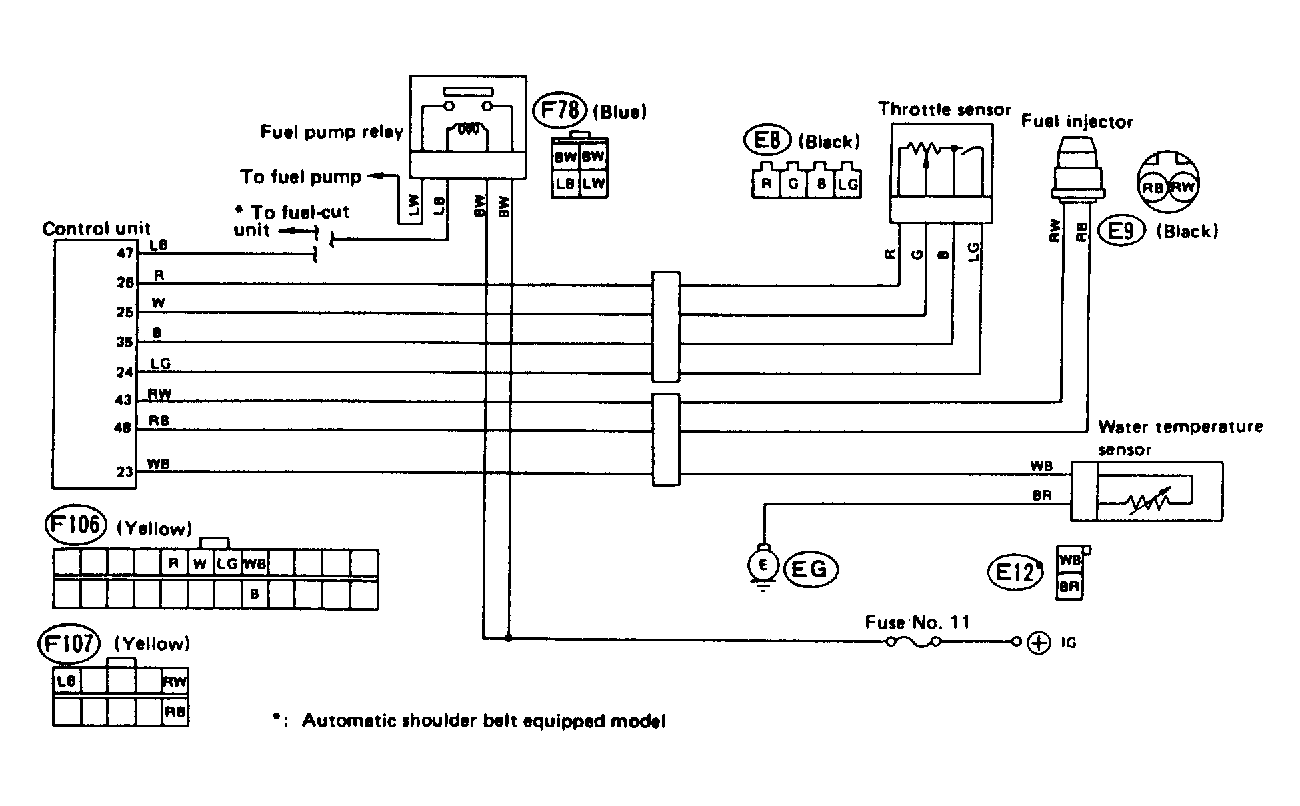

Fig 1: Loyale TBI Fuel Pump Circuit Schematic

Courtesy of SUBARU OF AMERICA, INC.

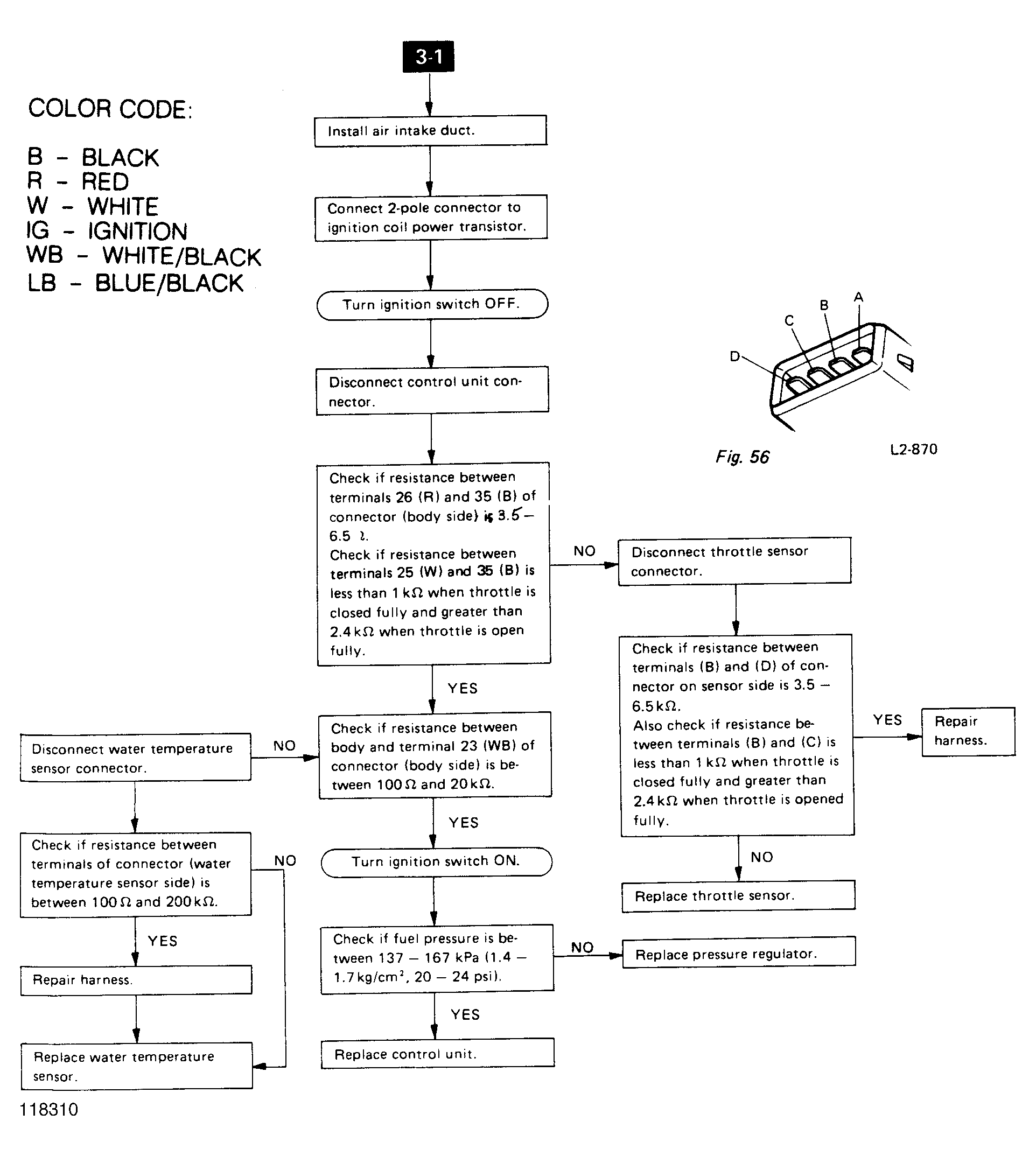

Fig 2: Flow Chart (1 of 3) - Loyale TBI Fuel Pump Circuit

Courtesy of SUBARU OF AMERICA, INC.

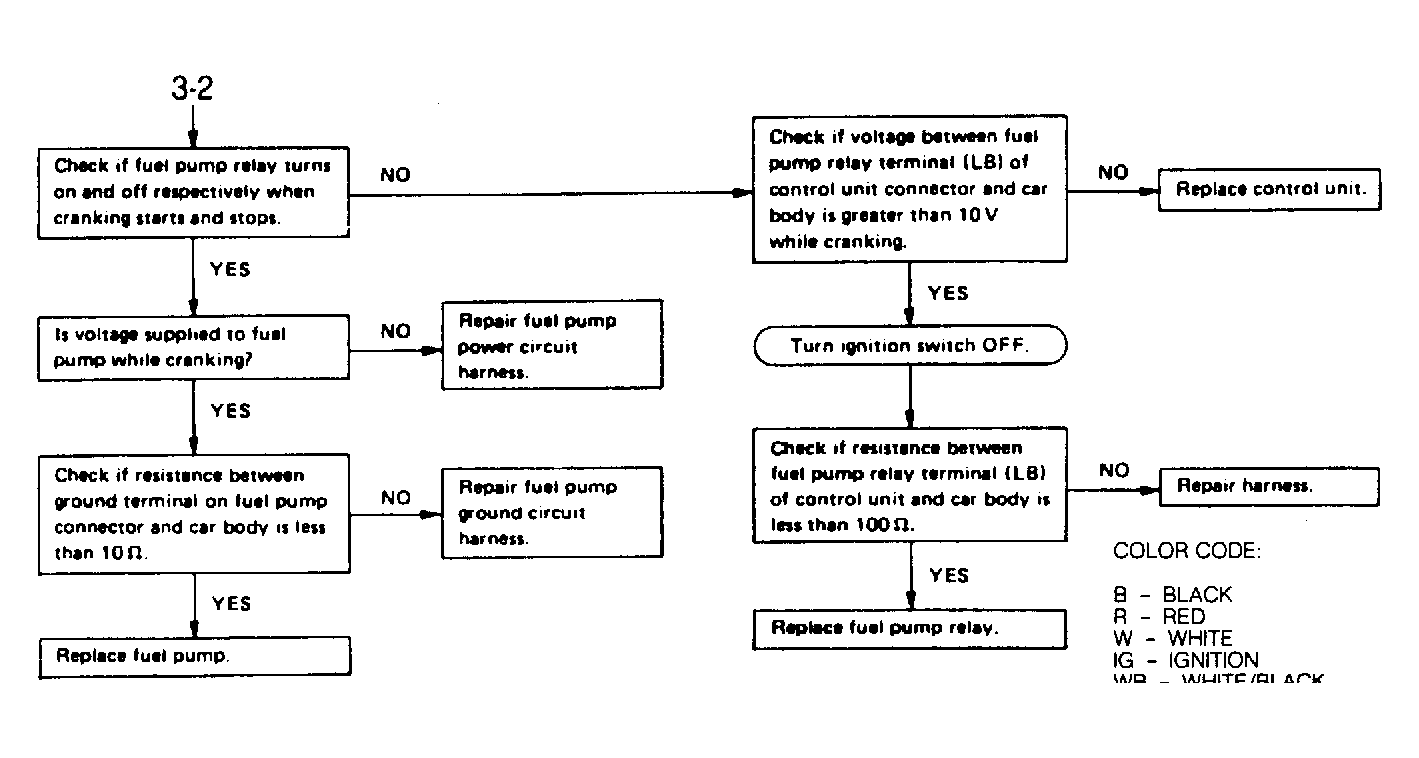

Fig 3: Flow Chart (2 of 3) - Loyale TBI Fuel Pump Circuit

Courtesy of SUBARU OF AMERICA, INC.

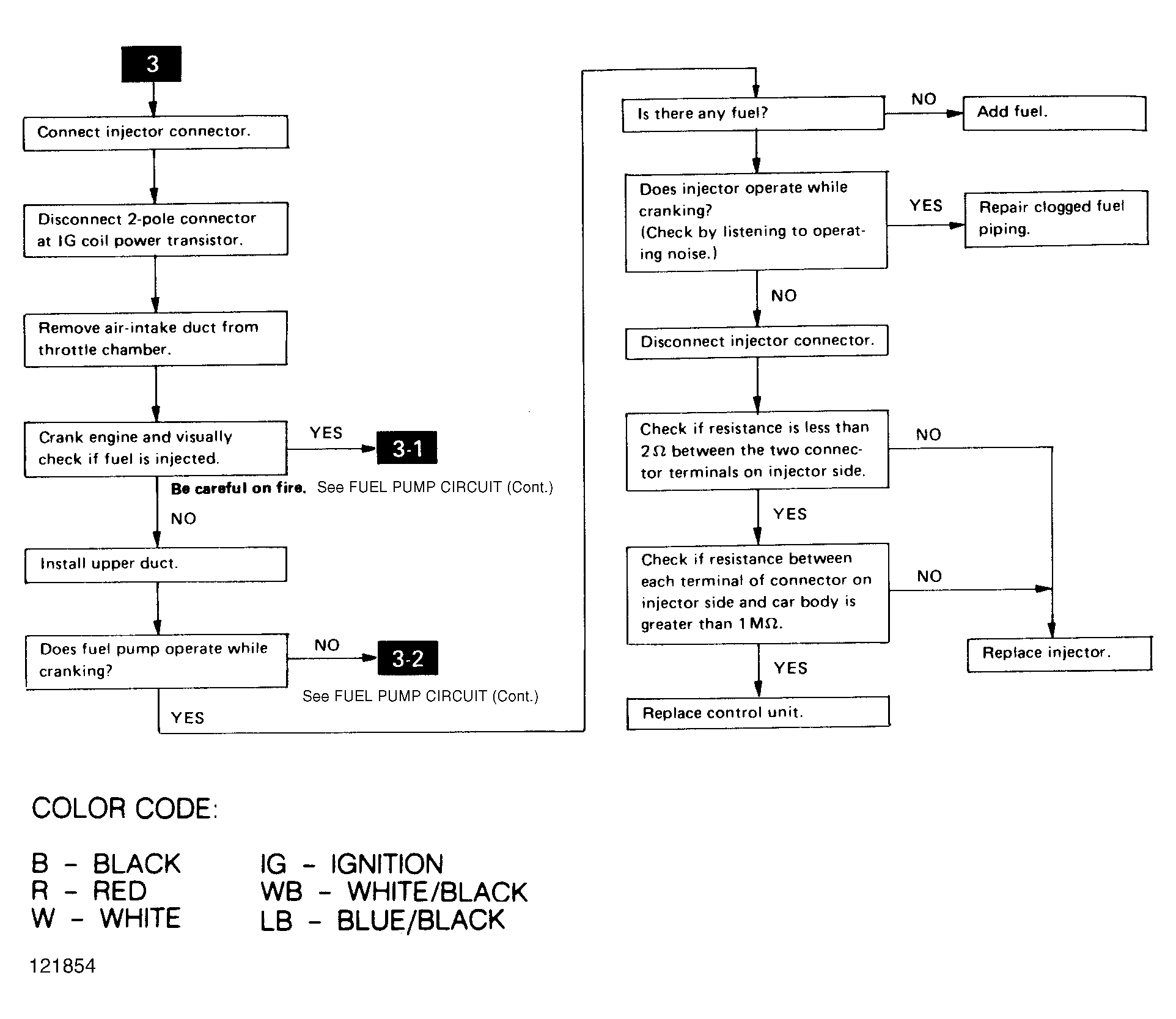

Fig 4: Flow Chart (3 of 3) - Loyale TBI Fuel Pump Circuit

Courtesy of SUBARU OF AMERICA, INC.
