Code 11: Crank Angle Sensor

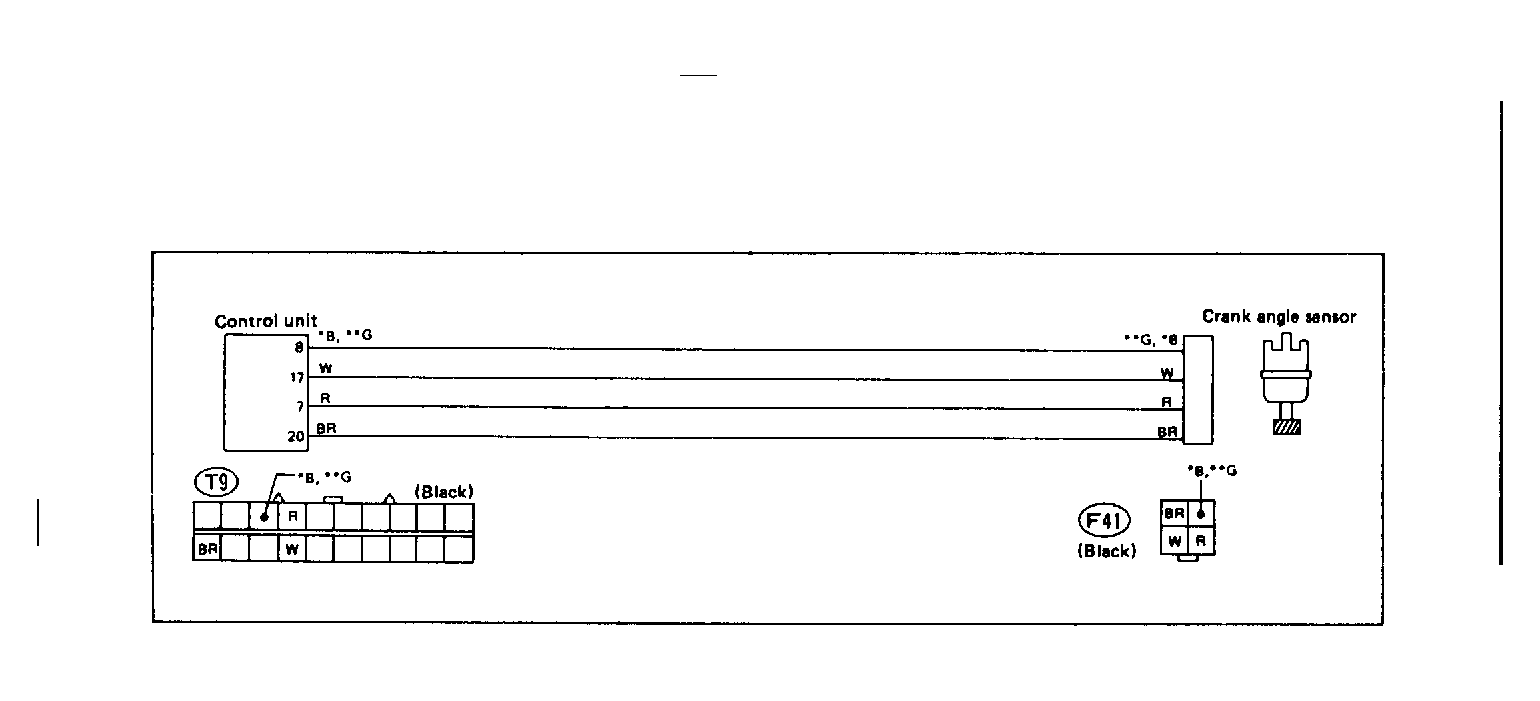

Fig 1: Wiring Schematic - Code 11, Crank Angle Sensor
G118380

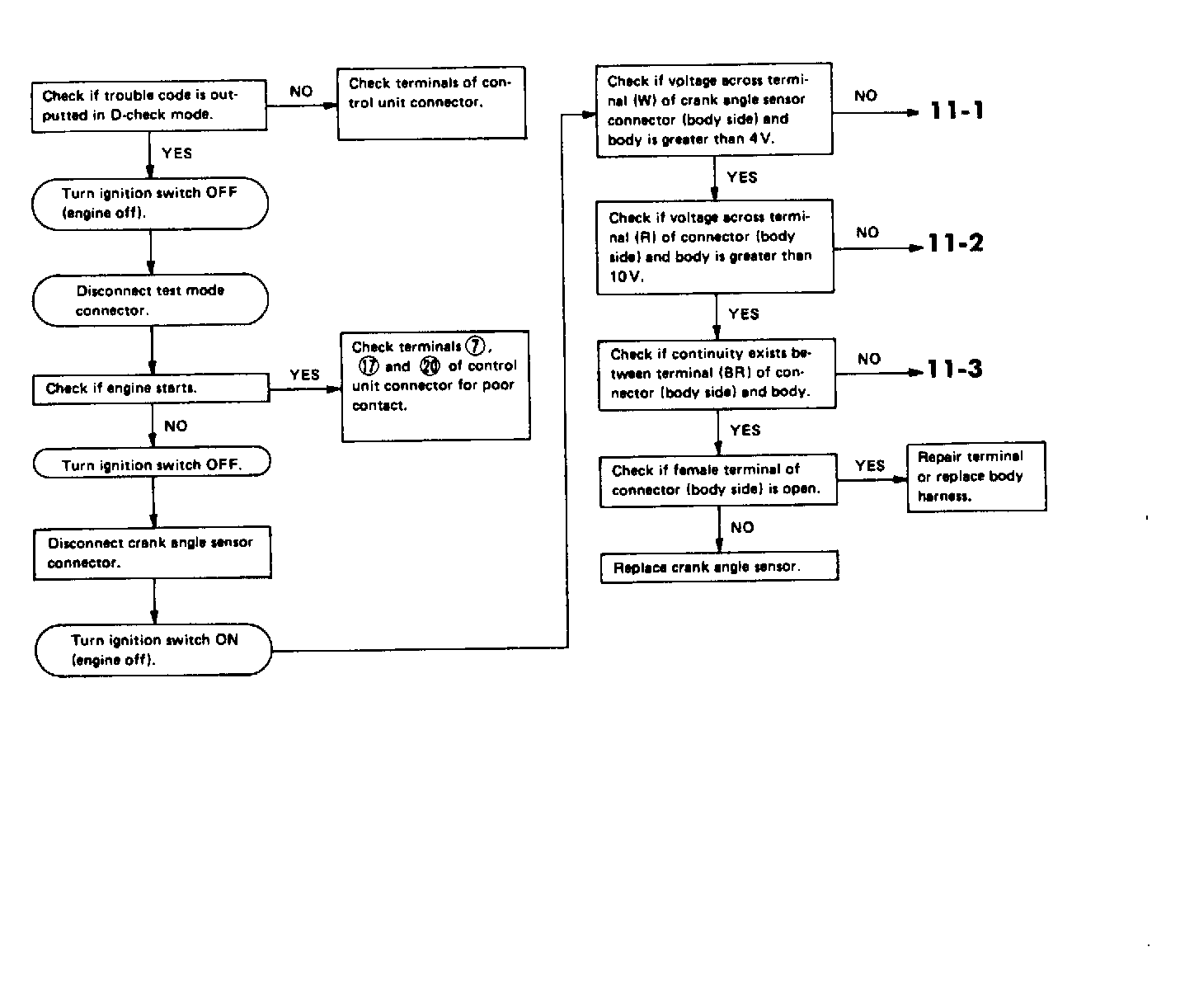

Fig 2: Flow Chart (1 of 2) - Code 11, Crank Angle Sensor
G121902

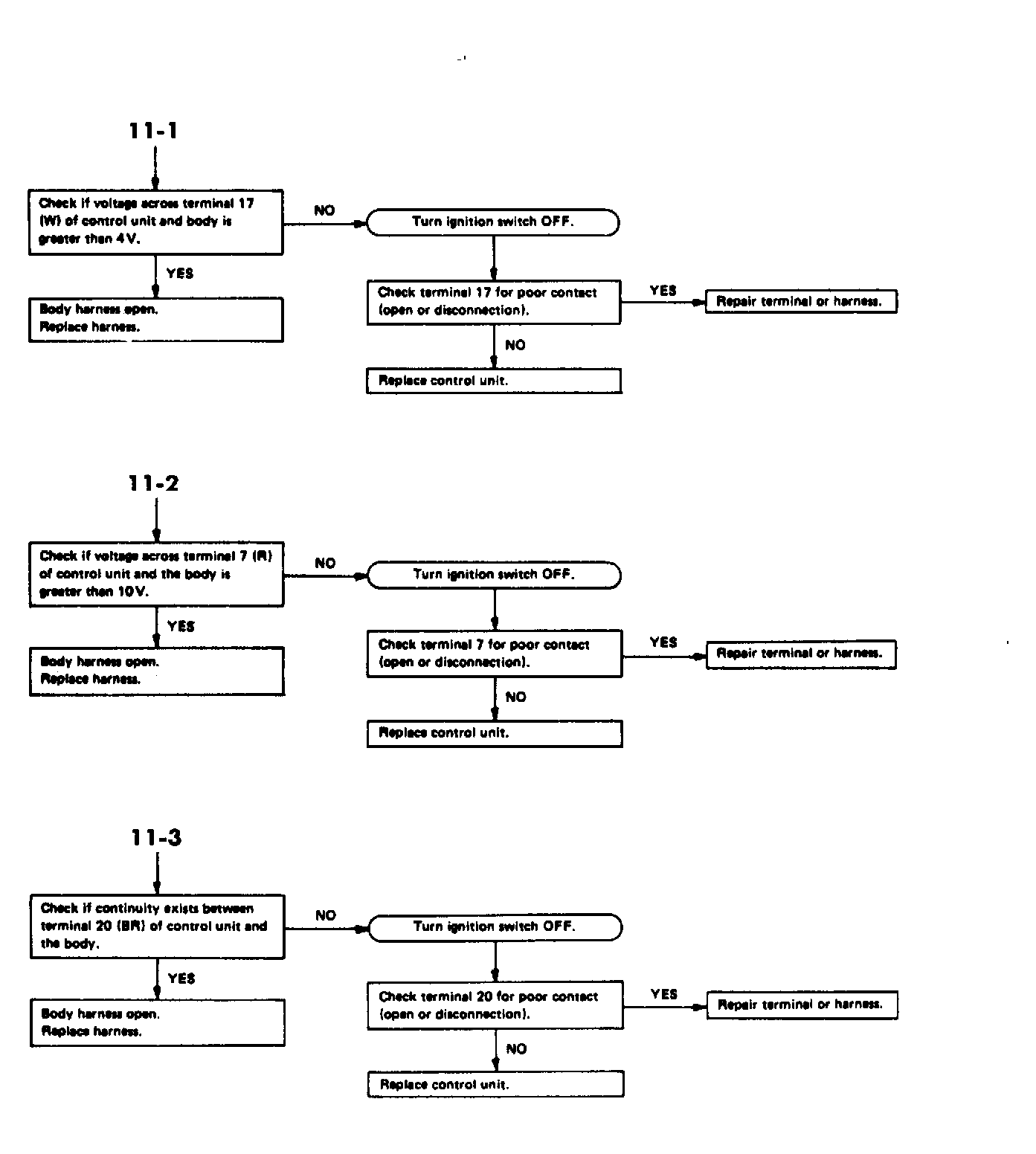

Fig 3: Flow Chart (2 of 2) - Code 11, Crank Angle Sensor
G118381
