Code 12: Starter Switch

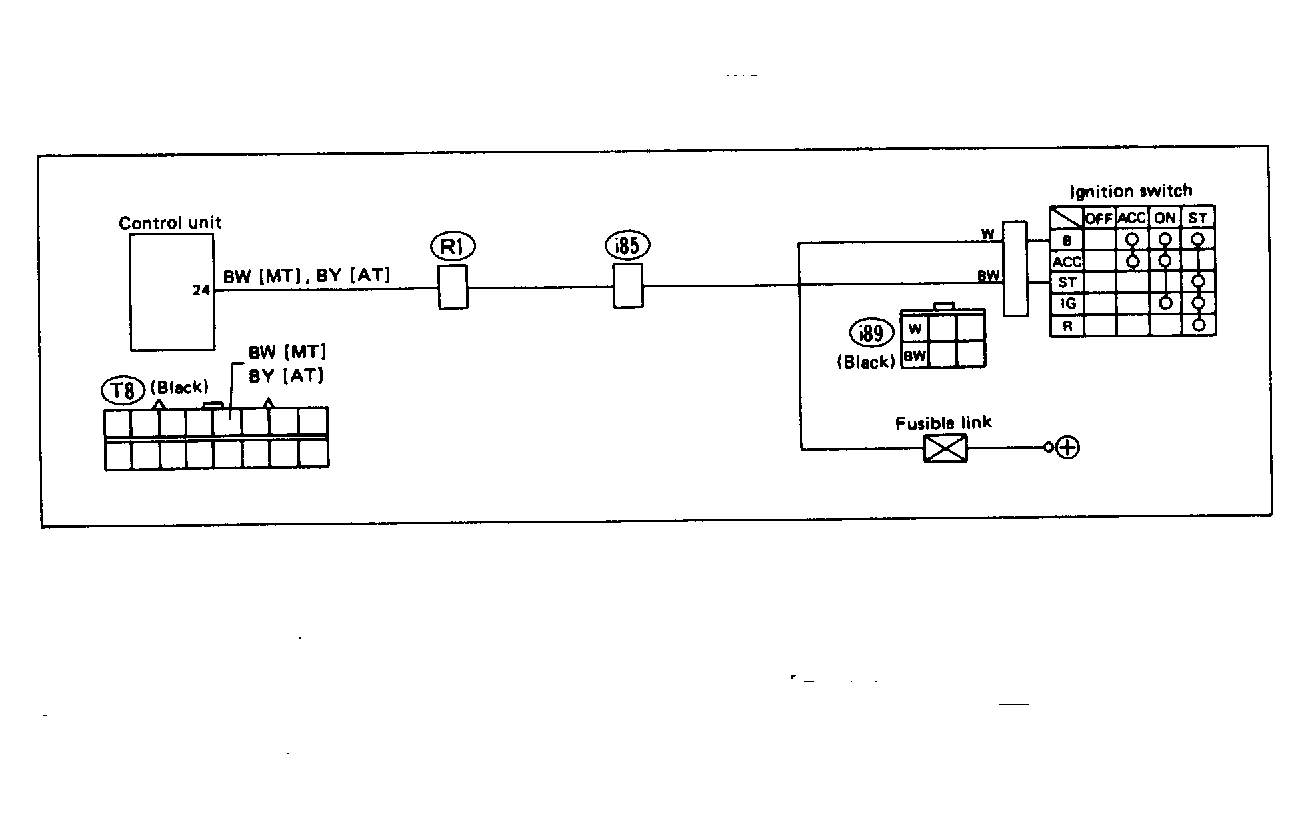

Fig 1: Wiring Schematic - Code 12, Starter Switch

G118382

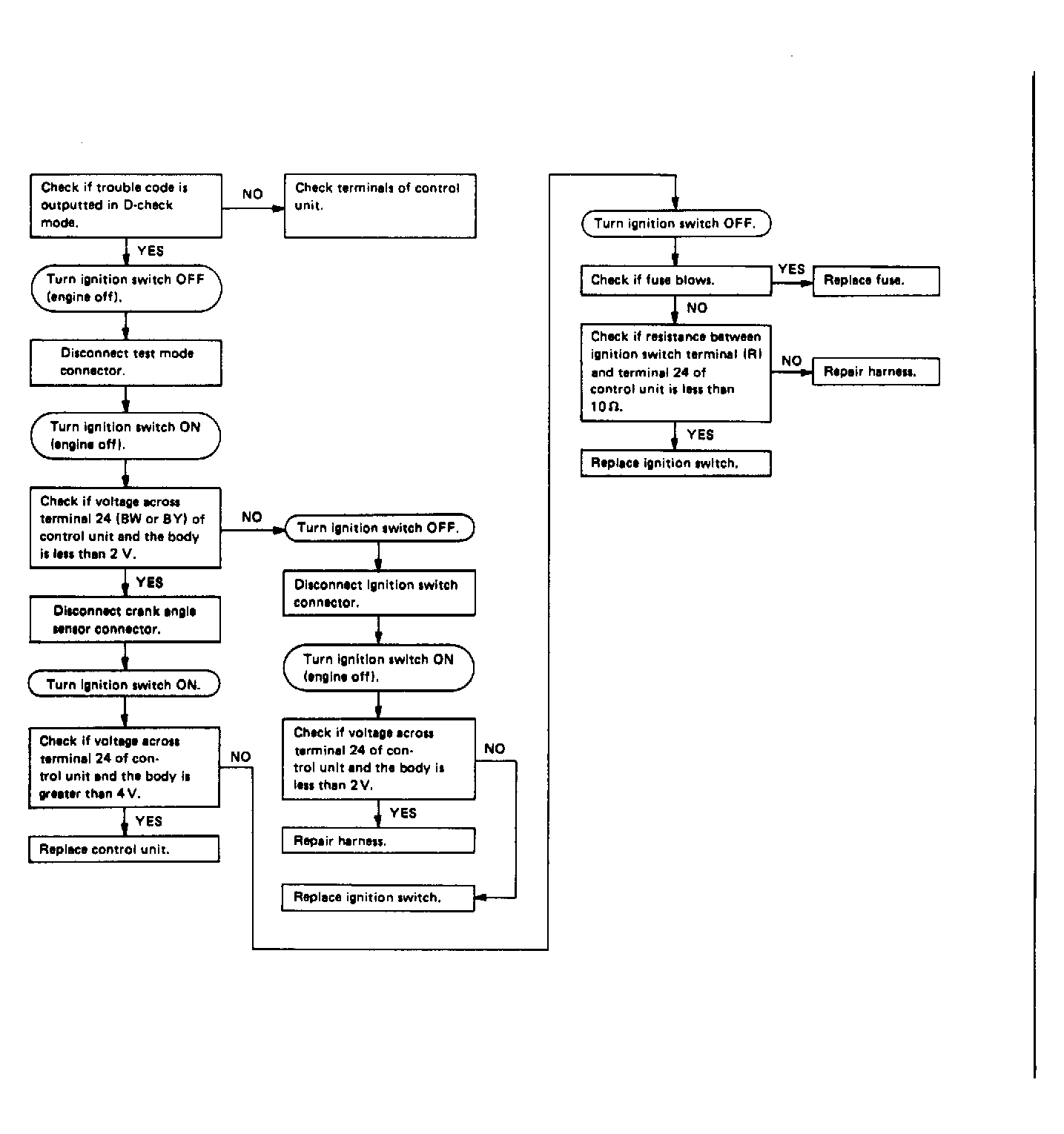

Fig 2: Flow Chart - Code 12, Starter Switch

G121903
