Code 23: Airflow Meter Circuit

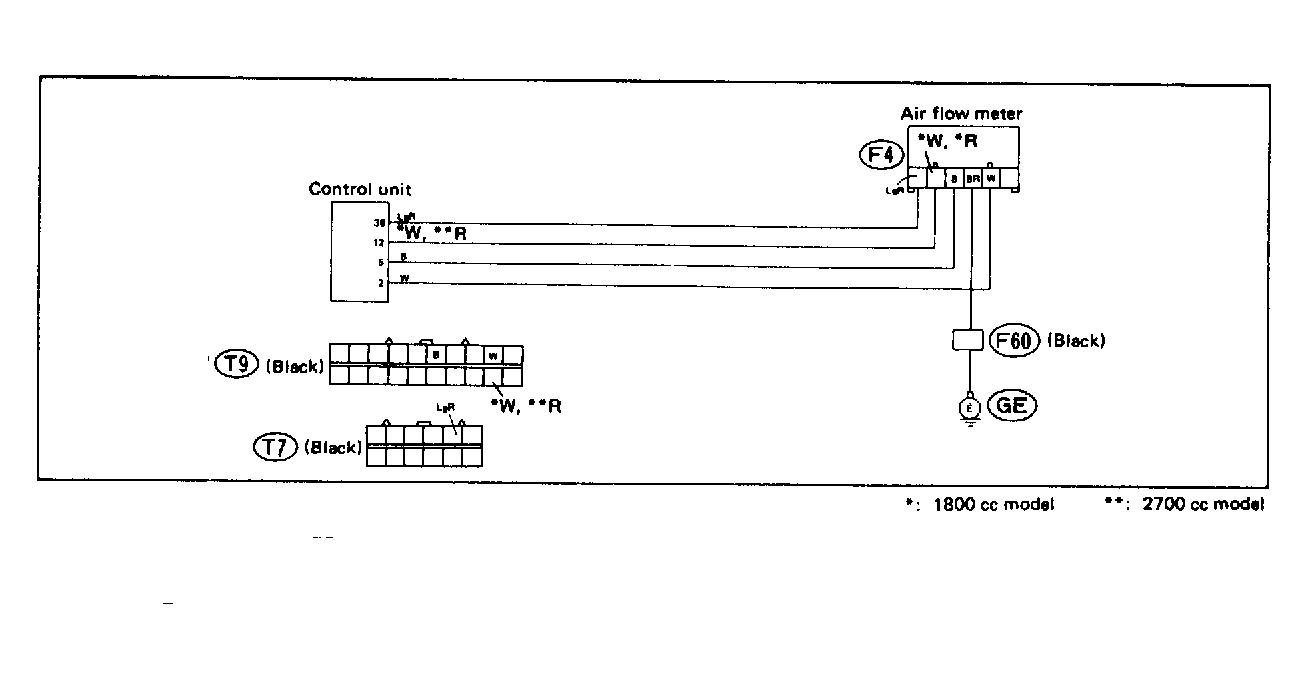

Fig 1: Wiring Schematic - Code 23, Airflow Meter Circuit
G118391

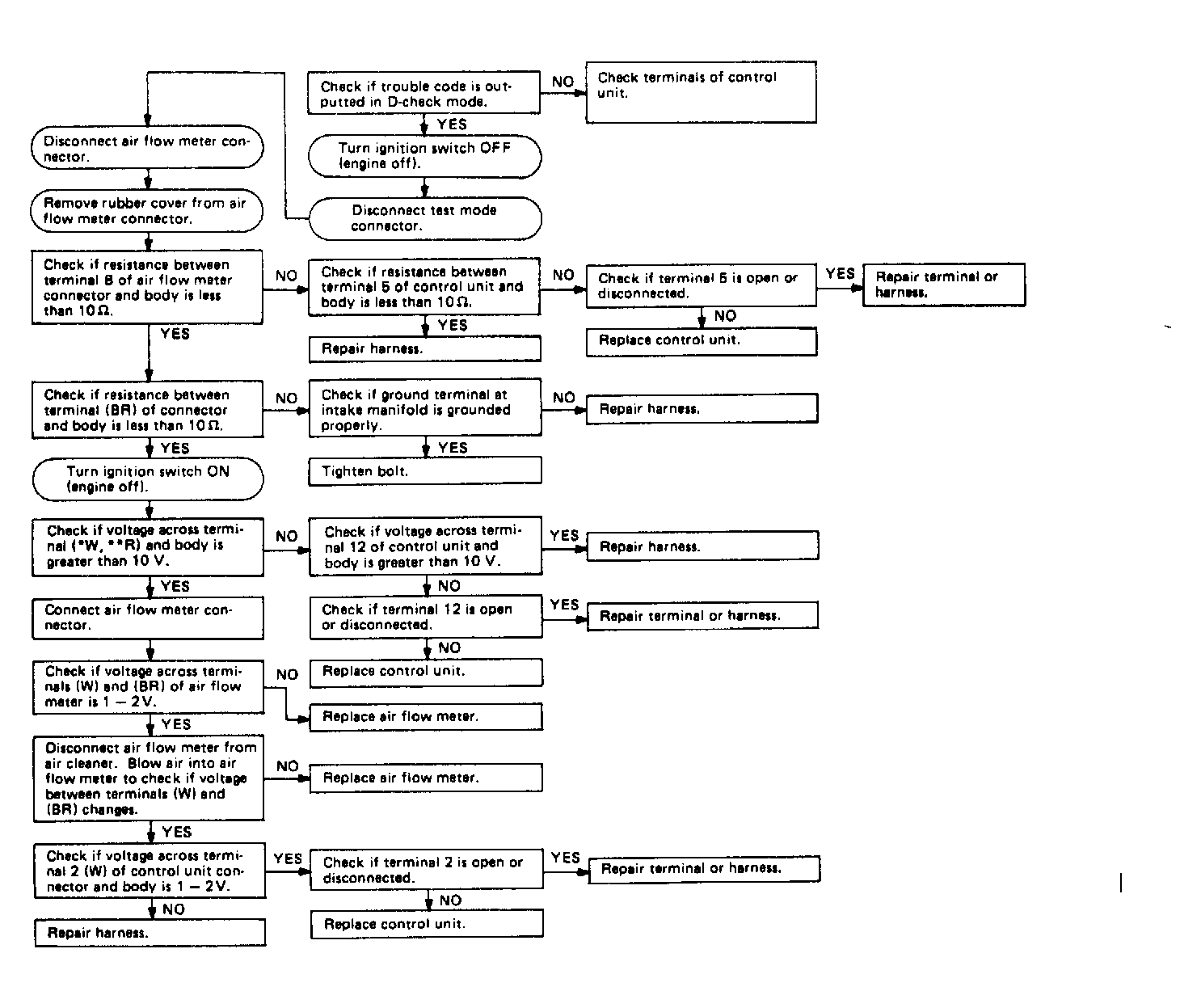

Fig 2: Flow Chart - Code 23, Airflow Meter Circuit
G121911
