Code 25: Fuel Injectors

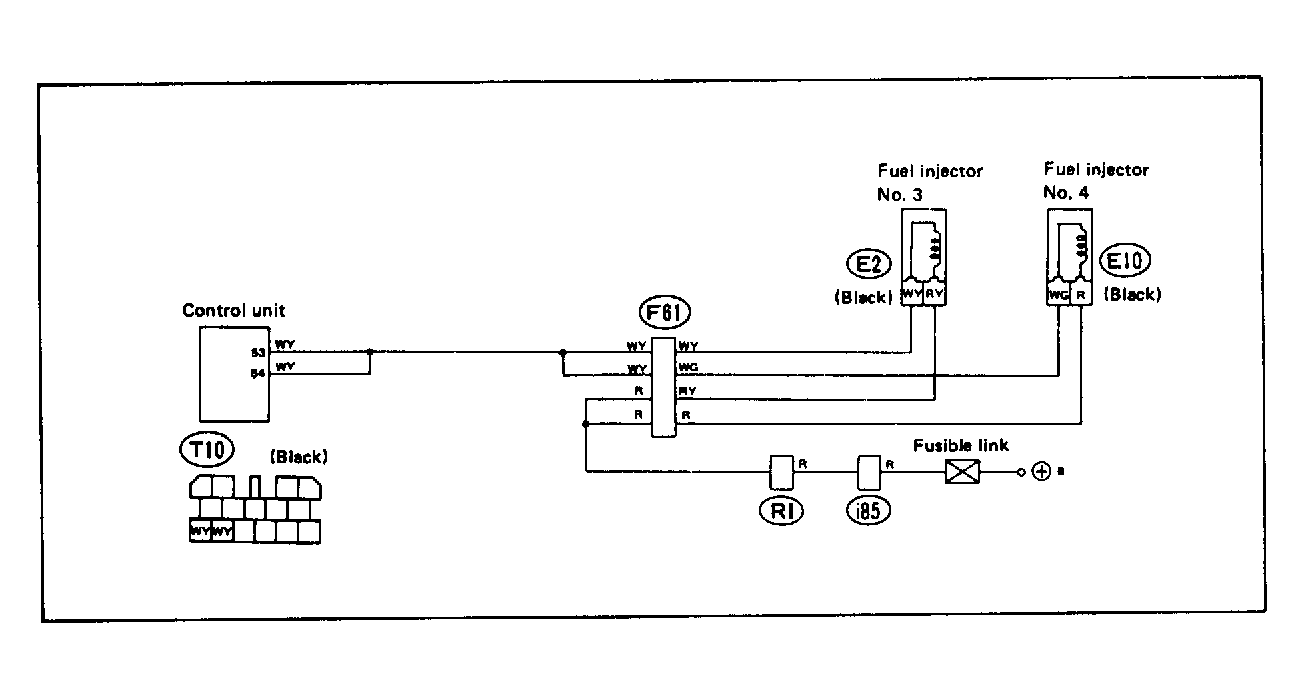

Fig 1: Wiring Schematic - Code 25, Injectors 3 & 4 (6-Cyl. XT6)
G118393

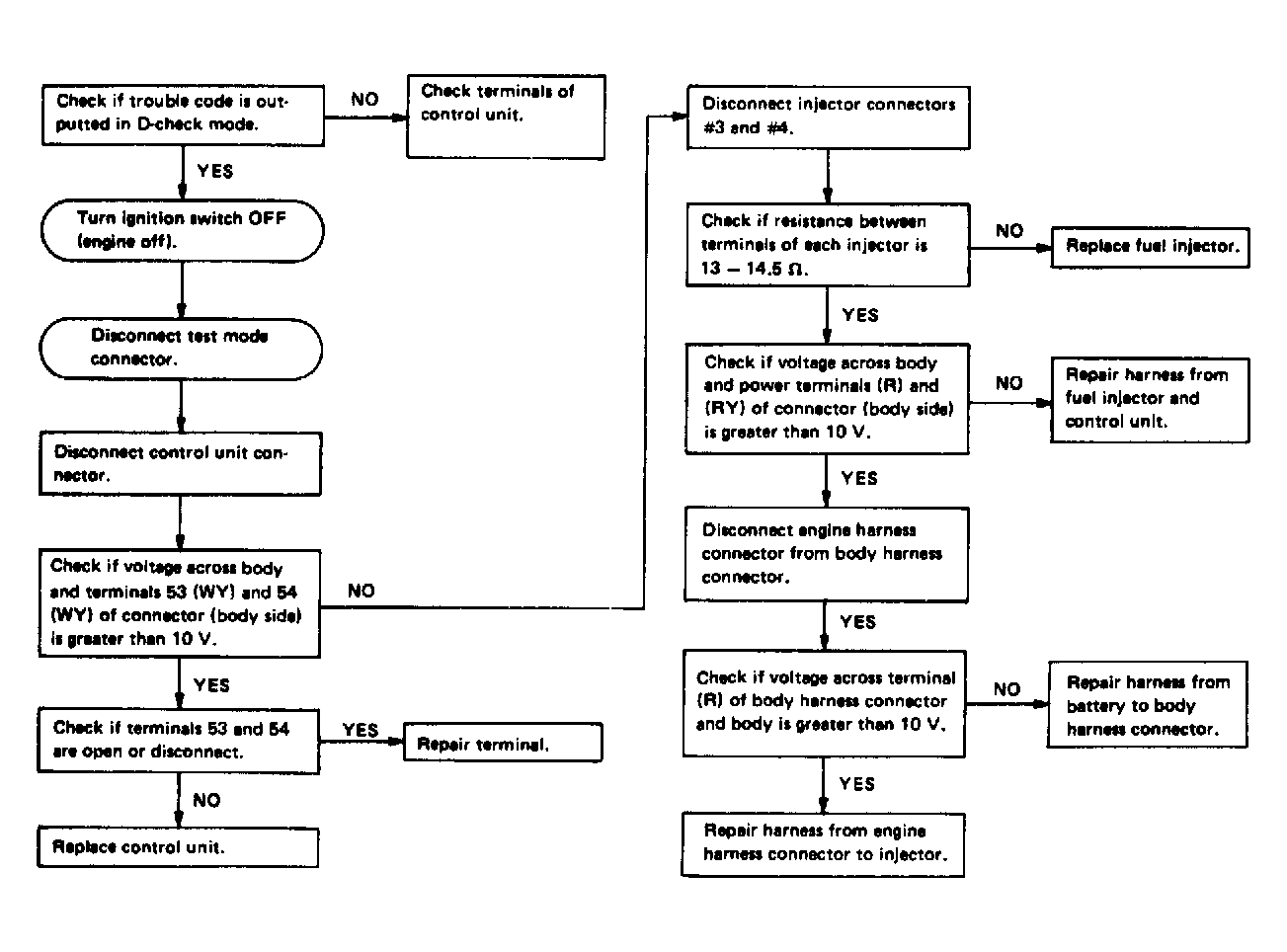

Fig 2: Flow Chart - Code 25, Injectors 3 & 4 (6-Cyl. XT6)
G121913
