Code 31: Throttle Position Sensor

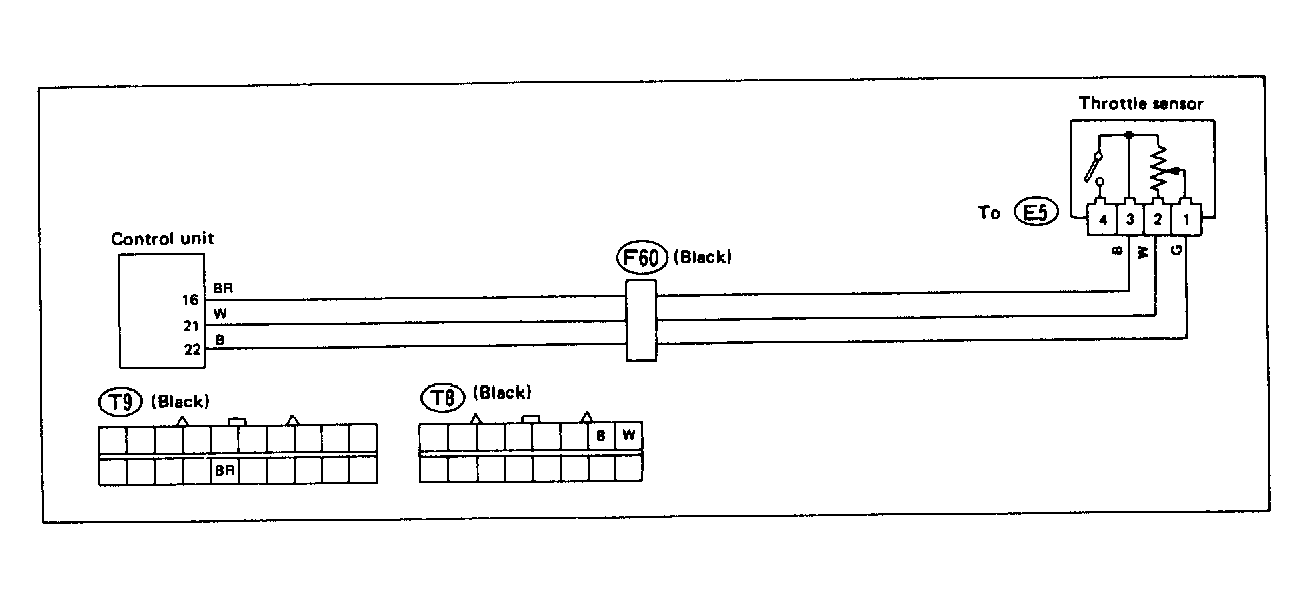

Fig 1: Wiring Schematic - Code 31, TPS Sensor (4-Cyl. XT)

G118394

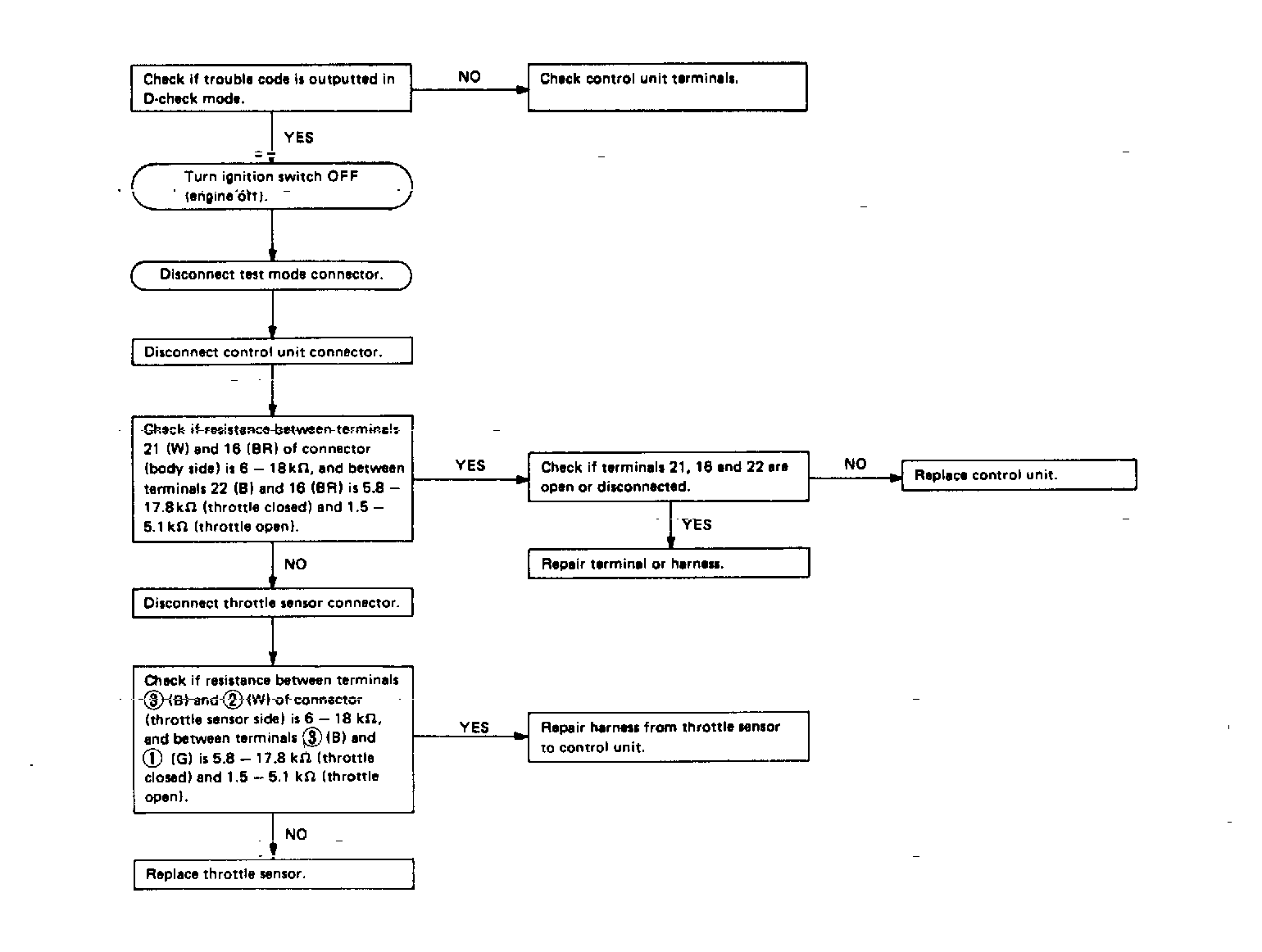

Fig 2: Flow Chart - Code 31, TPS Sensor (4-Cyl. XT)

G121914

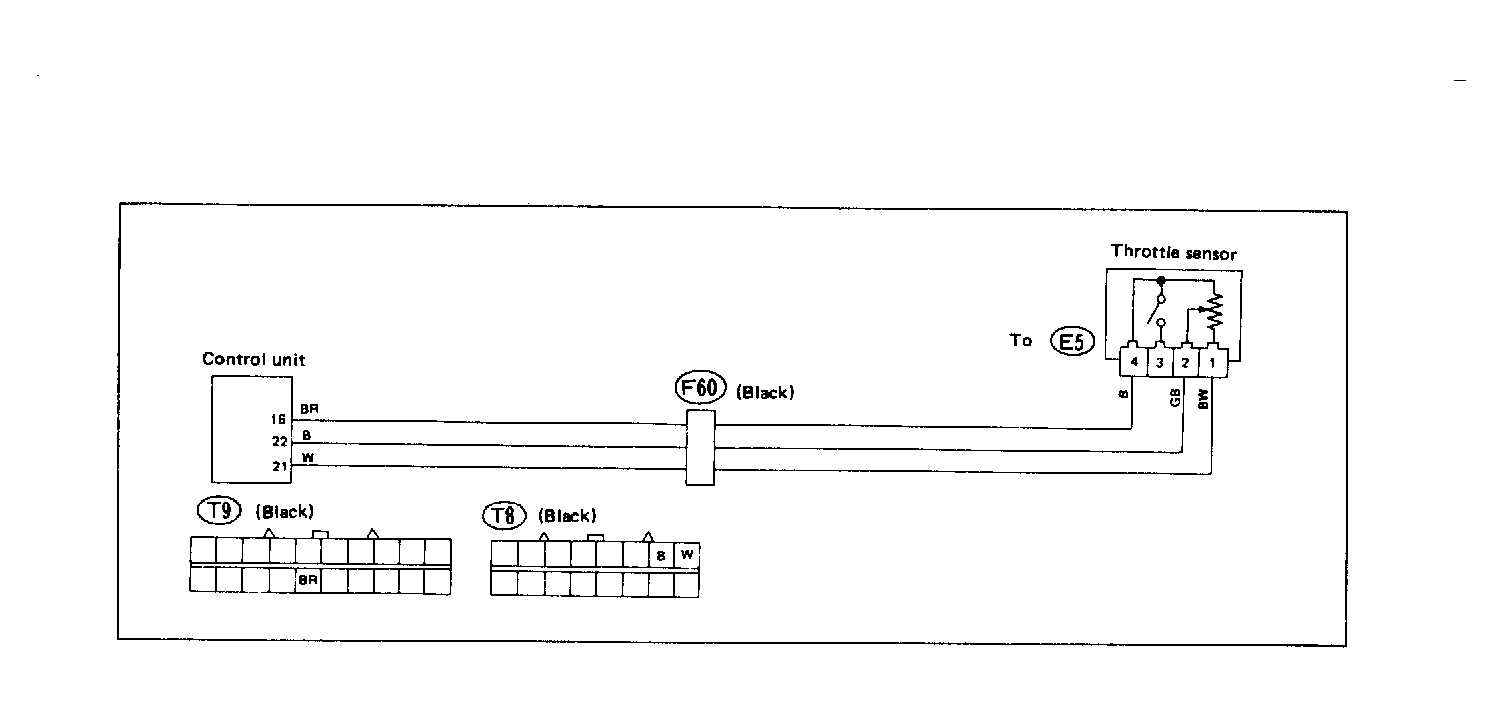

Fig 3: Wiring Schematic - Code 31, TPS Sensor (6-Cyl. XT6)

G118395

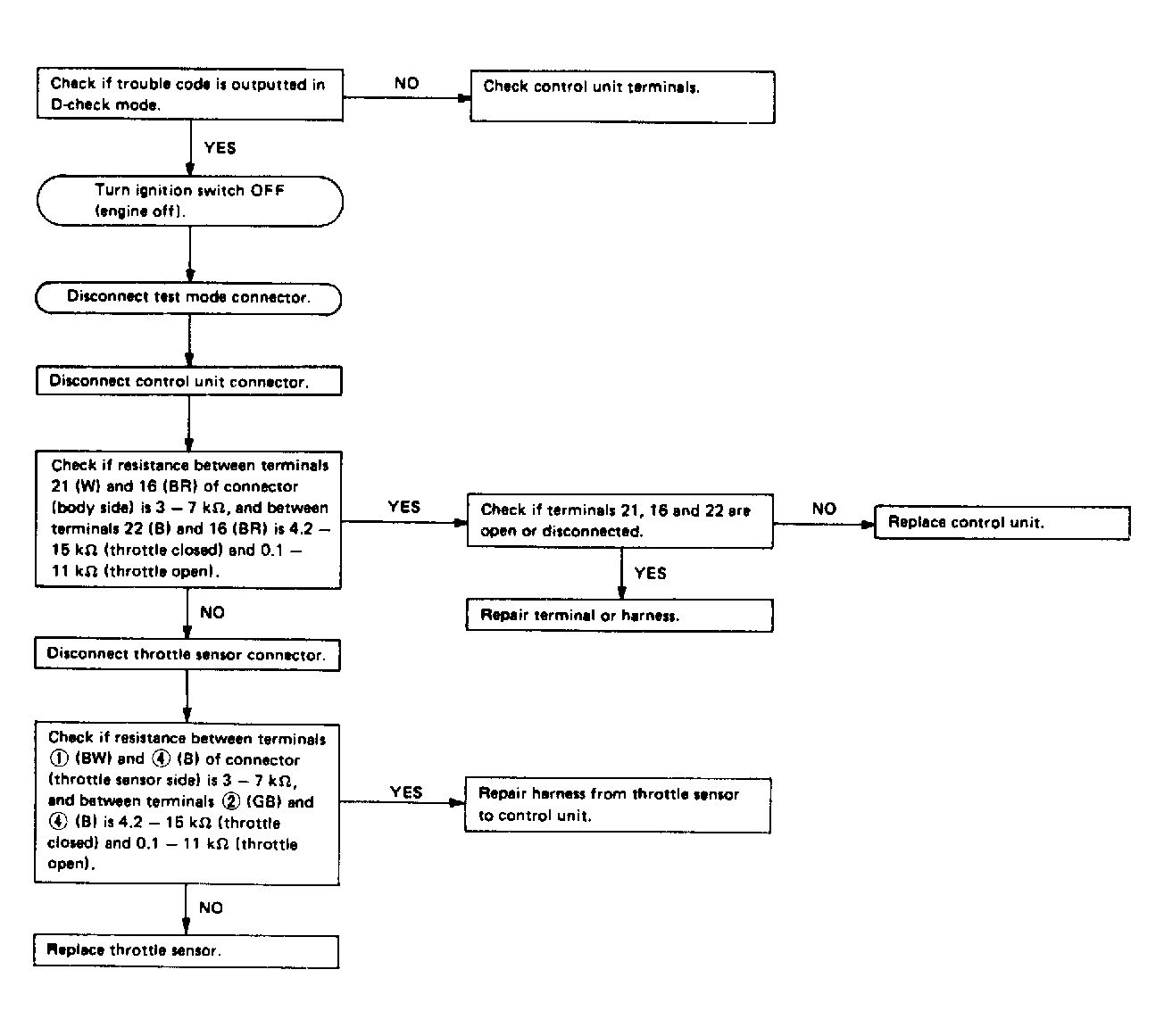

Fig 4: Flow Chart - Code 31, TPS Sensor (6-Cyl. XT6)

G121915
