Code 33: Vehicle Speed Sensor

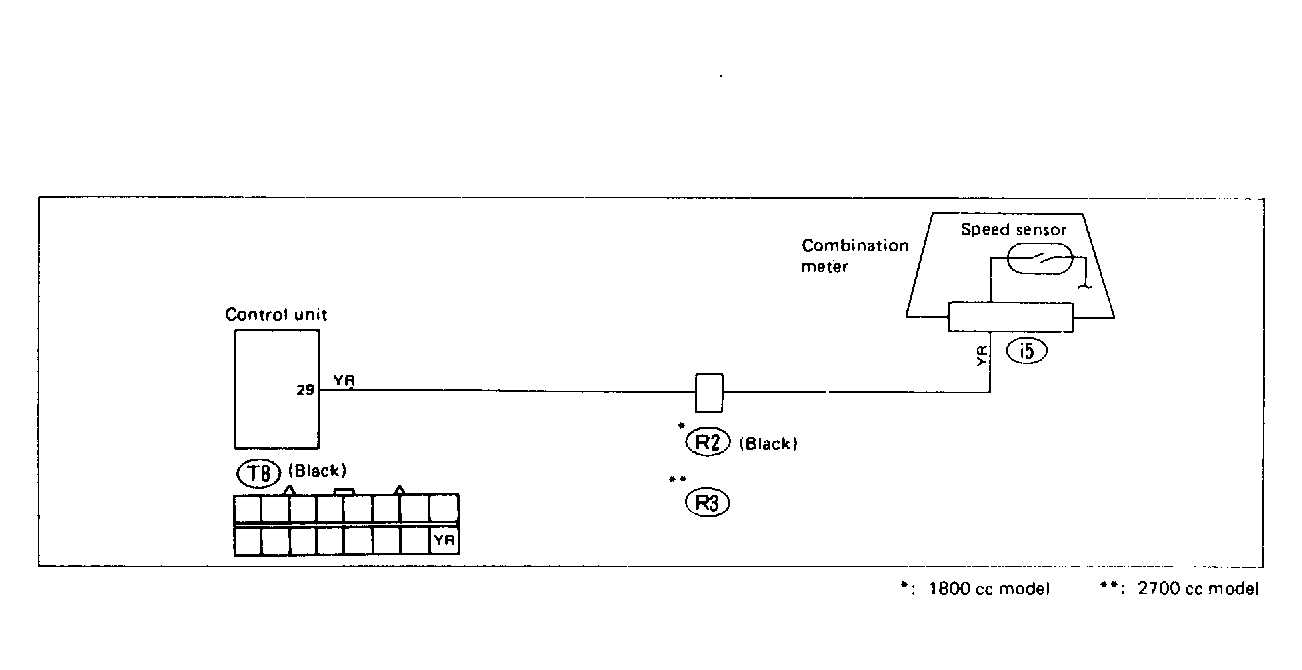

Fig 1: Wiring Schematic - Code 33, Vehicle Speed Sensor
G118397

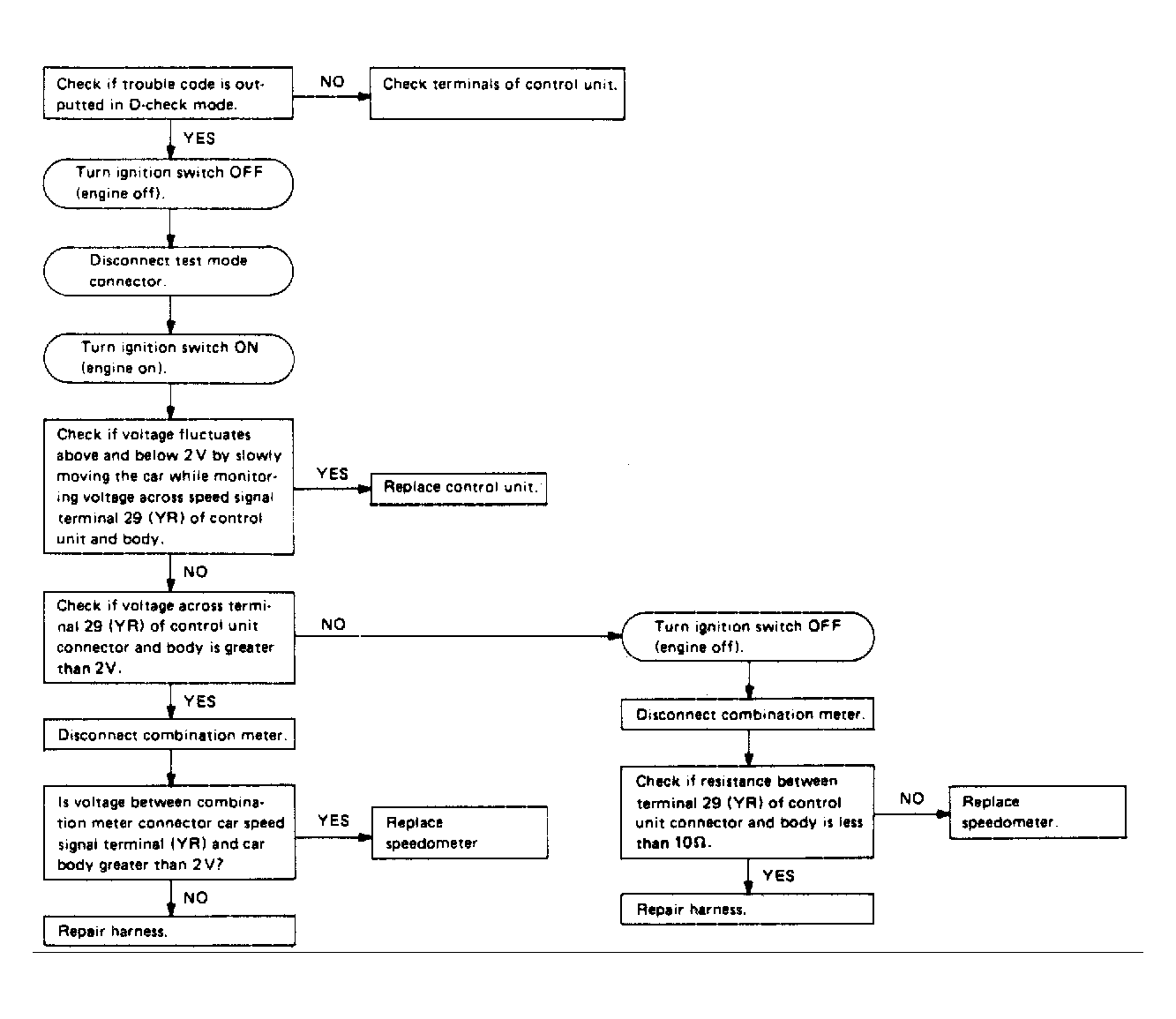

Fig 2: Flow Chart - Code 33, Vehicle Speed Sensor
G121917
