Code 51: Throttle Switch

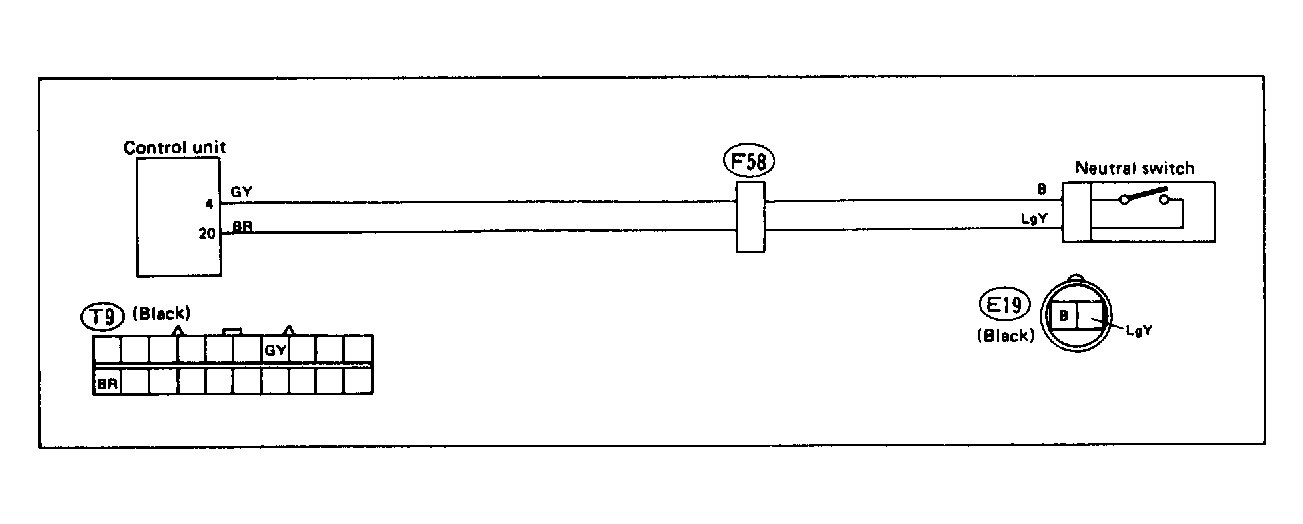

Fig 1: Wiring Schematic - Code 51, Neutral Switch

G118400

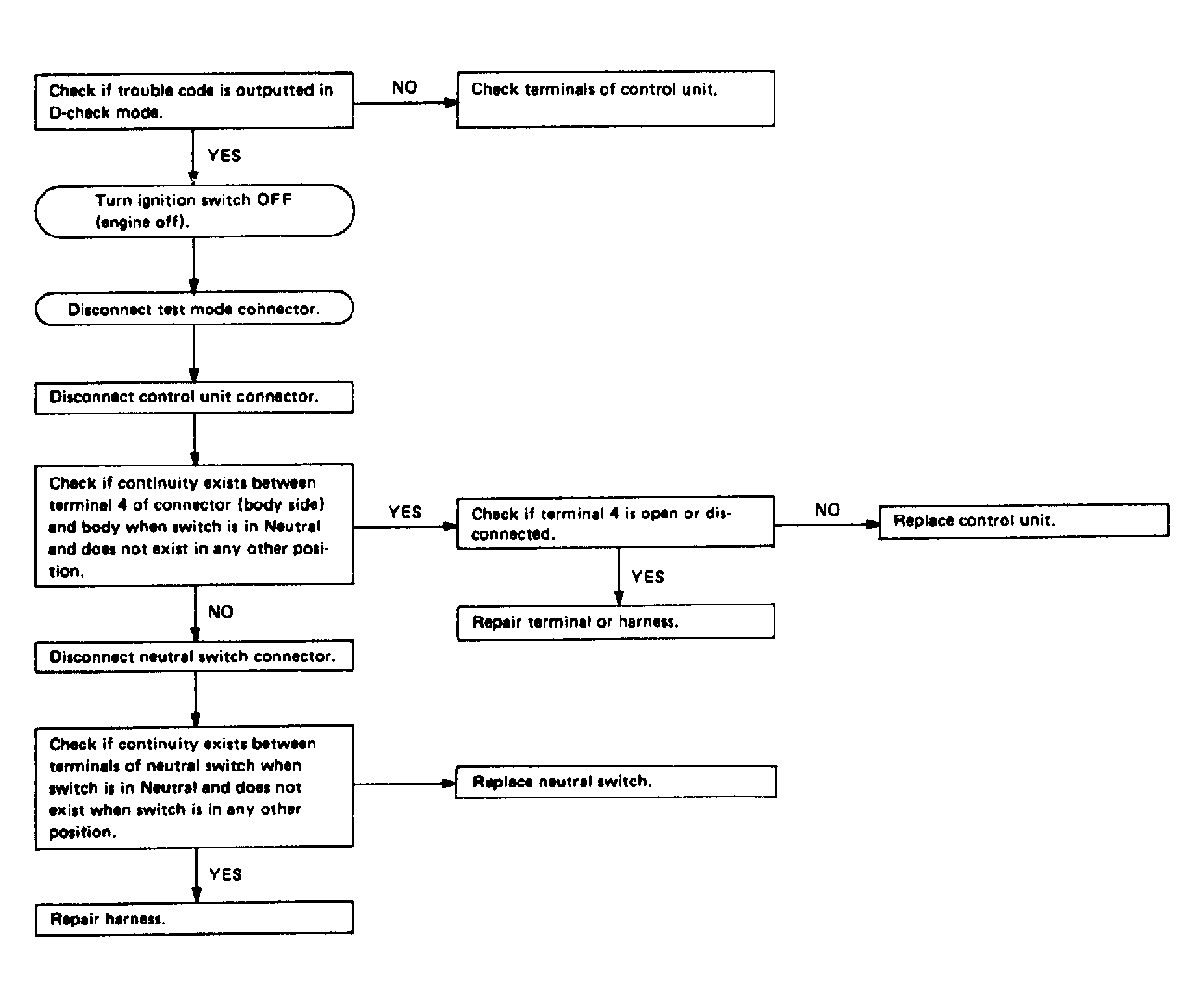

Fig 2: Flow Chart - Code 51, Neutral Switch

G121920
