Window Regulator: Removal

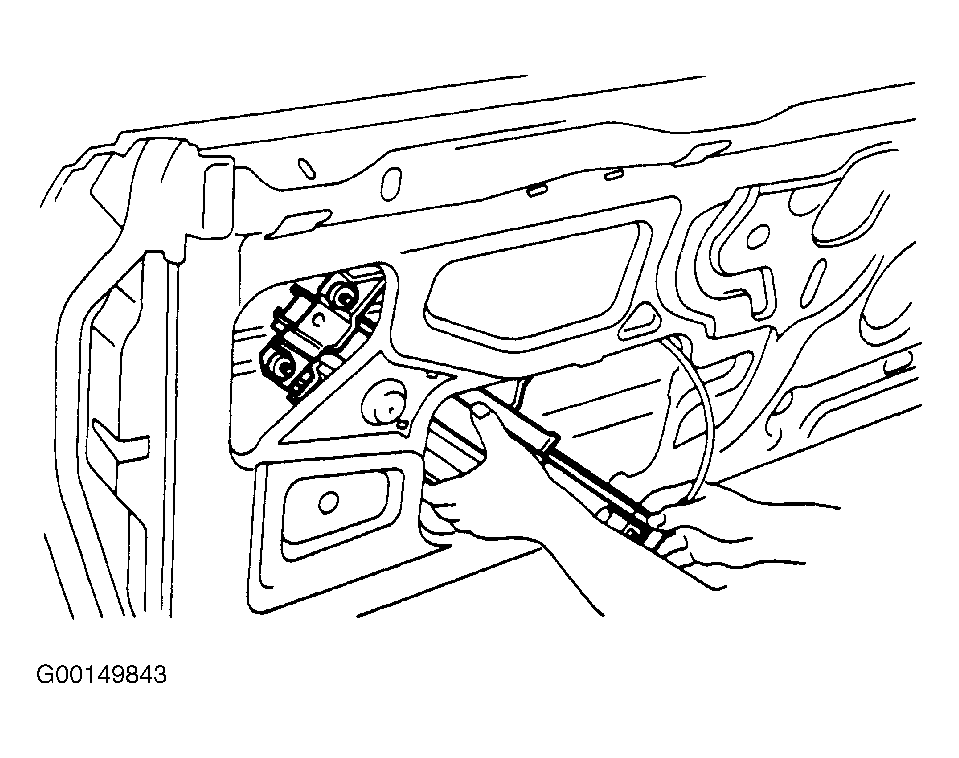

- Remove trim panel. See Fig 1 .
- Remove door pull handle.
- Remove sealing cover.
- Remove rearview mirror from door.
- Remove outer weatherstrip
- Remove inner stabilizer
- Remove front and rear upper stoppers from door.
- Remove door glass.
- Remove wire clip (manual type only).
- Remove regulator base plate and regulator rail.
- Take out regulator ASSY through service hole in lower door panel.
