XT6 Fuel Pump Circuit Tests

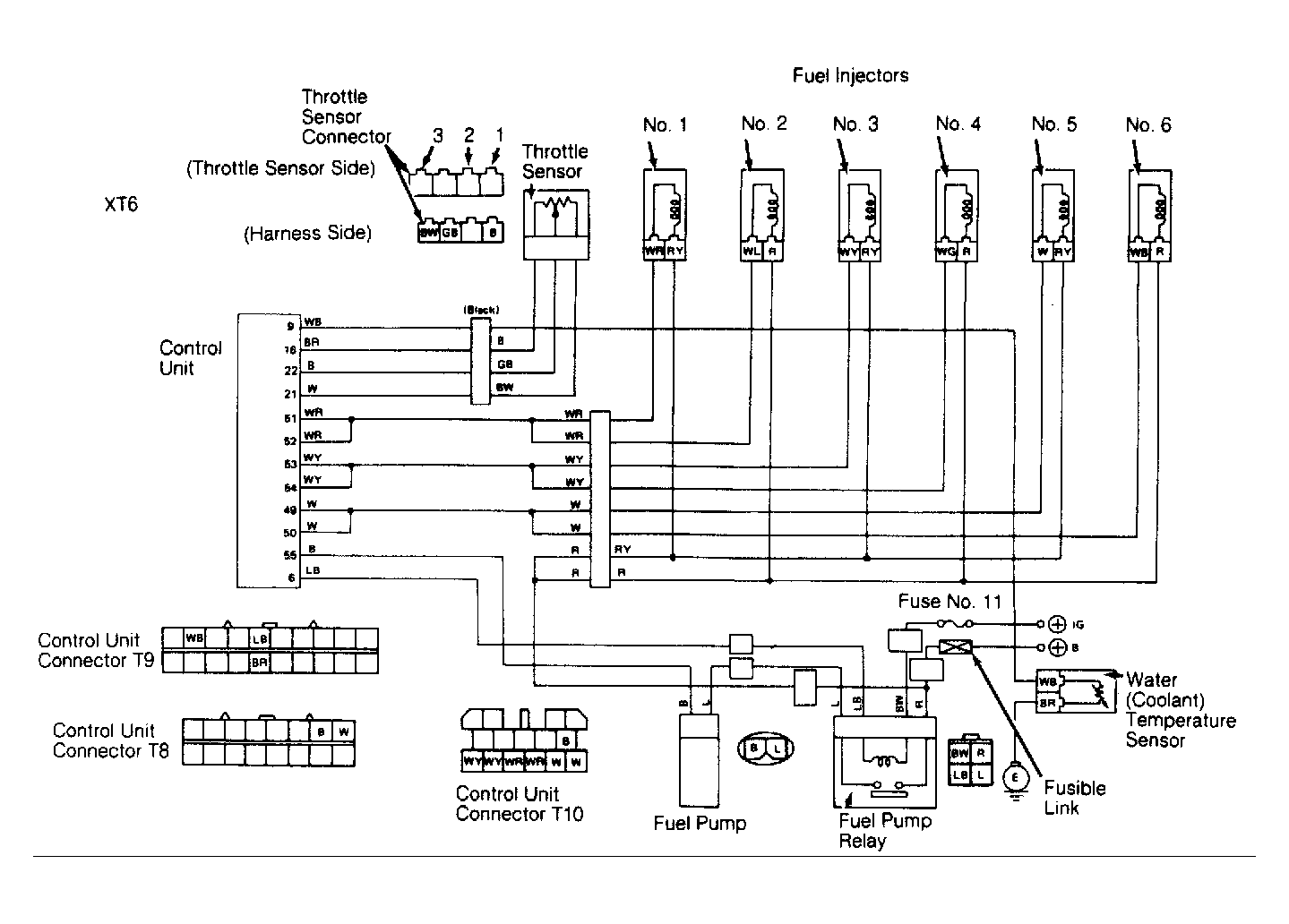

Fig 1: XT6 Fuel Pump Circuit Schematic

Courtesy of SUBARU OF AMERICA, INC.

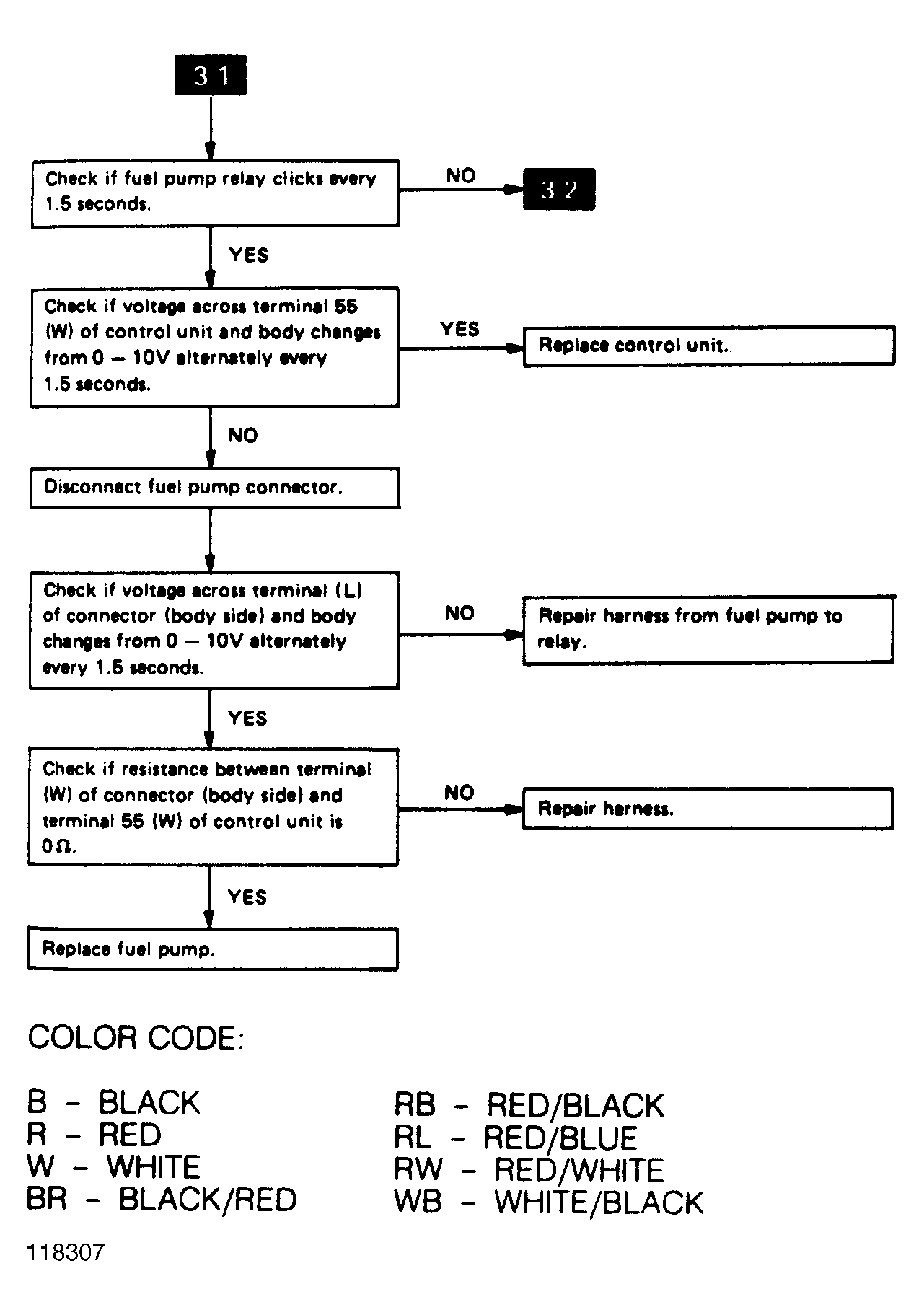

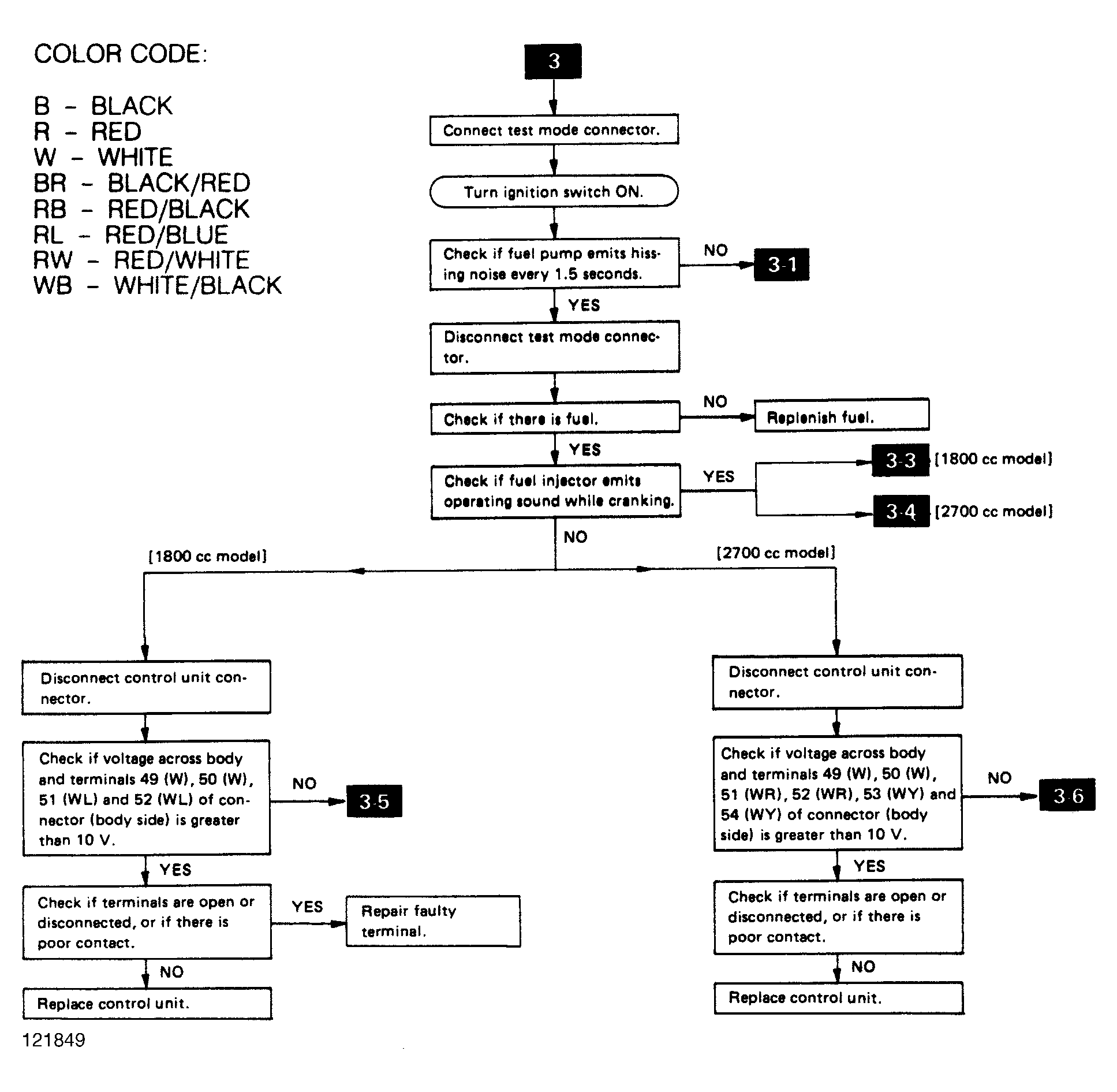

Fig 2: Flow Chart (1 of 5) - XT6 Fuel Pump Circuit

Courtesy of SUBARU OF AMERICA, INC.

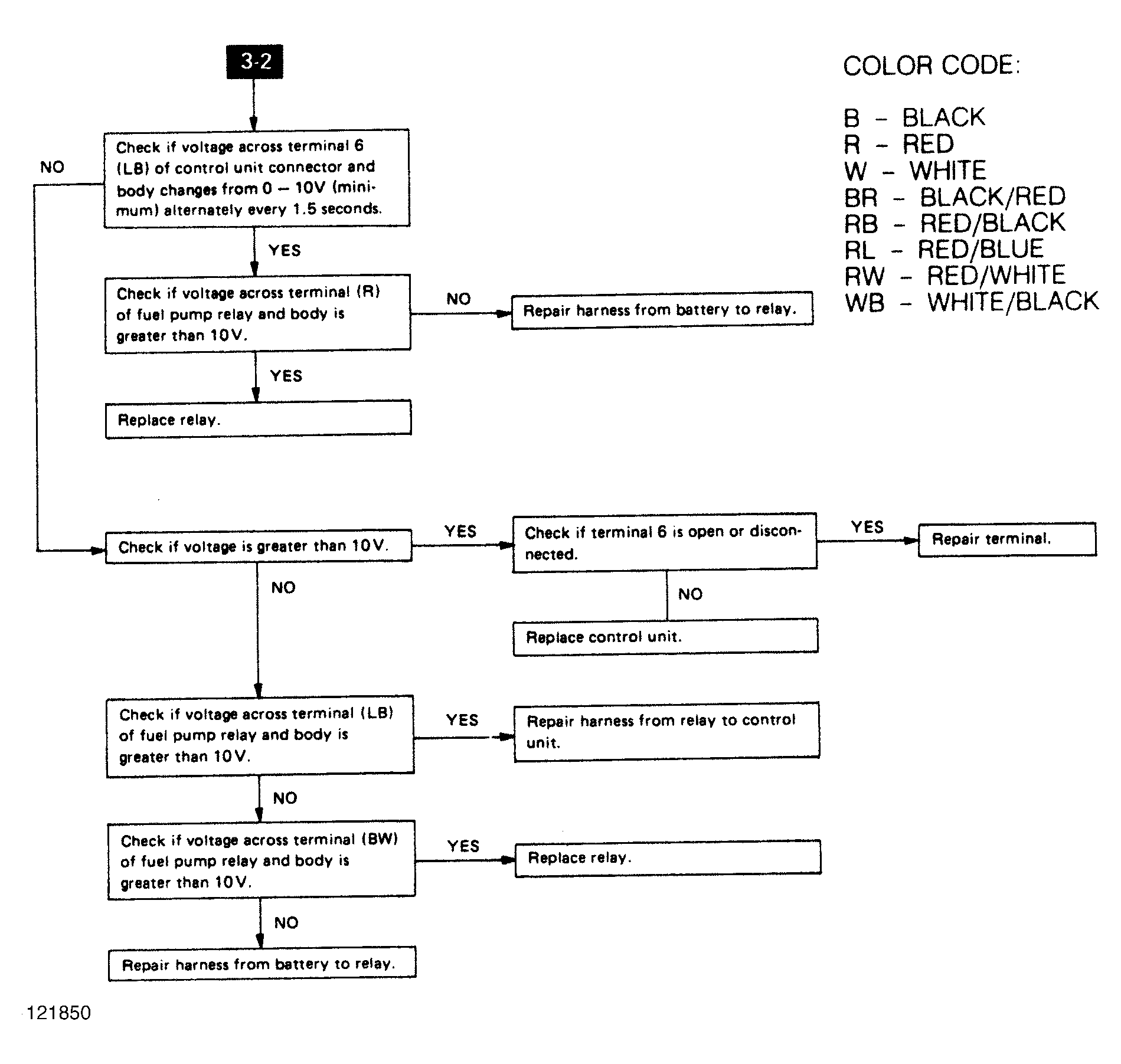

Fig 3: Flow Chart (2 of 5) - XT6 Fuel Pump Circuit

Courtesy of SUBARU OF AMERICA, INC.

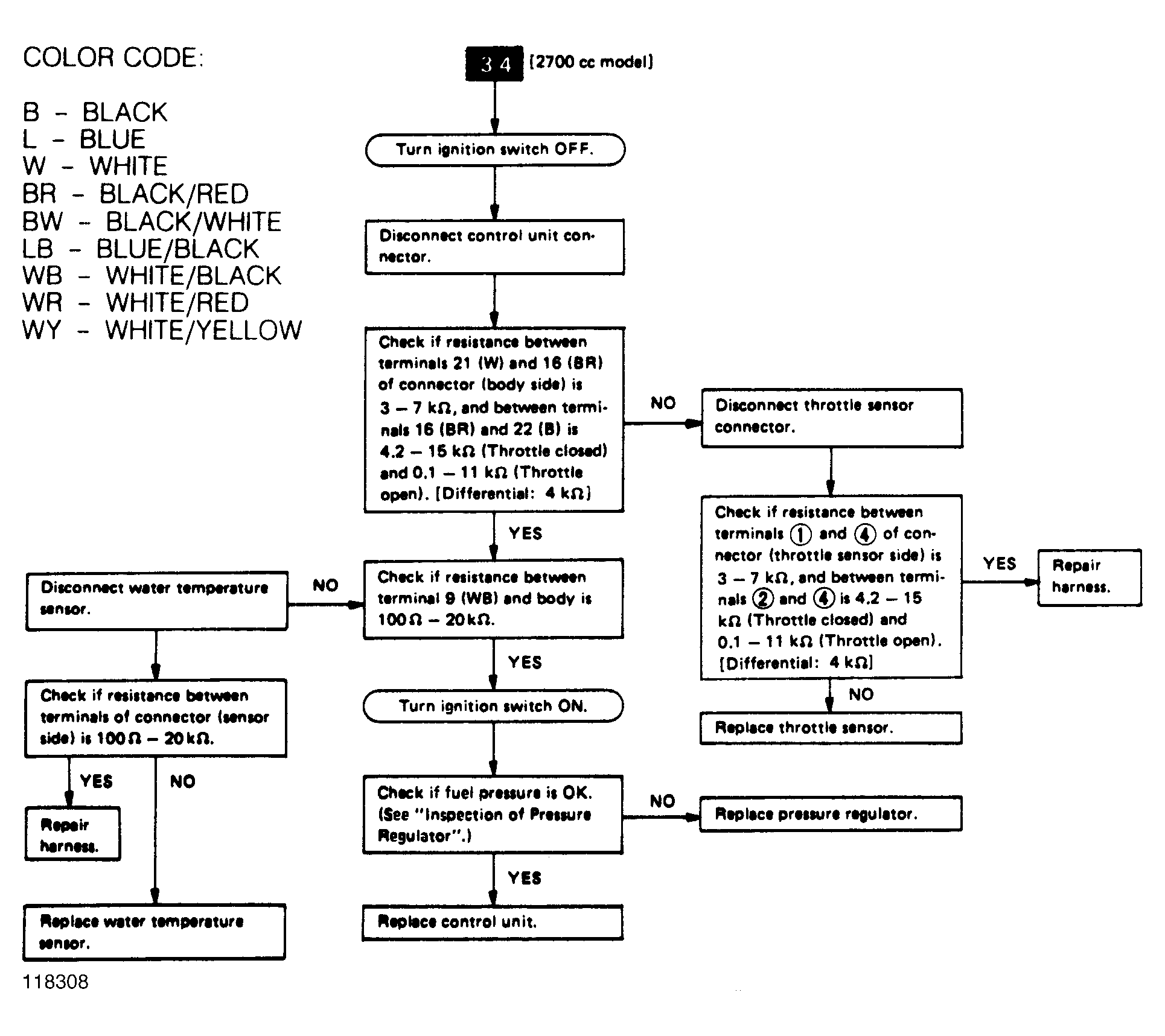

Fig 4: Flow Chart (3 of 5) - XT6 Fuel Pump Circuit

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Flow Chart (4 of 5) - XT6 Fuel Pump Circuit

Courtesy of SUBARU OF AMERICA, INC.

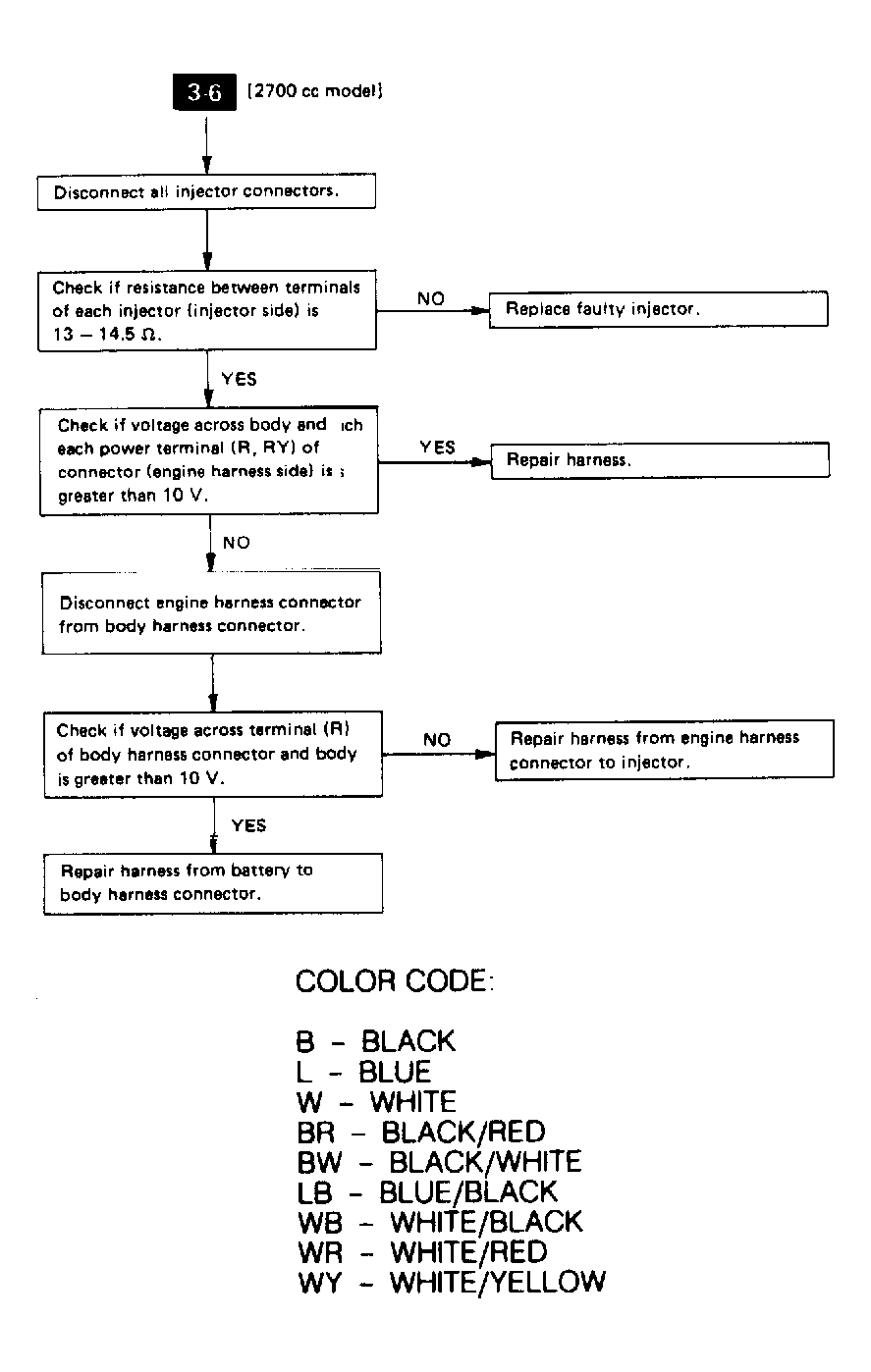

Fig 6: Flow Chart (5 of 5) - XT6 Fuel Pump Circuit

Courtesy of SUBARU OF AMERICA, INC.
