Ignition Control System Tests

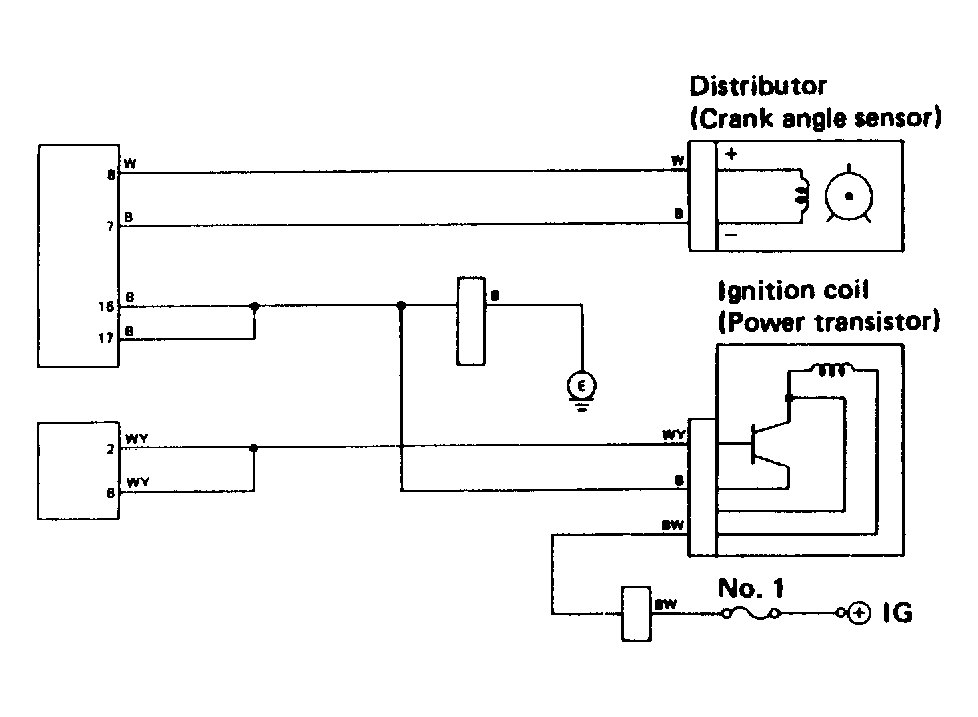

Fig 1: Justy Ignition Control System Test, Schematic

Courtesy of SUBARU OF AMERICA, INC.

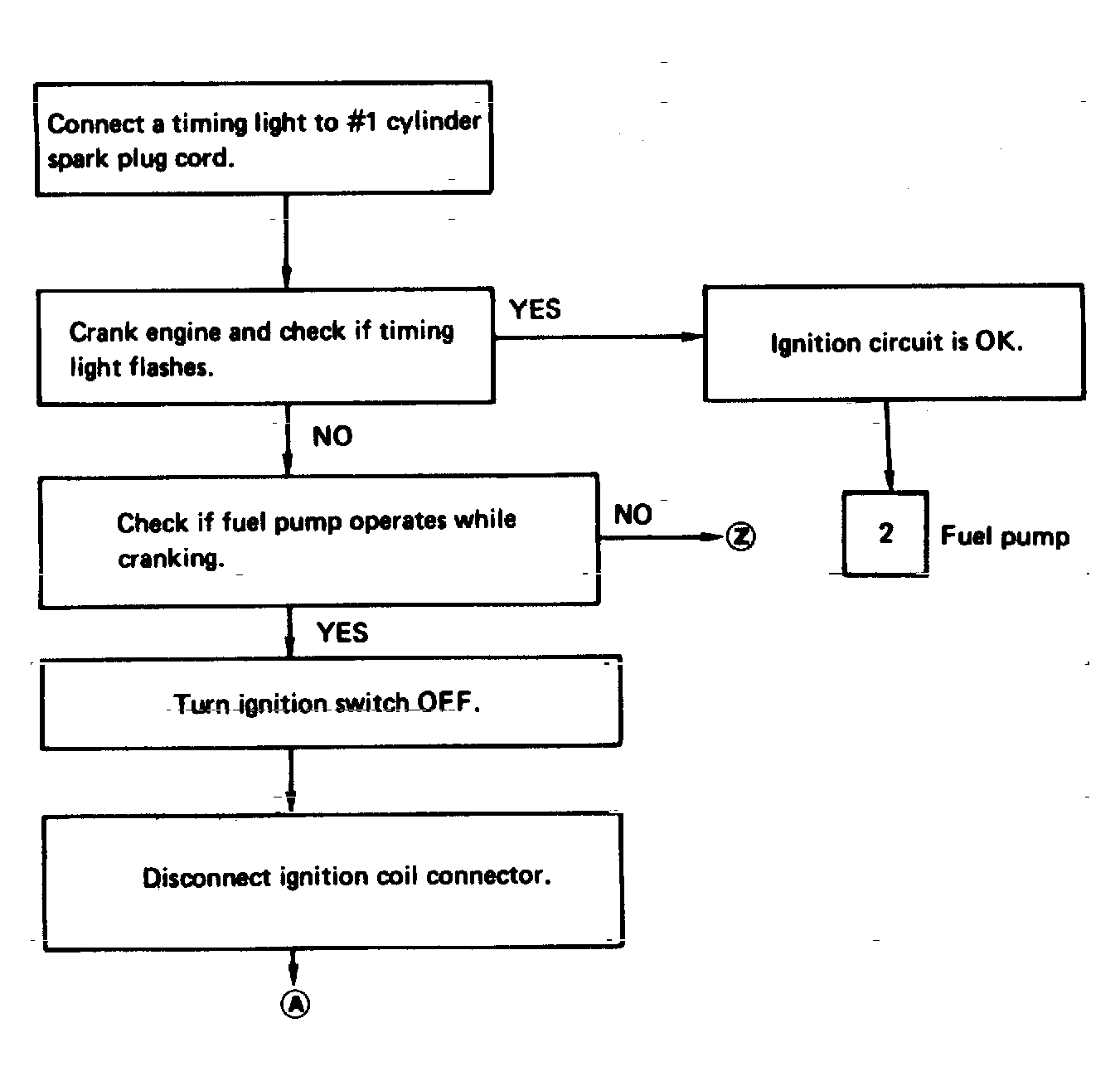

Fig 2: Justy Ignition Control System Test, Flow Chart (1 of 3)

Courtesy of SUBARU OF AMERICA, INC.

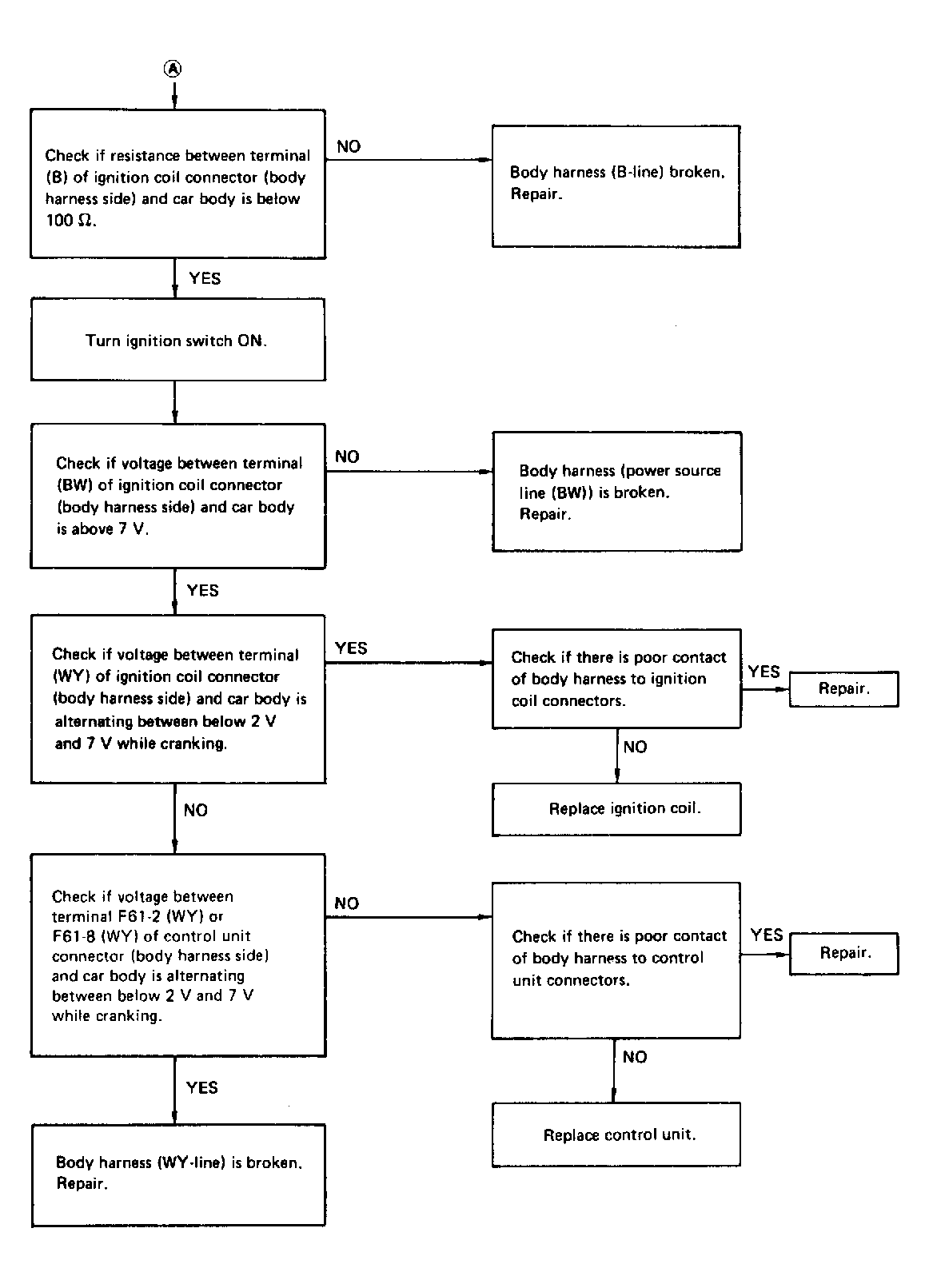

Fig 3: Justy Ignition Control System Test, Flow Chart (2 of 3)

Courtesy of SUBARU OF AMERICA, INC.

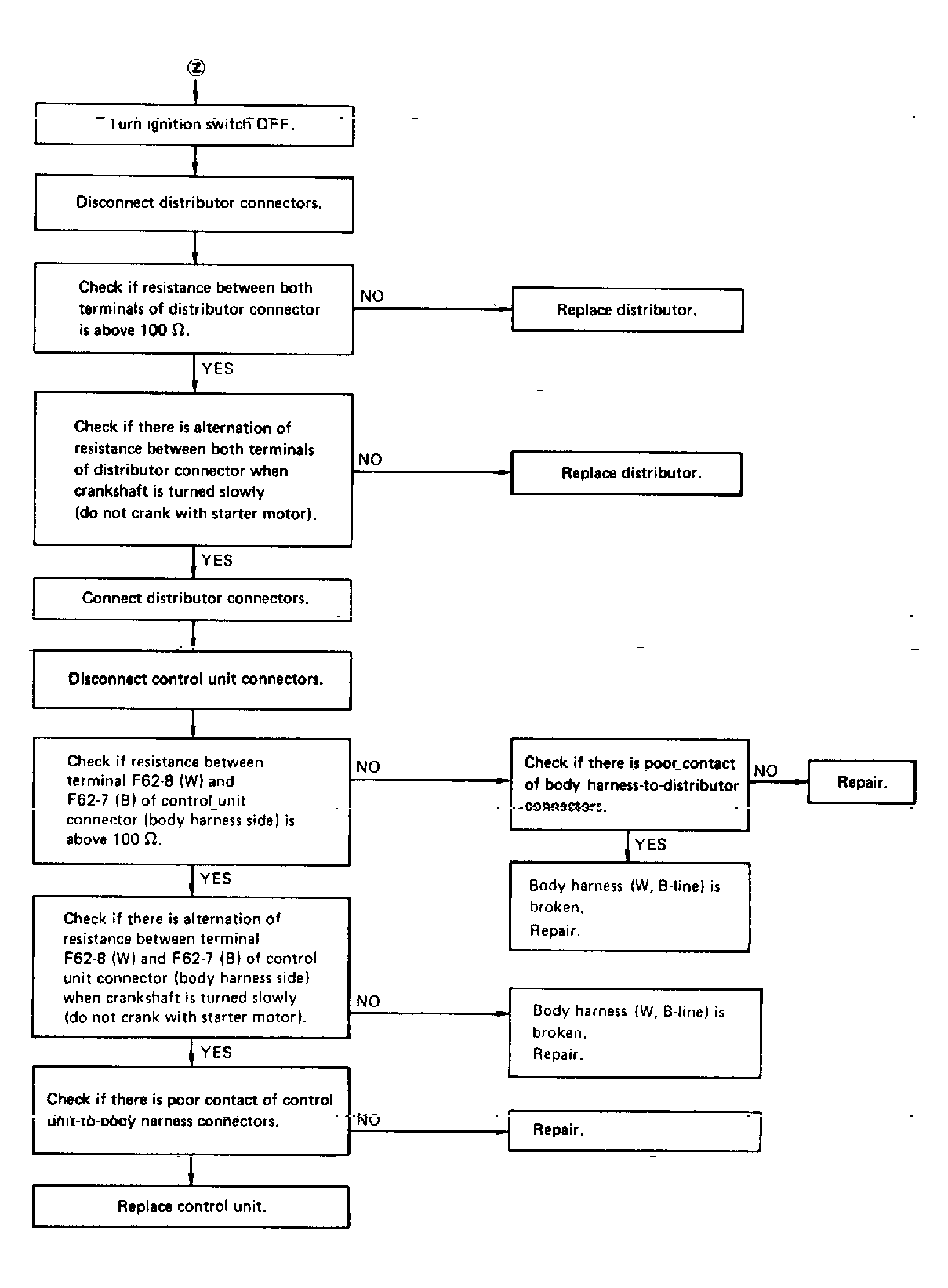

Fig 4: Justy Ignition Control System Test, Flow Chart (3 of 3)

Courtesy of SUBARU OF AMERICA, INC.
