Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

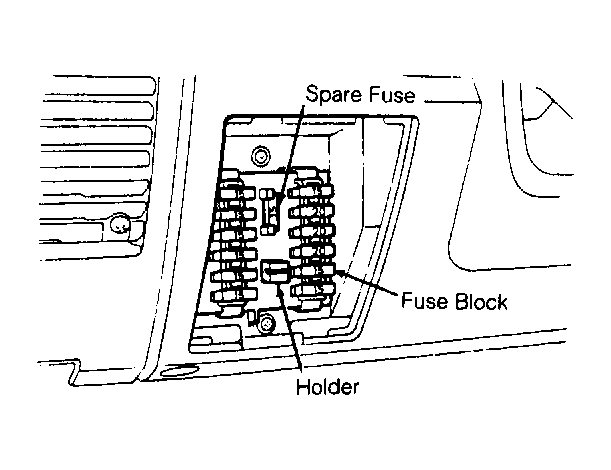

Fuse Block In dash, to left of steering column. See Figure .

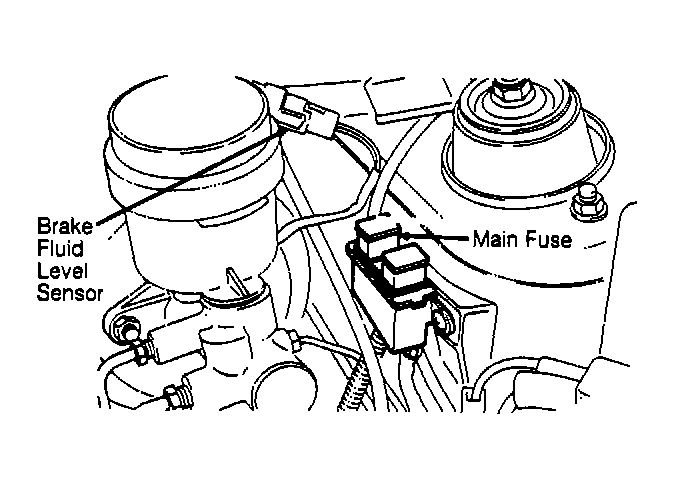

Main Fuse Attached to left strut tower, next to brake master cylinder. See Figure .
