Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

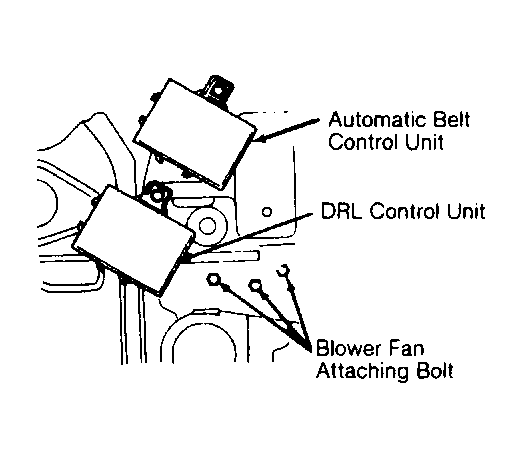

| Automatic Seat Belt Control Unit | Under right dash. See Figure . |
| DRL Control Unit | Under right dash. See Figure . |

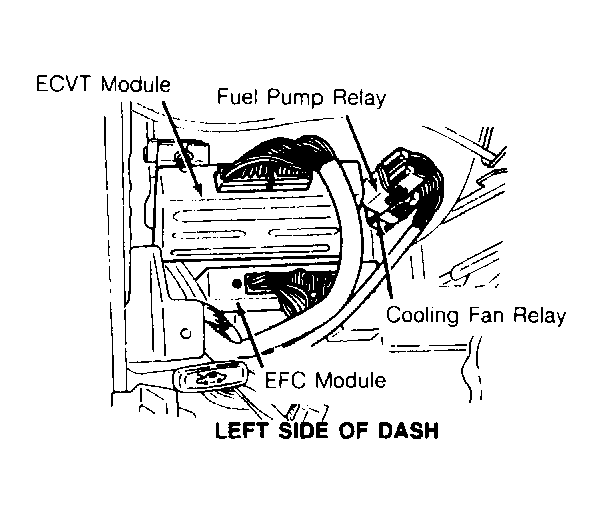

| Elect. Fuel Control (EFC) Module | Behind dash, on driver's side. See Figure . |
| Electronic Control Variable Transmission (ECVT) Module | Behind driver's side of dash. See Figure . |

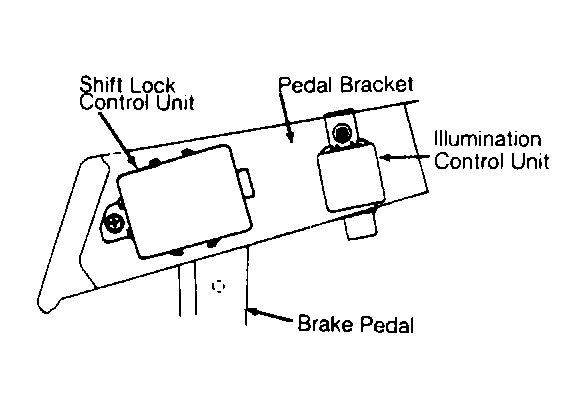

| Illumination Control Unit | On brake pedal bracket. See Figure . |

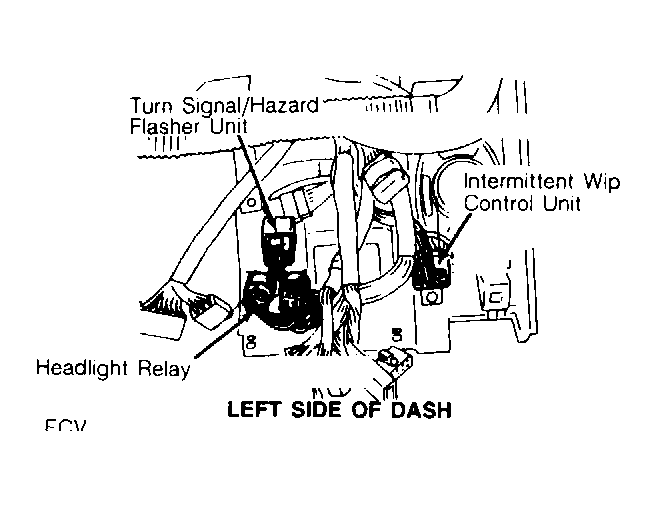

| Intermittent Wiper Control Unit | Behind dash, to left of steering column. See Figure . |
| Shift Lock Control Unit | On brake pedal bracket. See Figure . |
