Repair and Diagnosis: Electrical: Starter: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. Refer to Fig 1 and Fig 2 for exploded views of starters.

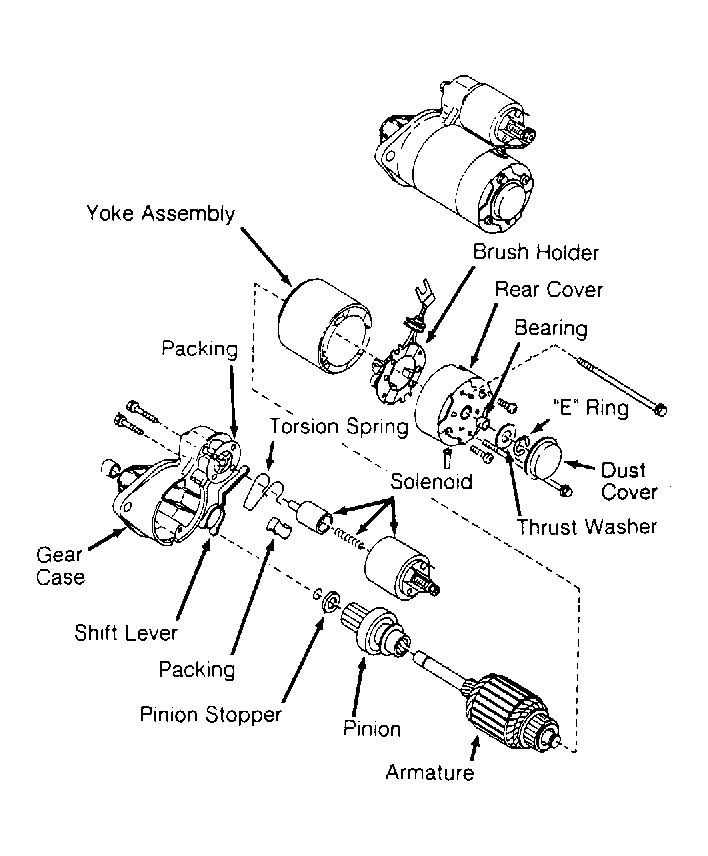

Fig 1: Exploded View of Nippondenso Direct Drive Starter (M/T)

Courtesy of SUBARU OF AMERICA, INC.

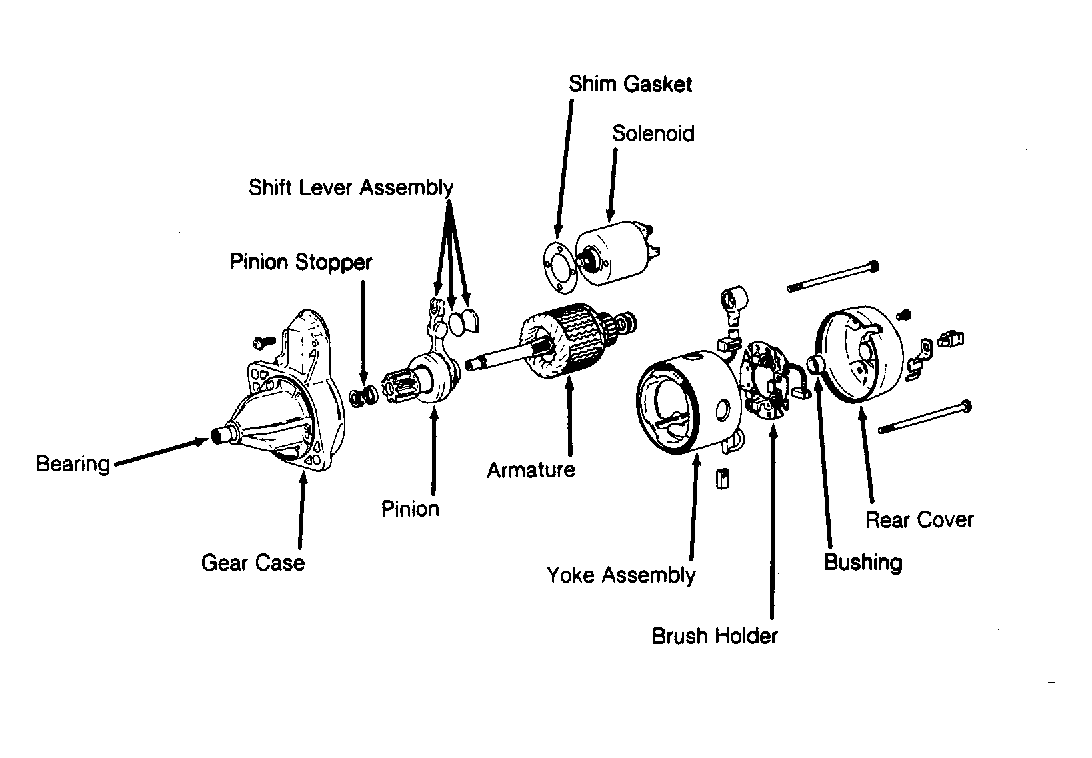

Fig 2: Exploded View of Nippondenso Direct Drive Starter (A/T)

Courtesy of SUBARU OF AMERICA, INC.
