Float Drop Adjustment

After checking float level, gently lift float until float stop contacts air horn projection. Hold float in this position. Measure clearance between float tab and needle valve. Adjust by bending float stop. See CARBURETOR ADJUSTMENT SPECIFICATIONS  table. See Fig 1 .

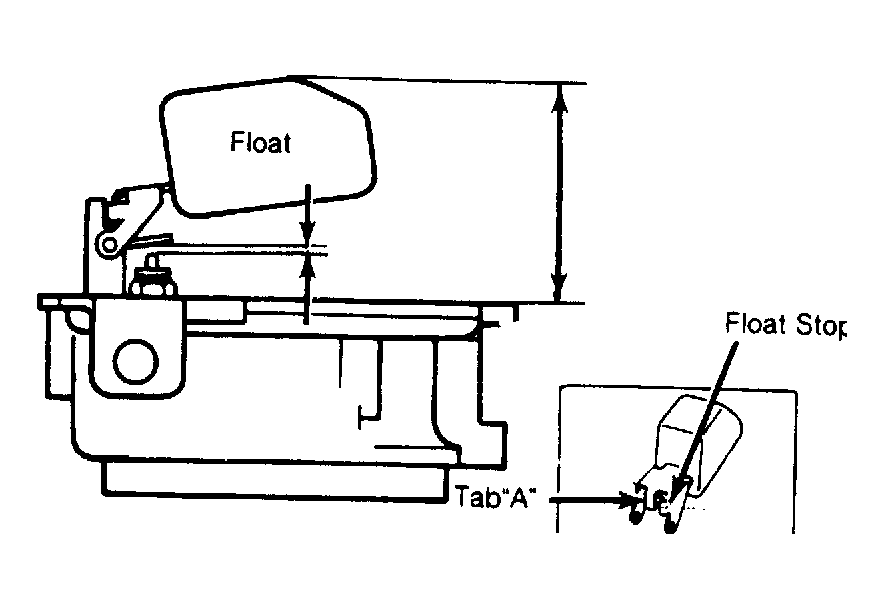

Fig 1: Adjusting Float Drop

Courtesy of SUBARU OF AMERICA, INC.
