Fuel Tank (Legacy): Installation
NOTE:
Installation is in the reverse order of removal. Observe the following.
- When installing the fuel tank, have a helper hold the fuel tank while connecting the hoses and harness.
- Before tightening band mounting bolts, make sure hoses, harnesses, etc. are not caught between the fuel tank and the body.

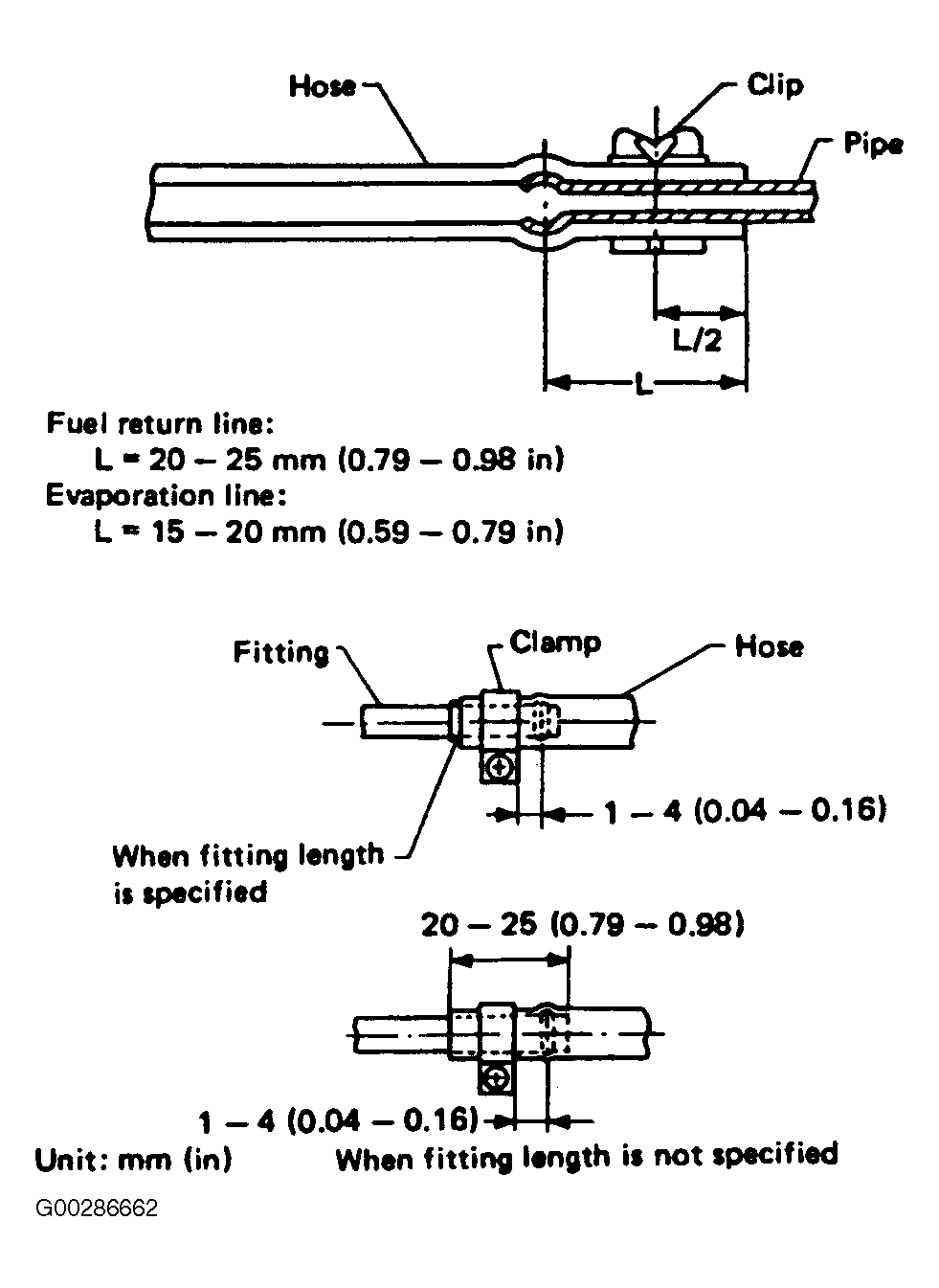

- Install hose and tube hold down clips at all positions indicated in the figure. See Fig 1 .
