Code 24: Idle Up Solenoid
Fig 1: Wiring Schematic - Code 24: Idle Up Solenoid
Courtesy of SUBARU OF AMERICA, INC.

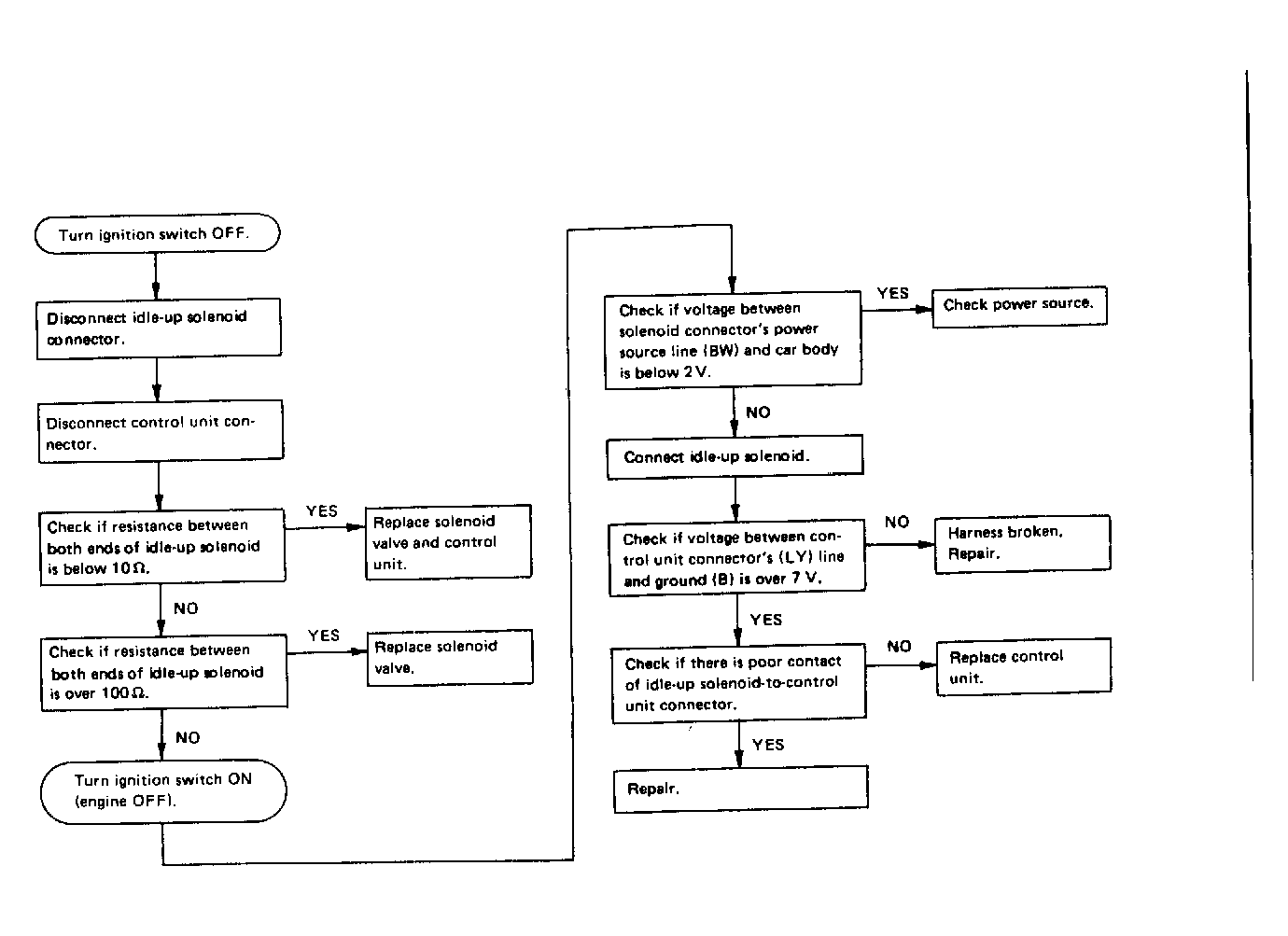

Fig 2: Flow Chart - Code 24: Idle Up Solenoid
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
