Code 32: Oxygen (O2) Sensor

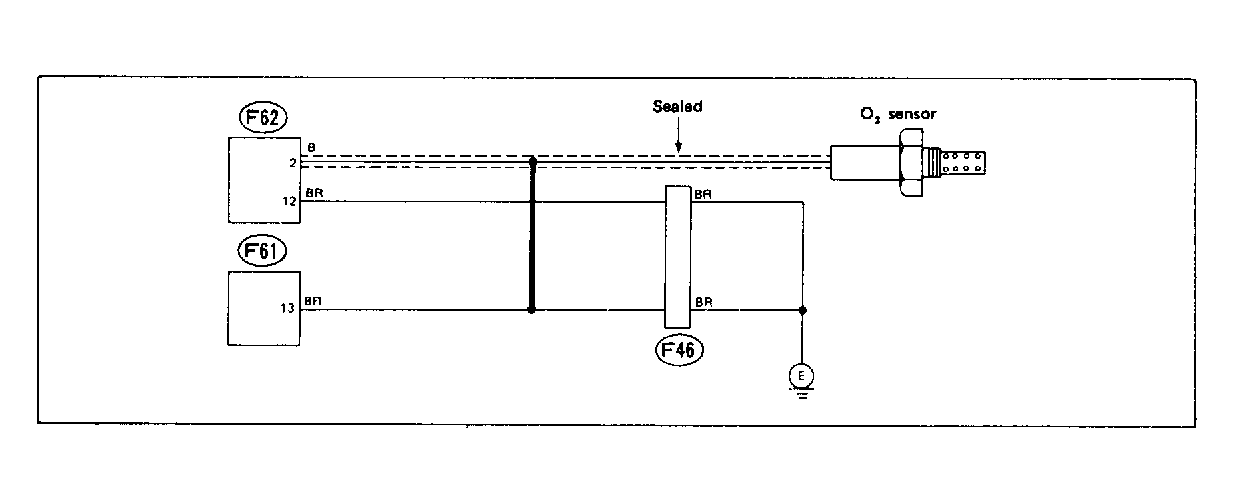

Fig 1: Wiring Schematic - Code 32: Oxygen Sensor
G118323Courtesy of SUBARU OF AMERICA, INC.

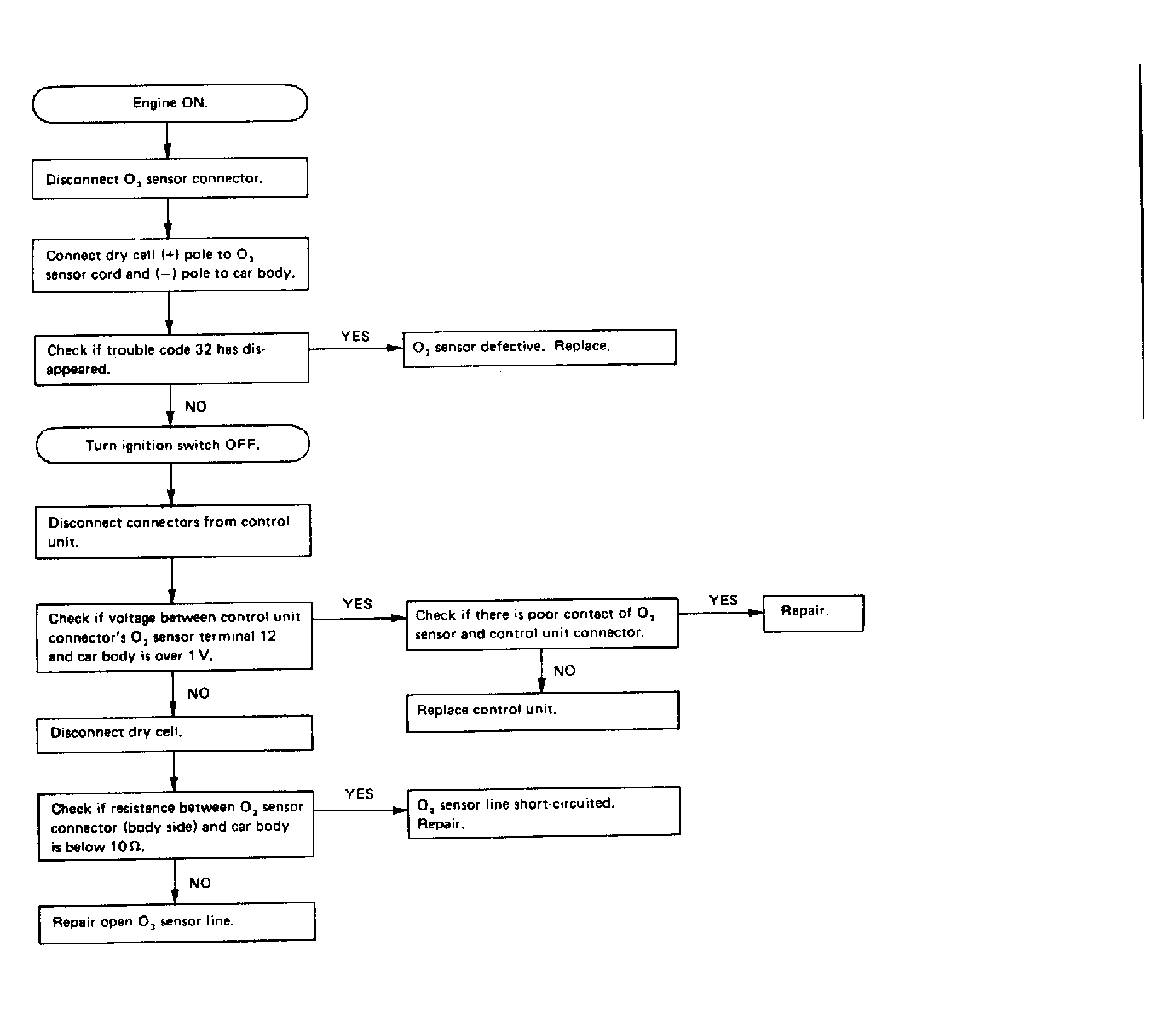

Fig 2: Flow Chart - Code 32: Oxygen Sensor
G121928Courtesy of SUBARU OF AMERICA, INC.
