D-Check Mode

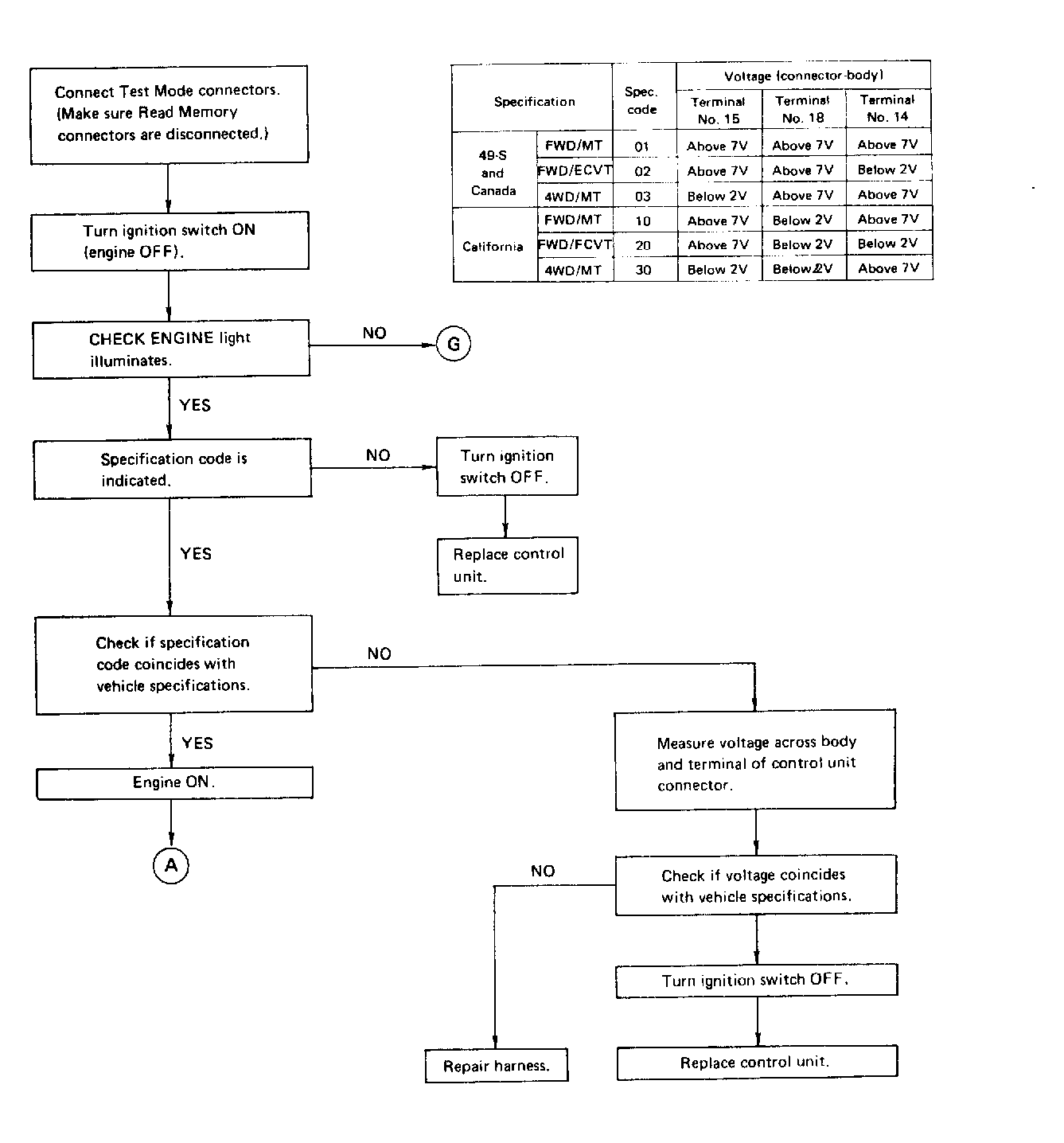

Fig 1: Flow Chart (1 of 2) - D-Check Mode

G118313

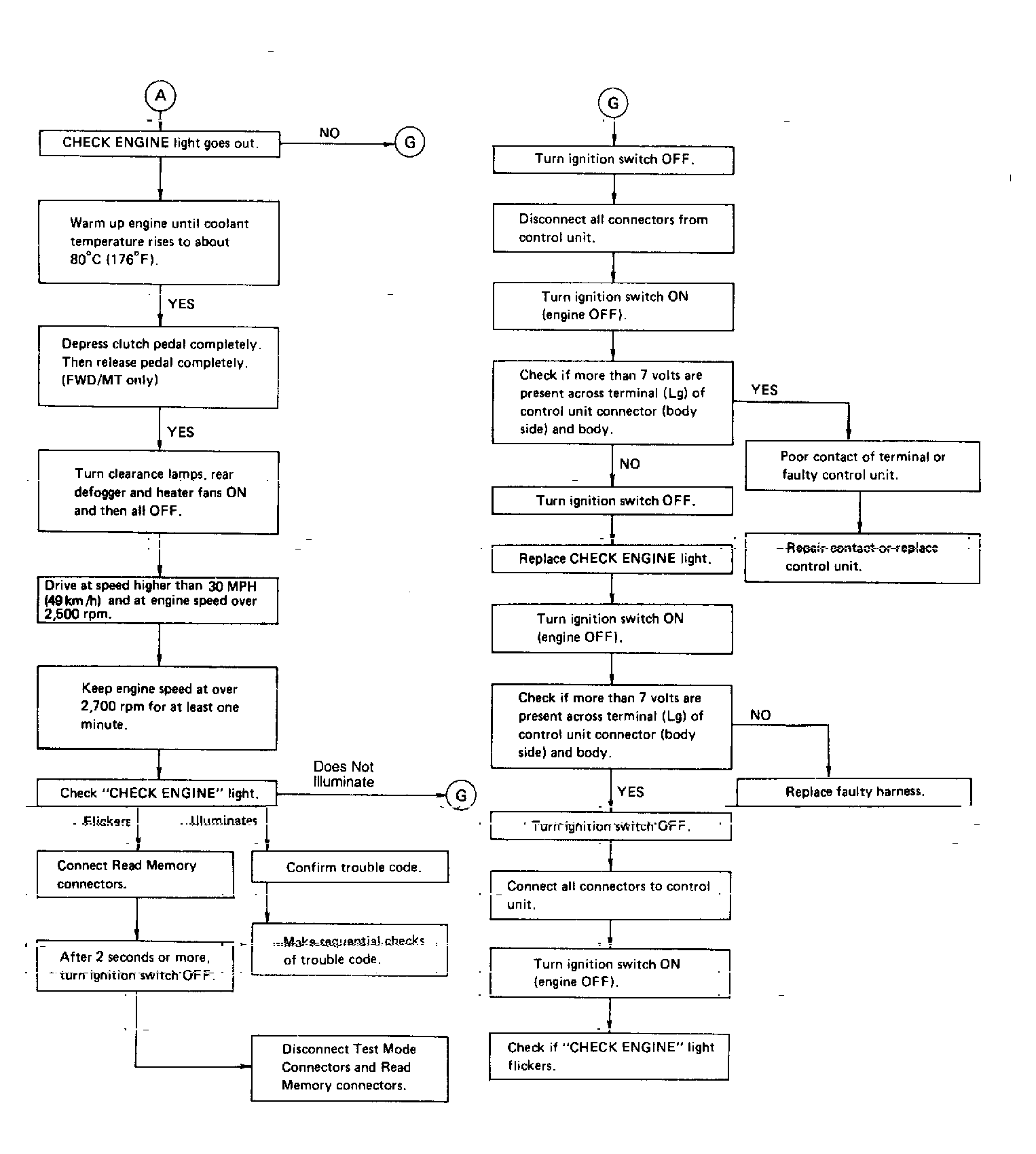

Fig 2: Flow Chart (2 of 2) - D-Check Mode

G118314

D-CHECK MODE (VOLTAGE AT CONNECTOR)

Applic.	Model	Spec. Code	Terminal No. 15	Terminal No. 15	Terminal No. 15
49-S	FWD/MT	01	Above 7V	Above 7V	Above 7V
and	FWD/ECVT	02	Above 7V	Above 7V	Below 2V
Canada	4WD/MT	03	Below 2V	Above 7V	Above 7V
Calif.	FWD/MT	10	Above 7V	Below 2V	Above 7V
"	FWD/FCVT	20	Above 7V	Below 2V	Below 2V
"	4WD/MT	30	Below 2V	Below 2V	Above 7V
