Code 12: Starter Switch

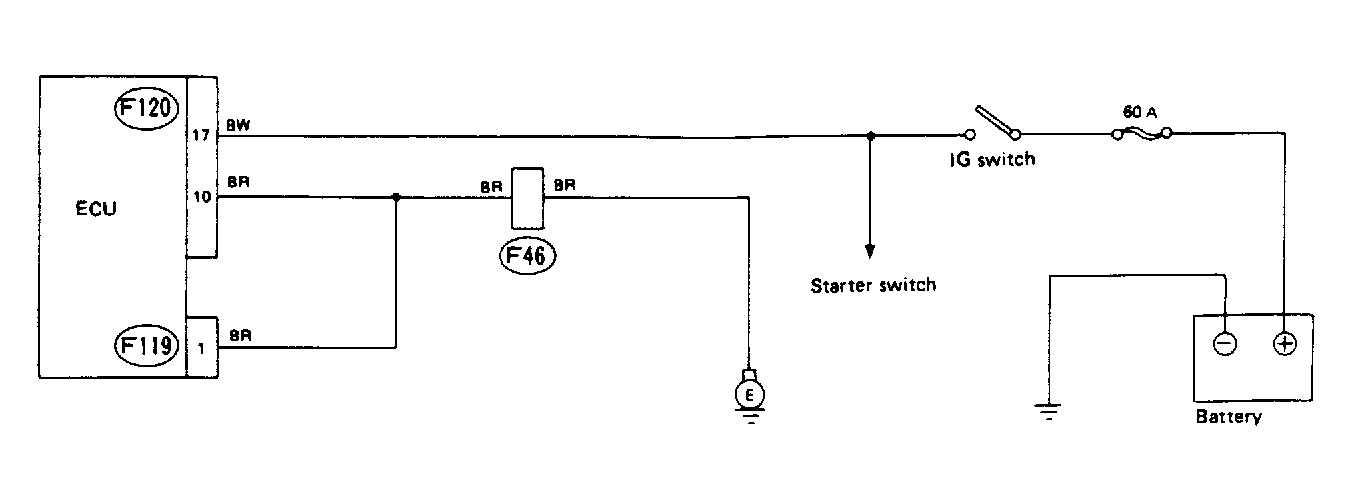

Fig 1: Schematic - Code 12, Starter Switch

G91I18331

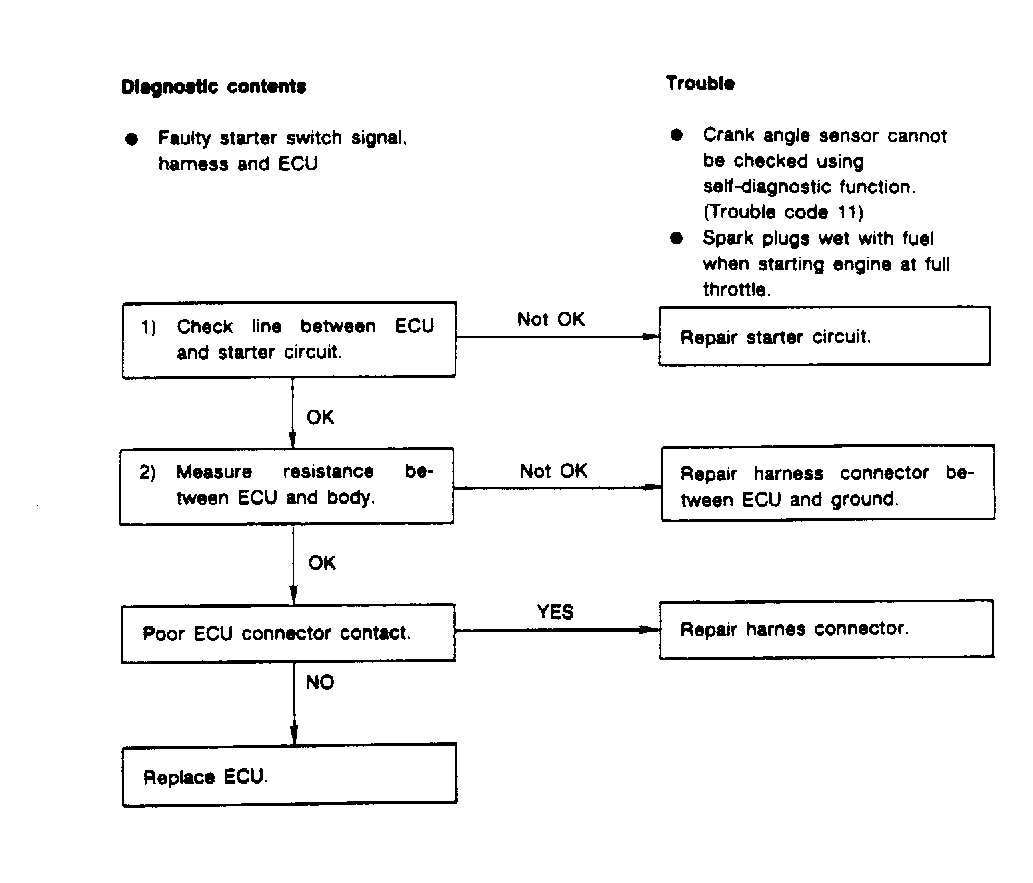

Fig 2: Flow Chart - Code 12, Starter Switch

G90A18770
