Code 26: Air Temperature Sensor

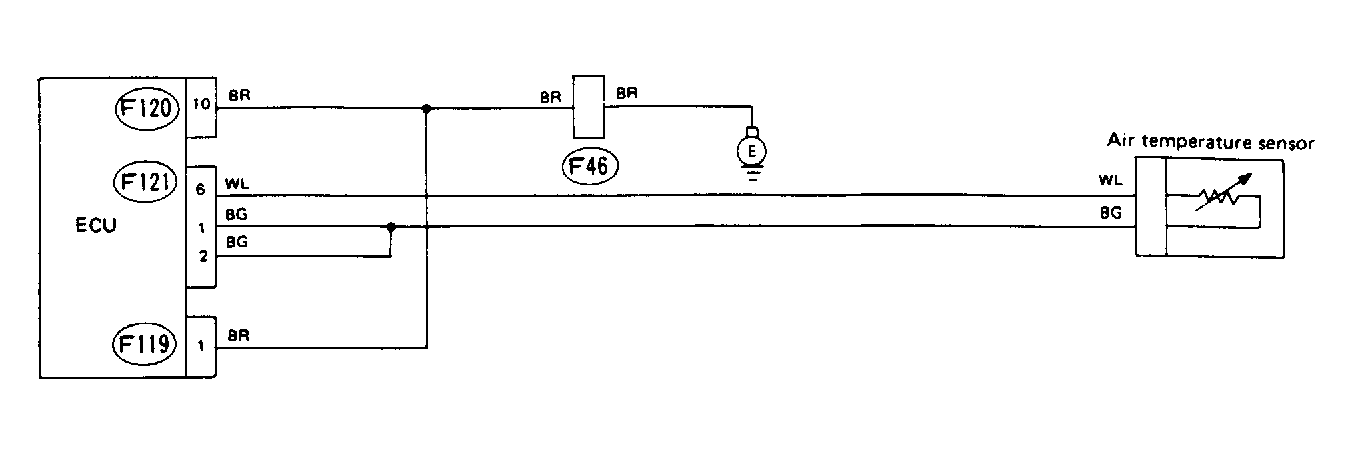

Fig 1: Schematic - Code 26, Air Temperature Sensor
G91E18337

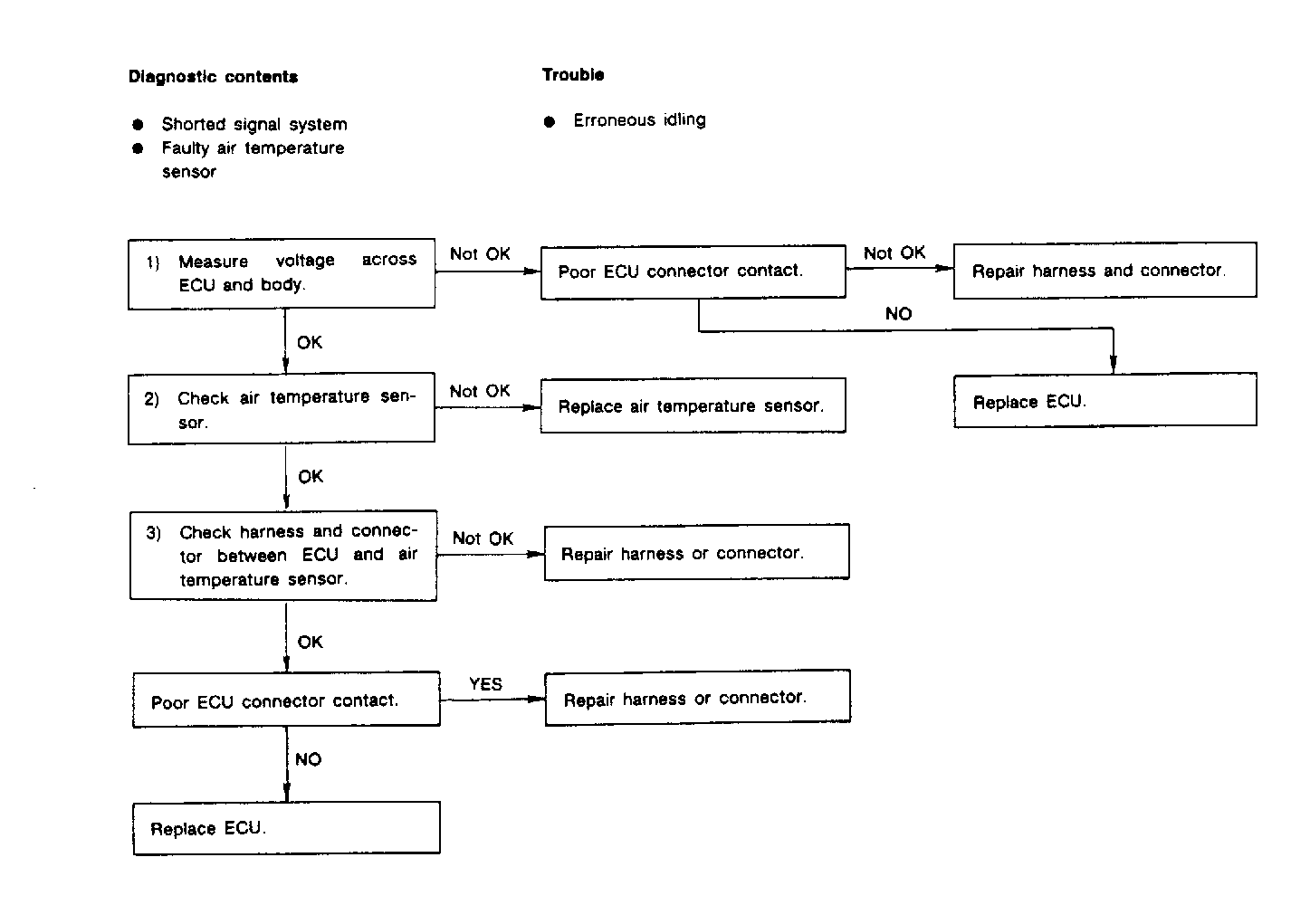

Fig 2: Flow Chart - Code 26, Air Temperature Sensor
G90G18776
