Code 33: Vehicle Speed Sensor

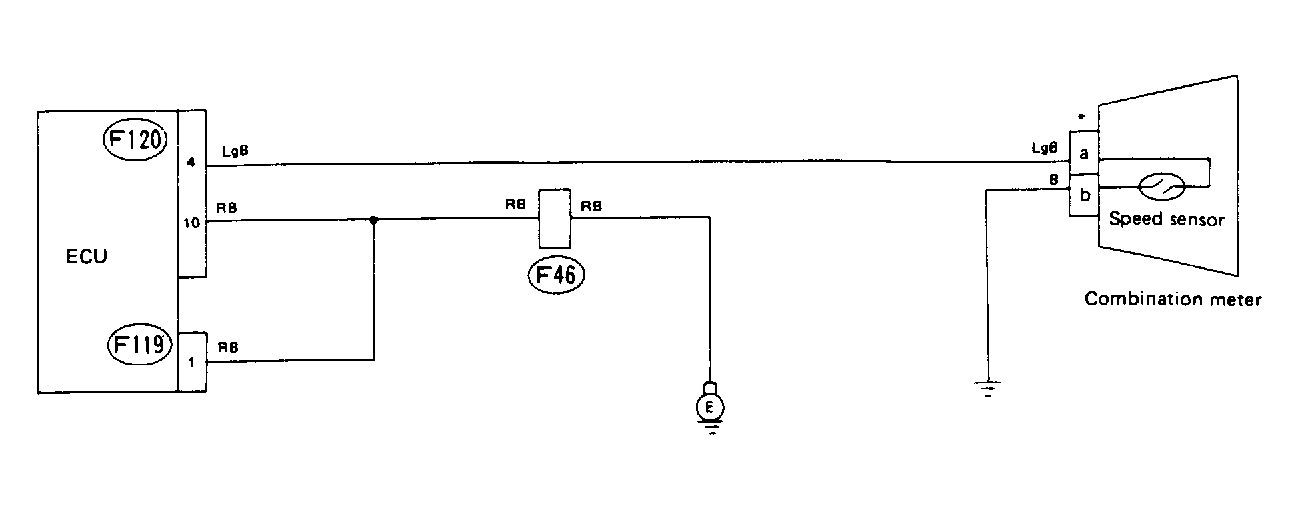

Fig 1: Schematic - Code 33, Vehicle Speed Sensor

G91G18339

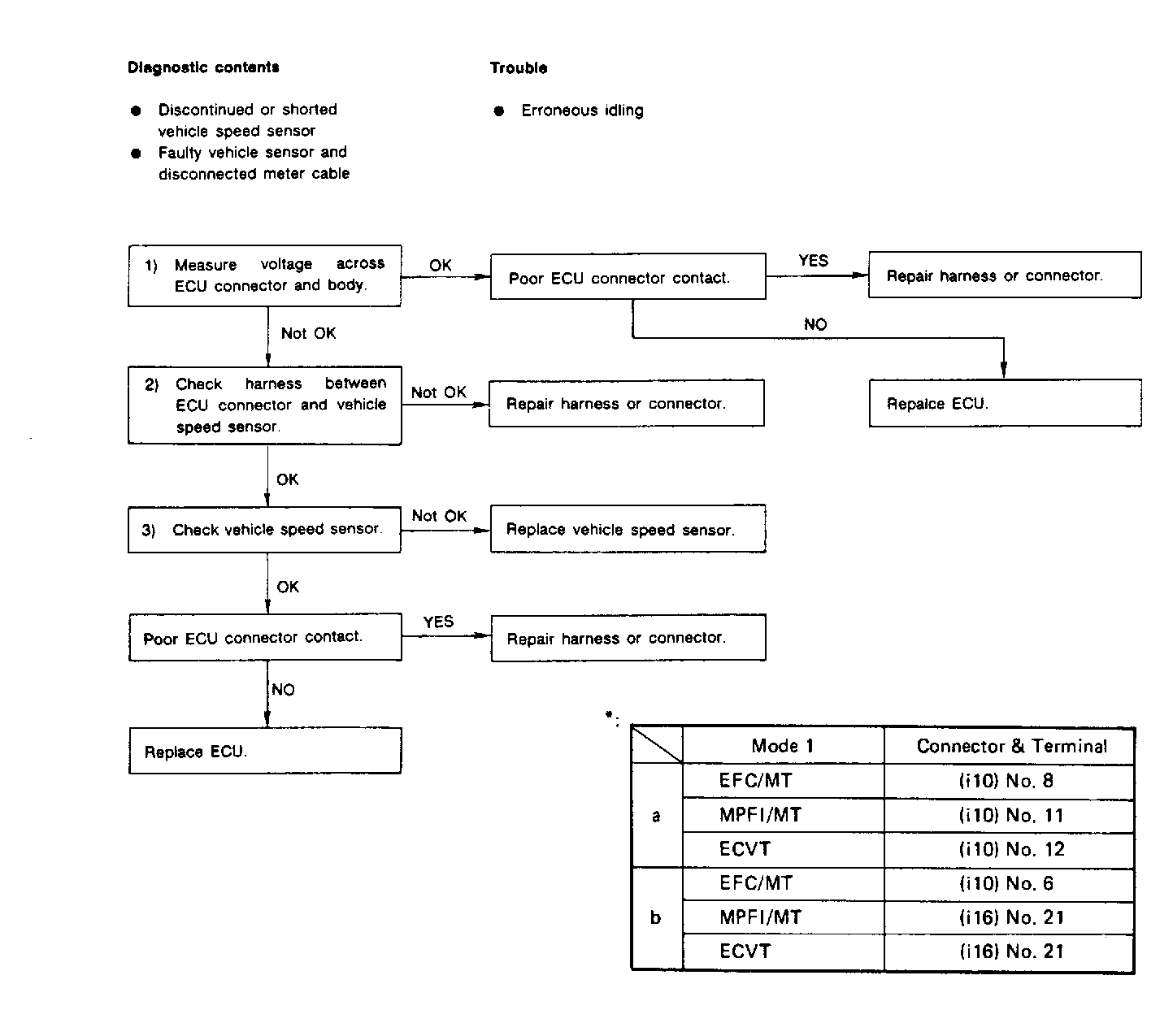

Fig 2: Flow Chart - Code 33, Vehicle Speed Sensor

G90I18778
