Code 43: Throttle Switch

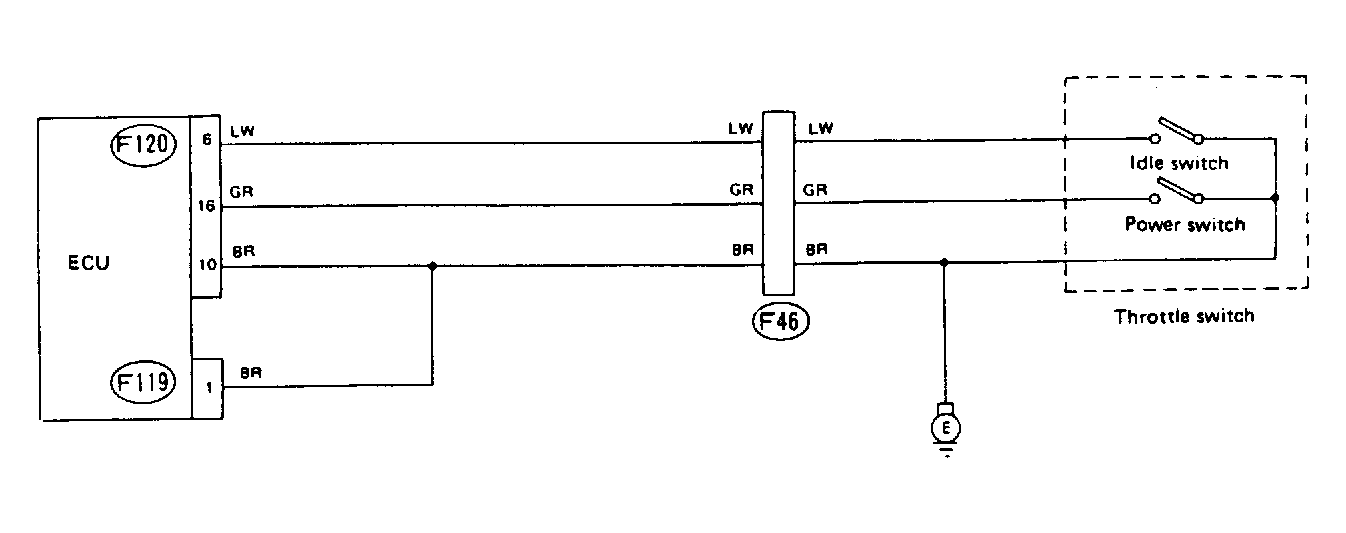

Fig 1: Schematic - Code 43, Throttle Switch

G91C18343

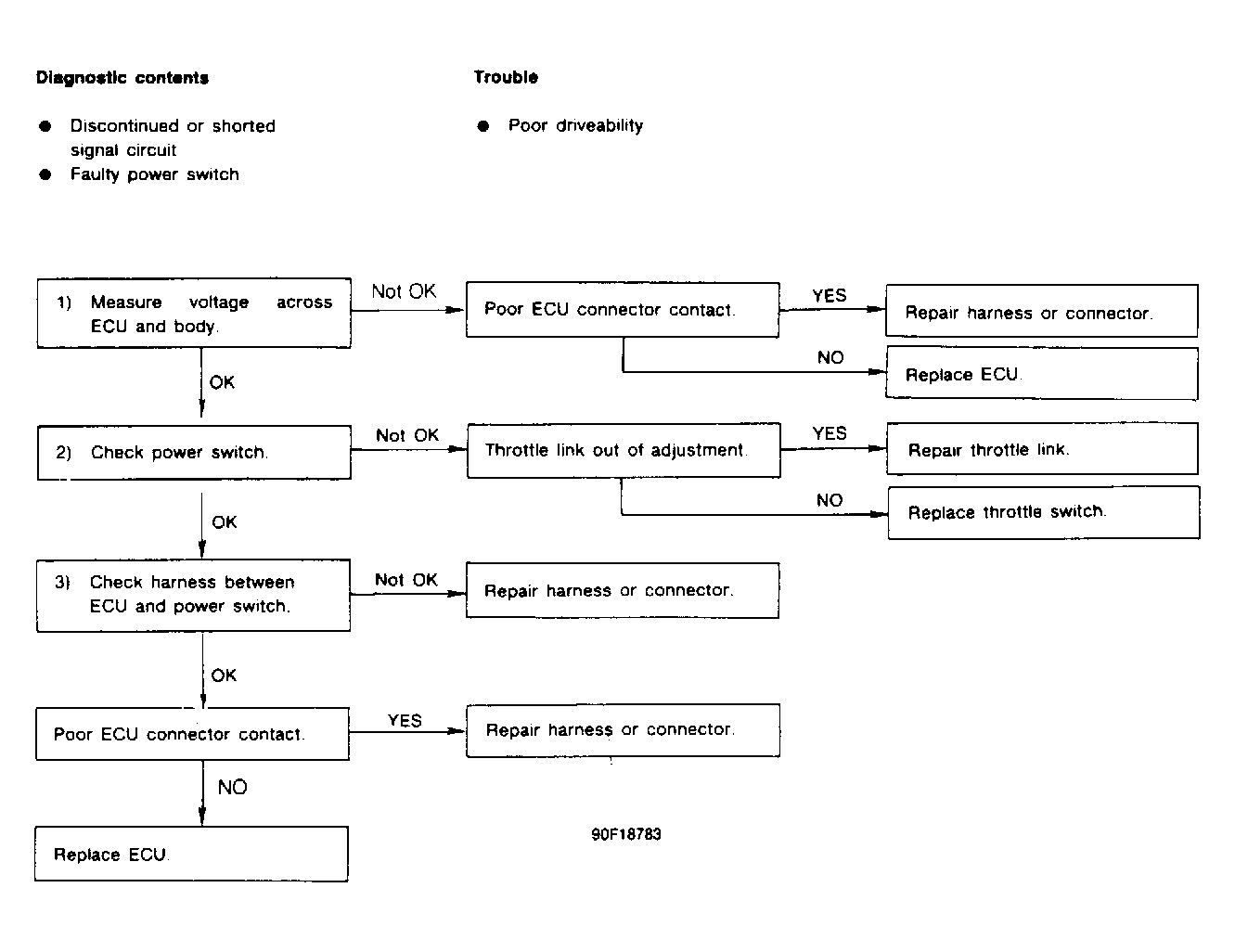

Fig 2: Flow Chart - Code 43, Throttle Switch

G90F18783
