Code 63: Blower Fan Switch

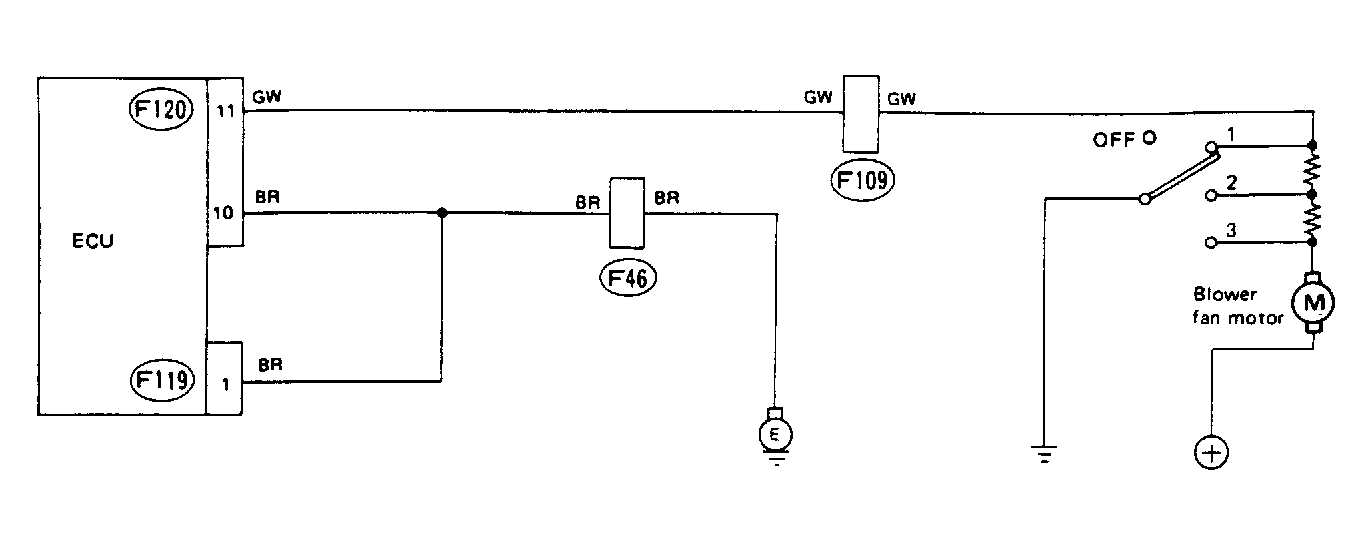

Fig 1: Schematic - Code 63, Blower Fan Switch

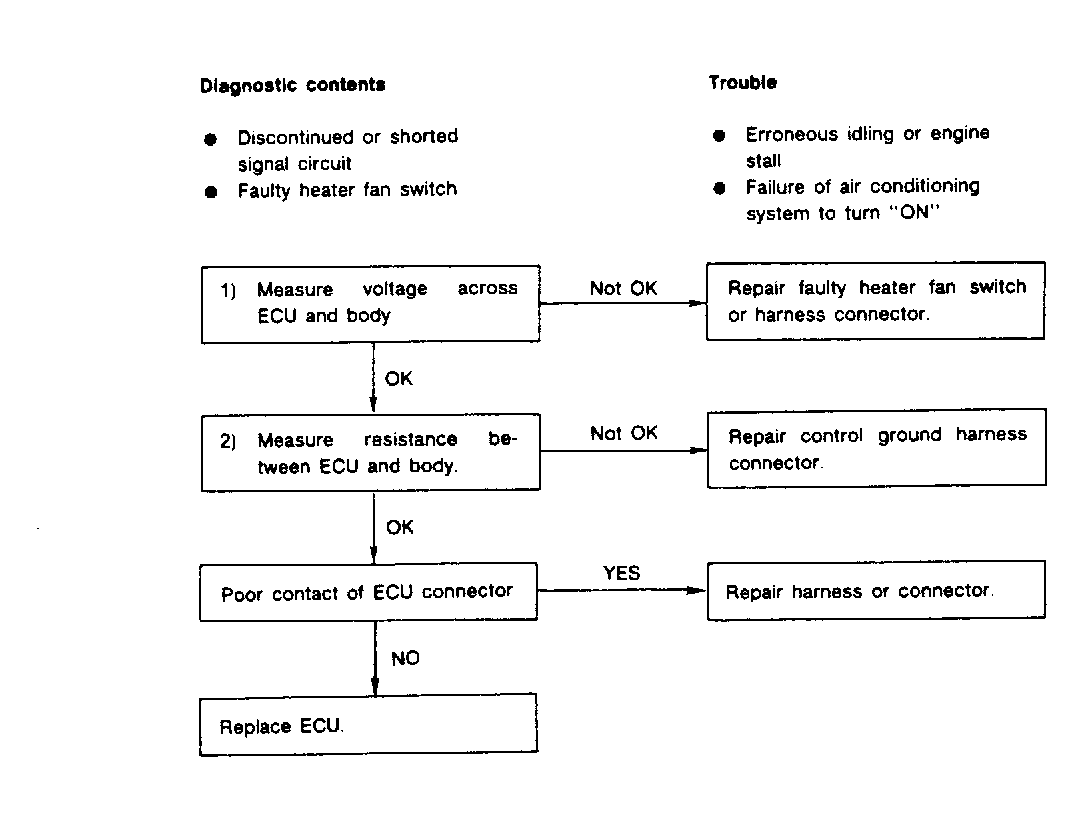

Fig 2: Flow Chart - Code 63, Blower Fan Switch
