Codes 14, 15 & 16: Fuel Injectors

Fig 1: Schematic - Codes 14, 15 & 16, Fuel Injectors
G91A18333

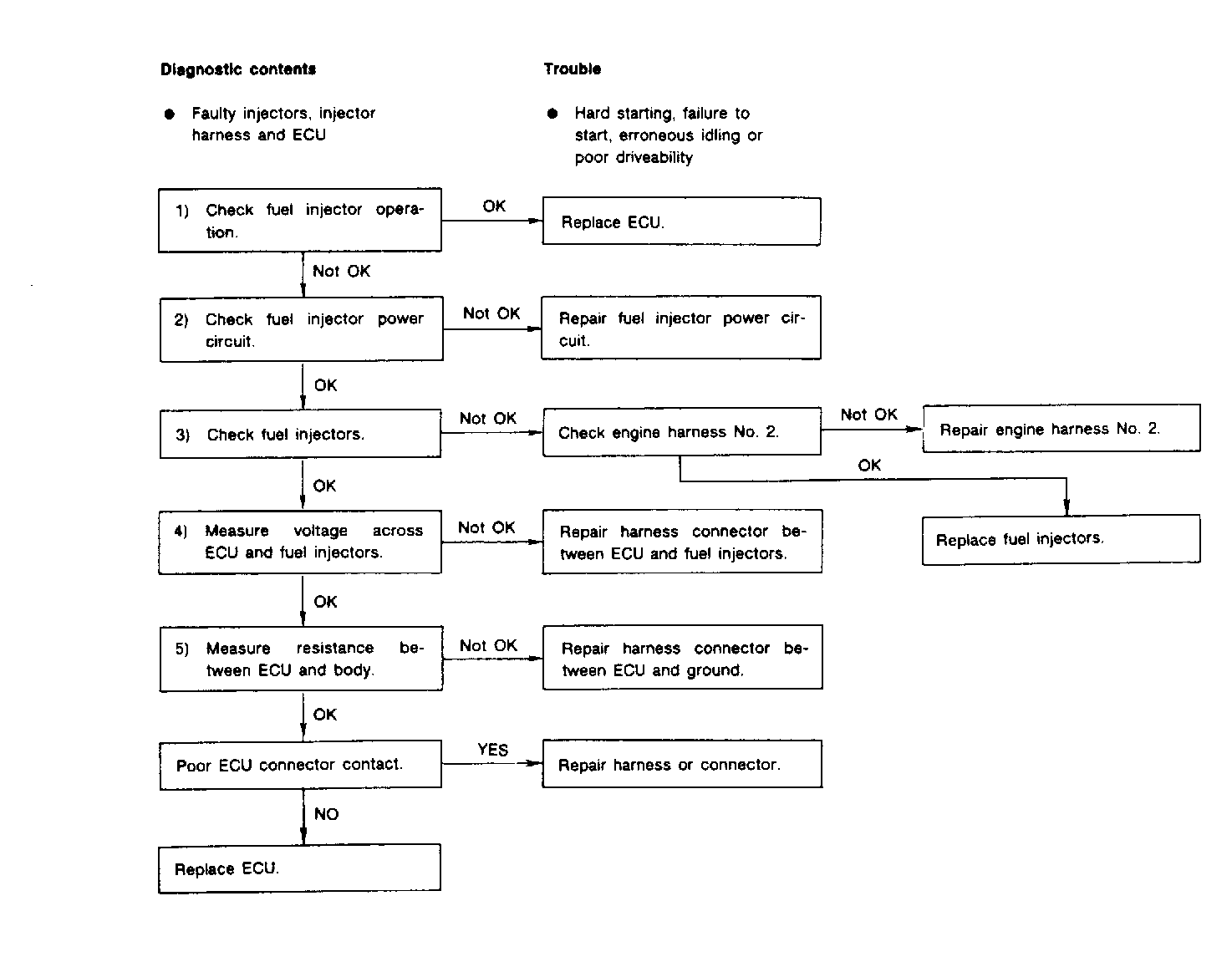

Fig 2: Flow Chart - Codes 14, 15 & 16, Fuel Injectors
G90C18772
