Fuel Pump Circuit Tests

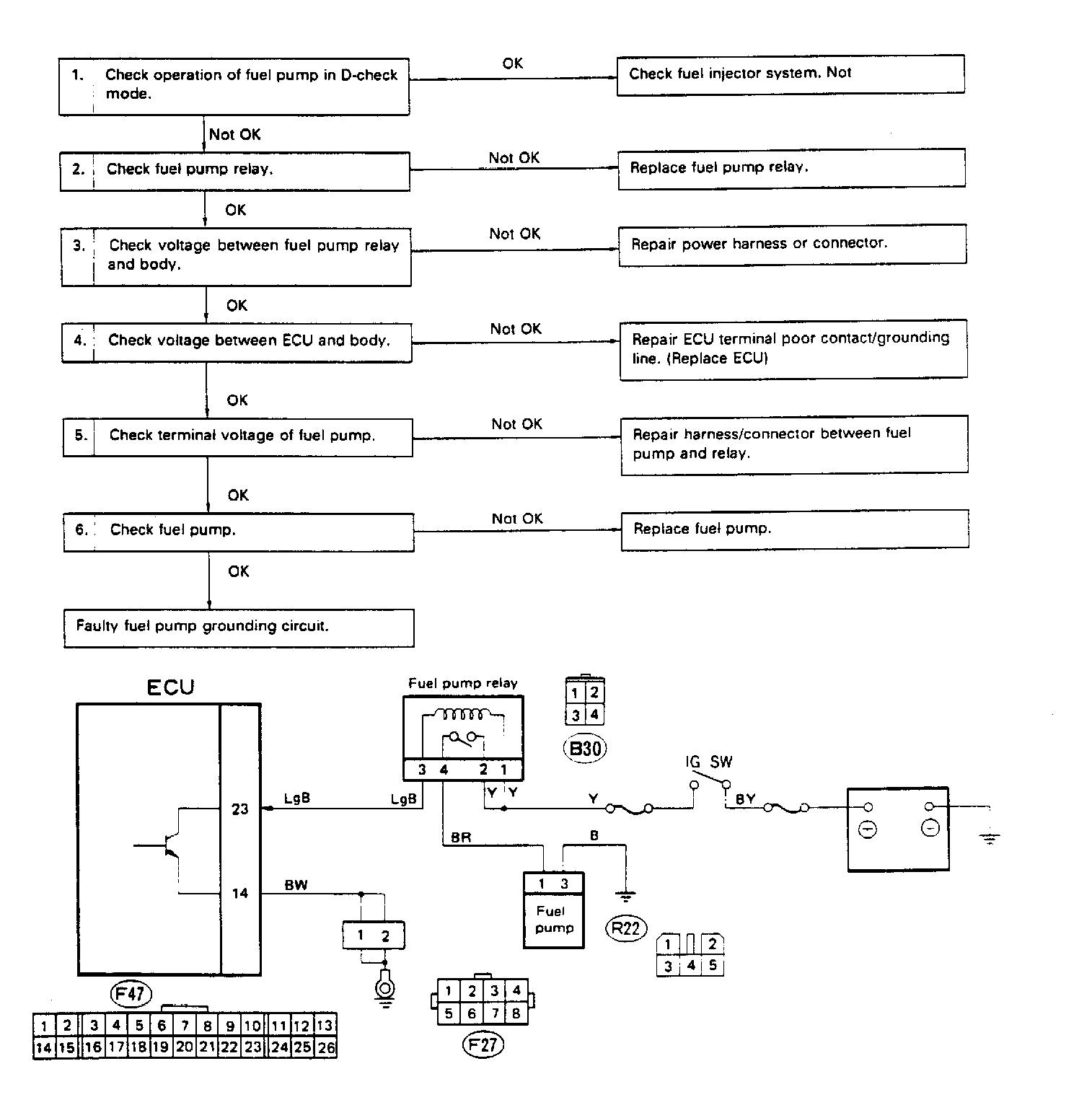

Fig 1: Legacy Fuel Pump Circuit Test
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
